5-2 Conguring Audio Input and Output
5-2-1 Conguring 2/4/5.1/7.1-Channel Audio

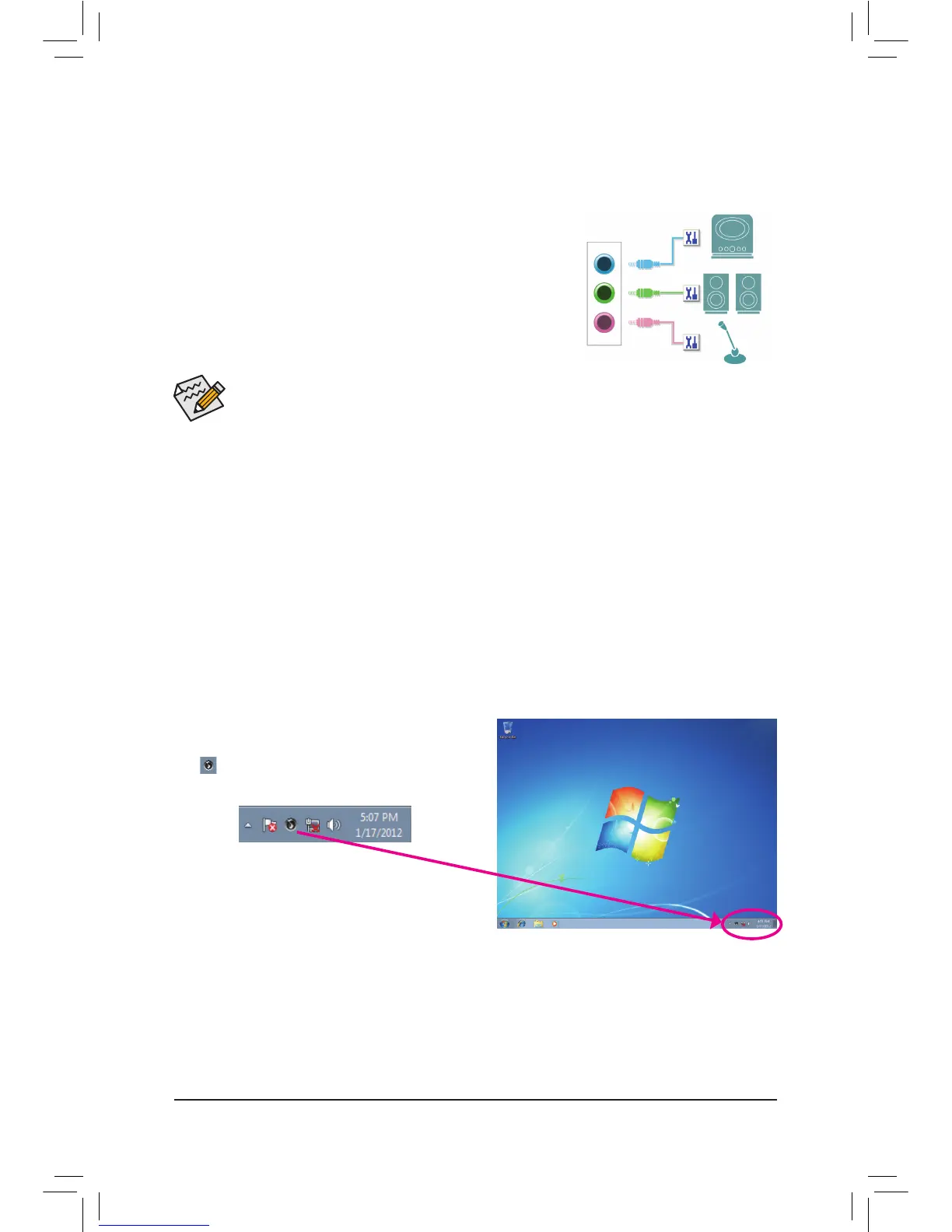

The motherboard provides three audio jacks on the back panel which
support 2/4/5.1/7.1
(Note)
-channel audio. The picture to the right shows the
default audio jack assignments.
The integrated HD (High Definition) audio provides jack retasking
capability that allows the user to change the function for each jack
through the audio driver.
Line In
Front Speaker Out
Mic In
High Denition Audio (HD Audio)
HD Audio includes multiple high quality digital-to-analog converters (DACs). HD Audio features multistreaming
capabilities that allow multiple audio streams (in and out) to be simultaneously processed. For example, users
can listen to MP3 music, have an Internet chat, make a telephone call over the Internet, and etc. all at the
same time.
A. Conguring Speakers
(The following instructions use Windows 7 as the example operating system.)
To install a microphone, connect your microphone to the Mic in jack and manually congure the •
jack for microphone functionality.
To congure 7.1-channel audio, you have to retask one of the audio jacks to be Side speaker out •
through the audio driver.
Audio signals will be present on both of the front and back panel audio connections simultaneously. •
If you want to mute the back panel audio (only supported when using an HD front panel audio
module), refer to instructions on page 90.
(Note) 2/4/5.1/7.1-Channel Audio Congurations:
Refer to the following for multi-channel speaker congurations.
2-channel audio: Headphone or Line out. •
4-channel audio: Front speaker out and Rear speaker out. •
5.1-channel audio: Front speaker out, Rear speaker out, and Center/Subwoofer speaker out. •
7.1-channel audio: Front speaker out, Rear speaker out, Center/Subwoofer speaker out, and Side speaker out. •
Step 1:
After installing the audio driver, the VIA HD Audio Deck
icon will appear in the notication area. Click the icon
to access the VIA HD Audio Deck .

Gigabyte GA-Z77M-D3H Specifications

General

ECC	No
Non-ECC	Yes
Memory voltage	1.5 V
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	4
Supported memory types	DDR3-SDRAM
Maximum internal memory	32 GB
Supported memory clock speeds	1066, 1333, 1600 MHz
Supported memory module capacities	16GB, 1GB, 2GB, 4GB, 8GB
System bus rate	5 GT/s
Processor socket	LGA 1155 (Socket H2)
Processor manufacturer	Intel
Compatible processor series	Intel Core i3, Intel Core i5, Intel Core i7
Maximum number of SMP processors	1
USB 2.0 connectors	3
Number of Parallel ATA connectors	0
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Audio chip	VIA VT2021
Cooling type	Passive
Component for	PC
Power source type	ATX
Motherboard chipset	Intel Z77
PC health monitoring	CPU, FAN, Temperature
Audio output channels	7.1 channels
Motherboard form factor	micro ATX
Compatible operating systems	Windows 7/XP
RAID levels	0, 1, 5, 10
Supported storage drive interfaces	SATA II, SATA III
Cables included	SATA
PCI Express slots version	2.0, 3.0
PCI Express configurations	1x16+1x4
Graphics card	HD Graphics
OpenGL version	3.2
DirectX version	11
Maximum graphics card memory	1696 MB
Parallel processing technology support	2-Way CrossFireX
LAN controller	-
Wi-Fi standards	Not supported
Networking features	10/100/1000 Mbit/sec
Ethernet interface type	Gigabit Ethernet
BIOS type	EFI AMI
ACPI version	2.0a
BIOS memory size	64 Mbit
