Gigabyte R272-Z30 User Manual

System Appearance - 18 -

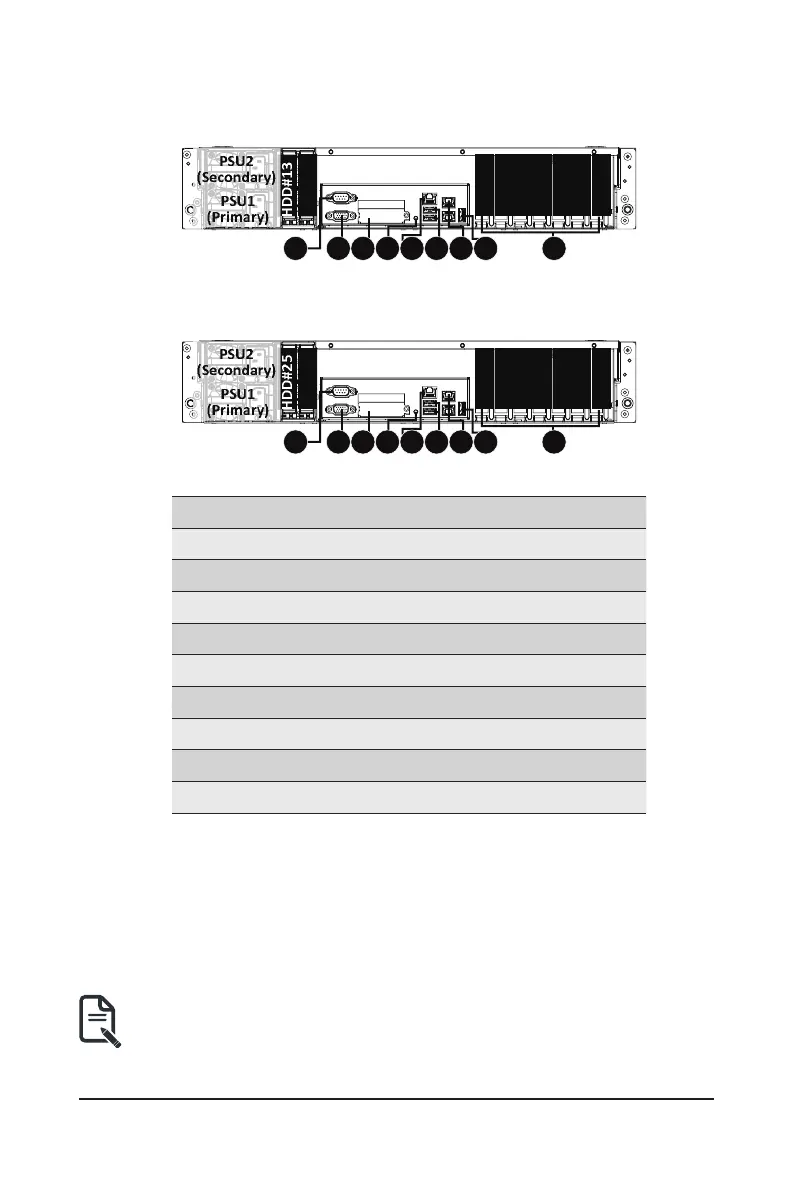

2-2 Rear View
No. Description
1. Serial Port
2. VGA Port
3. Mezzanine Card Slot (Option/OCP V2.0 Card)
4. ID Button
5. 10/100/1000 Server management LAN port
6. USB 3.0 Port x 2
7. GbE LAN Port x 2
8. USB 3.0 Port
9. PCIe Card Slot
R272-Z30
R272-Z31
R272-Z32
1 2 3 54 6 7 8 9
PCIe #1
HDD#13
HDD#12
PCIe #2 PCIe #3 PCIe #4 PCIe #5 PCIe #6 PCIe #7
PSU1
(Primary)
PSU2
(Secondary)
1 2 3 54 6 7 8 9
PCIe #1
HDD#25
HDD#24
PCIe #2 PCIe #3 PCIe #4 PCIe #5 PCIe #6 PCIe #7
PSU1
(Primary)
PSU2
(Secondary)
• PCIe #7 Slot is optional.
• Refer to section
2-4 Rear System LAN LEDs
for a detailed description of the function of
the LEDs.
