- 63 -
BIOS Setup
5-2-5
S5 RTC W
ake Settings
Parameter
Description

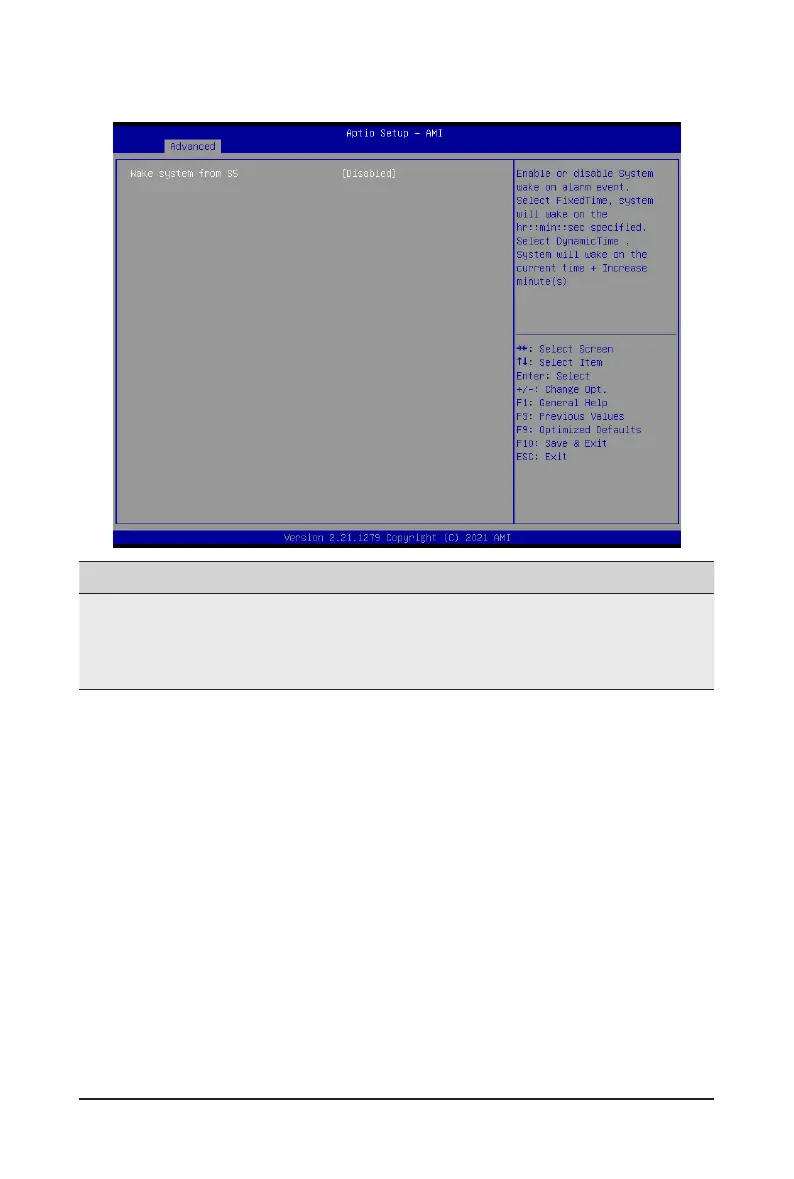

Wake System from S5
Enable/Disable system wake on alarm event.
Options available: Disabled, Fixed Time, Dynamic
Time. When Fixed Time is
selected, system will wake on the hr::min::sec specied.
Default setting is
Disabled
.
62
64
Table of Contents
Default Chapter
6
Table of Contents
6
Chapter 1 Hardware Installation
9
Installation Precautions
9
Product Specifications
10
System Block Diagram
15
Chapter 2 System Appearance
17
Front View
17
Rear View
18
Front Panel LED and Buttons
19
Rear System LAN Leds
21
Power Supply Unit (PSU) LED
22
Hard Disk Drive Leds
23
Chapter 3 System Hardware Installation
25
Removing and Installing the Chassis Cover
26
Removing and Installing the CPU and Heat Sink
27
Removing and Installing Memory
28
Eight-Channel Memory Configuration
28
Removing and Installing the Memory Module
29
Processor and Memory Module Matrix Table
29
Memory Population Table
30
Removing and Installing the PCI Expansion Card
31
Removing and Installing the Hard Disk Drive
32
Replacing the Fan Assembly
35
Removing and Installing the Power Supply
36
Installing the Mezzanine Card (Optional)
37
Cable Routing
38
R272-Z30 Cable Routing
38
R272-Z31 Cable Routing
40
R272-Z32 Cable Routing
43
Chapter 4 Motherboard Components
46
Motherboard Components
46
Jumper Settings
48
Chapter 5 BIOS Setup
50
The Main Menu
52
Advanced Menu
55
Trusted Computing
57
PSP Firmware Versions
58
Legacy Video Select
59
AST2500 Super IO Configuration
60
S5 RTC Wake Settings
63
Serial Port Console Redirection
64
CPU Configuration
68
PCI Subsystem Settings
69
USB Configuration
71
Network Stack Configuration
73
Nvme Configuration
74
SATA Configuration
75
UEFI POST LOGO Configuration
76
AMD Mem Configuration Status
77
T1S Auth Configuration
78
Intel(R) I350 Gigabit Network Connection
79
VLAN Configuration
81
MAC Ipv4 Network Configuration
83
MAC Ipv6 Network Configuration
84
AMD CBS Menu
86
CPU Common Options
88
DF Common Options
93
UMC Common Options
98
NBIO Common Options
113
FCH Common Options
119
NTB Common Options
123
SOC Miscellaneous Control
124
Workload Tuning
125
AMD PBS Menu
126
Ras
127
Chipset Setup Menu
129
North Bridge
130
Fabric Resource
131
Server Management Menu
132
System Event Log
134
View FRU Information
135
BMC Network Configuration
136
Ipv6 BMC Network Configuration
137
Security Menu
138
Secure Boot
139
Boot Menu
141
