Weight
Location
Decal
3
2
1

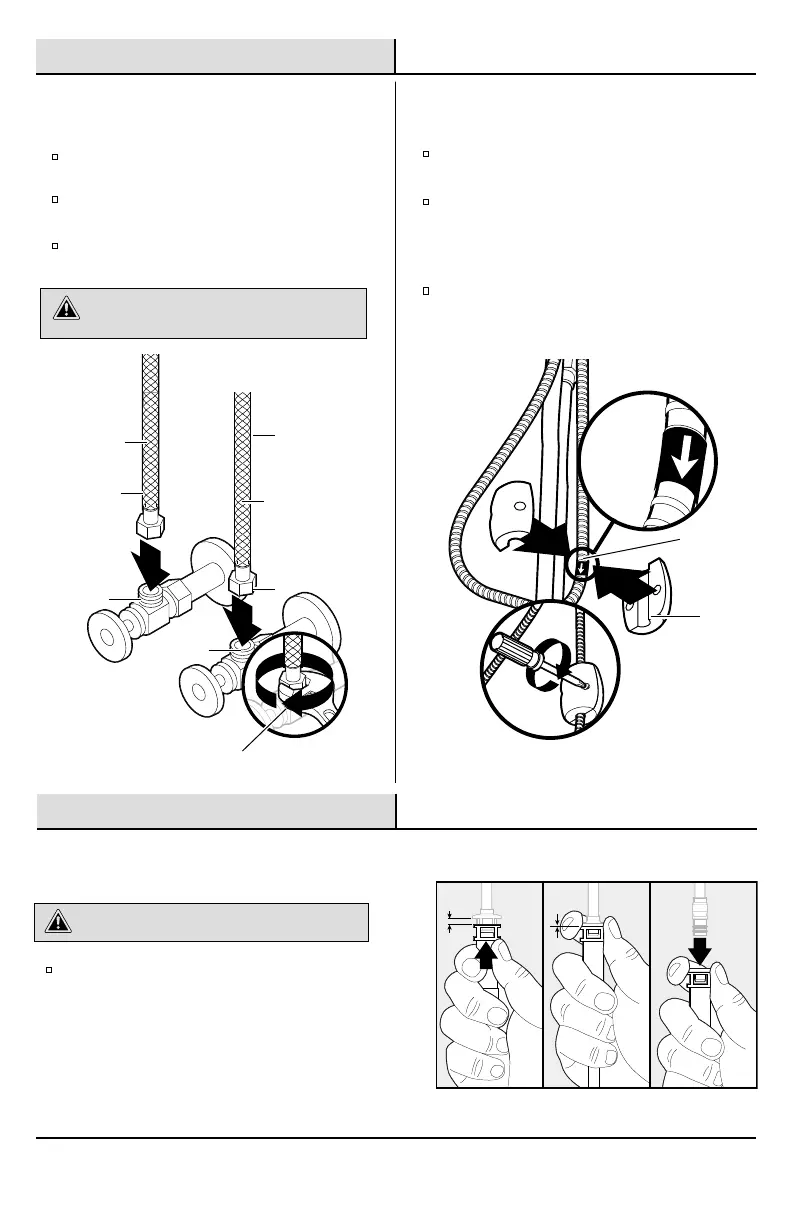

Connecting supply lines Attaching the weight
Use an adjustable wrench to connect and tight-
en the supply lines to the supply valves.
Connect the red supply line to the hot water
supply valve.
Connect the blue supply line to the cold water
supply valve.
The pull-out spray (B) should be nested in the
faucet body (A).
Use a Phillips screwdriver to secure the weight
(G) at the lowest point on the pull-out spray
hose (J). The weight (G) should cover the weight
location decal on the pull-out spray hose (J).
Pull the pull-out spray (B) away from the faucet
body (A) and ensure the pull-out spray hose (J)
is not obstructed.
Installation (continued)
8 9
F
1
RED
LINE
HOT
COLD
BLUE
LINE
1
1
G
J
CAUTION: Ensure the supply lines do not kink, twist or
bend into a “V” or “L” shape during installation. Do not use
if there are visible signs of damage.
Removing the quick connector hose
If it is necessary to remove the quick connector,
push the quick connector housing up, hold the
housing together and pull down.
Operation
CAUTION: Use caution when removing the quick
connector hose to prevent cutting your hands.
1
