4.3 Navigation lights configuration mode
1 2 3
654
1
2
3
4
5
6
Configured lights list with:
- light number
- light name
- spare exist (if this text occurs double light is configured)
Light position and color
- colored circles present configured lights
- grey circuit present possible position of light
- selected light is blinking
Property buttons for changing properties of selected light
Arrows for moving trought lights
Save configuration and enter signal lights configuration mode
Save configuration and exit configuration mode

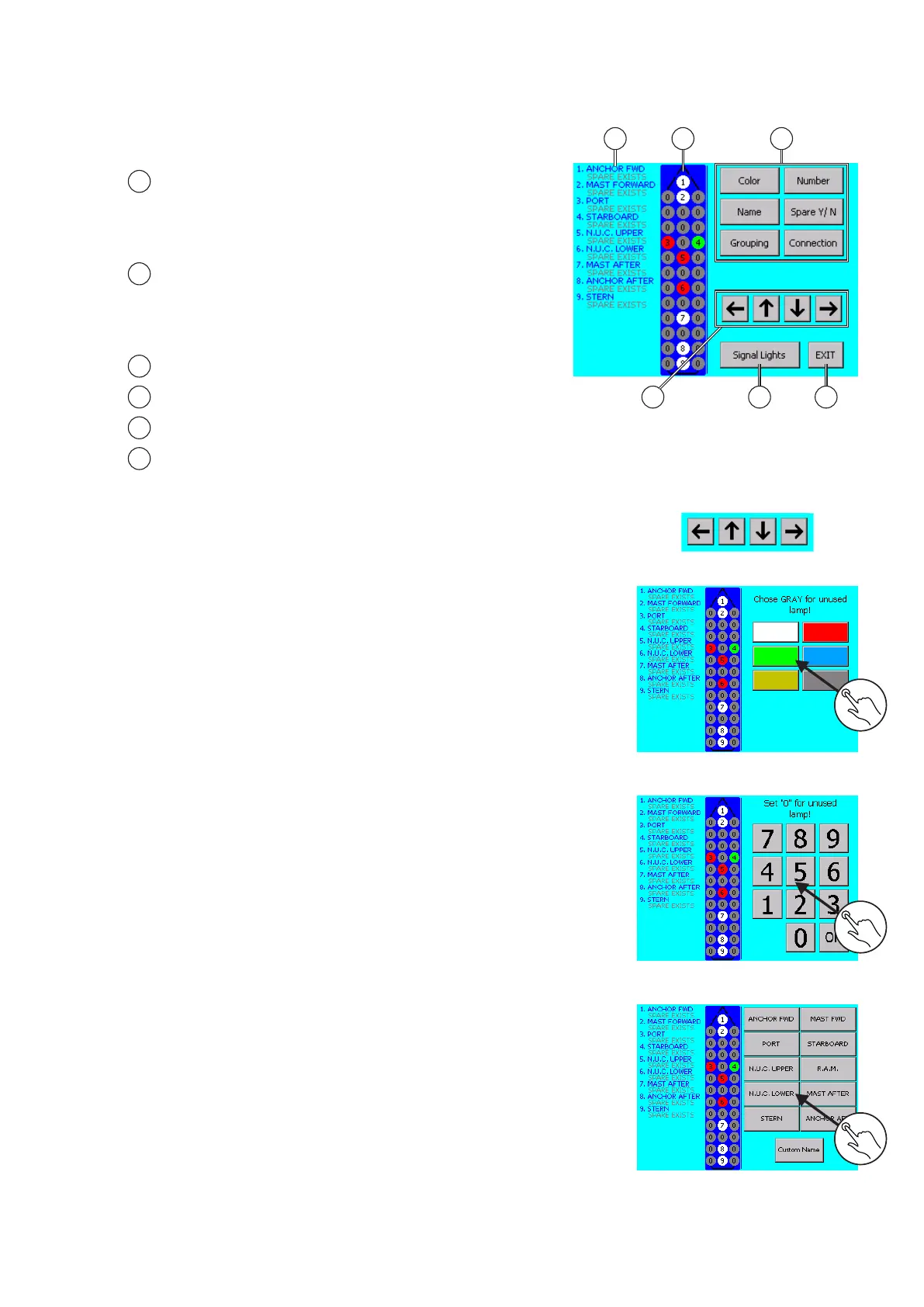

Navigation lights configuration mode main screen
Tap on property button COLOR to change color
1. Select desired color
Grey color represents non exsisting lamp - empty position.
To delete light from configuration choose grey color.
Tap on property button NAME to change lights name.
1. Select pre defined light name or make custom name.
Tap on property button NUMBER to change number.
1. Select desired number.
Tap on OK to save and exit.
Numbers from 1 to 99 are allowed. Redundand light numbers
are are also allowed.
Number 0 will delete light from configuration.
Use arrows to navigate to required light position
1
1
1
19
