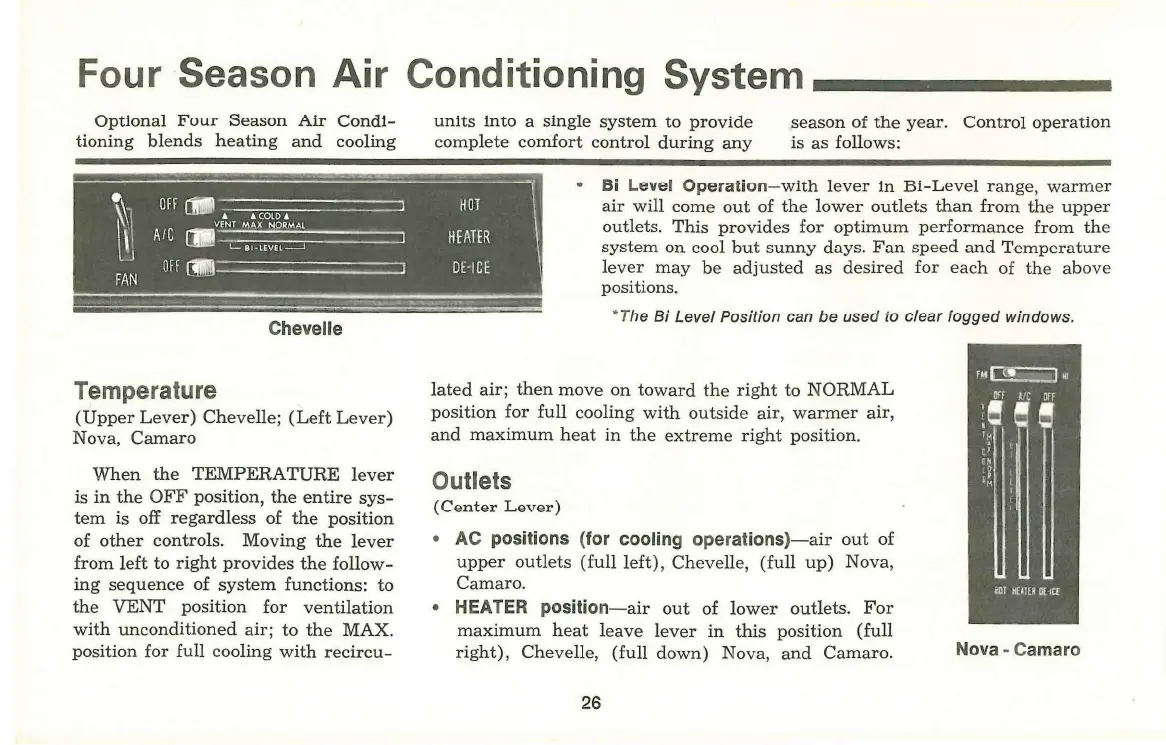

Four Season Air Conditioning System.
Optional Four Season Air Condi-
tioning blends heating and cooling
Chevelle
Temperature
(Upper Lever) Chevelle; (Left Lever)
Nova. Camaro
When the TEMPERATURE lever
is in the OFF position, the entire sys-
tem is off regardless of the position
of other controls. Moving the lever
from left to right provides the follow-
ing sequence of system functions: to
the VENT position for ventilation
with unconditioned air; to the MAX.
position for full cooling with recircu-
Bi Level Operation-with lever in Bi-Level range, warmer
air will come out of the lower outlets than from the upper
outlets. This provides for optimum performance from the
system on cool but sunny days. Fan speed and Temperature
lever may be adjusted as desired for each of the above
positions.
lated air; then move on toward the right to NORMAL
position for full cooling with outside air, Warmer air,
and maximum heat in the extreme right position.
Outlets
(Center Lever)
» AC positions (for cooling operations)-air out of
upper outlets (full left), Chevelle, (full up) Nova,
Camaro.
HEATER pOSilion-air out of lower outlets. For
maximum heat leave lever in this position (full
units into a single system to provide
complete comfort control during any
season of the year. Control operation
is as follows:
right), Chevelle, (full down) Nova, and Camaro.
Nova - Camaro
26
