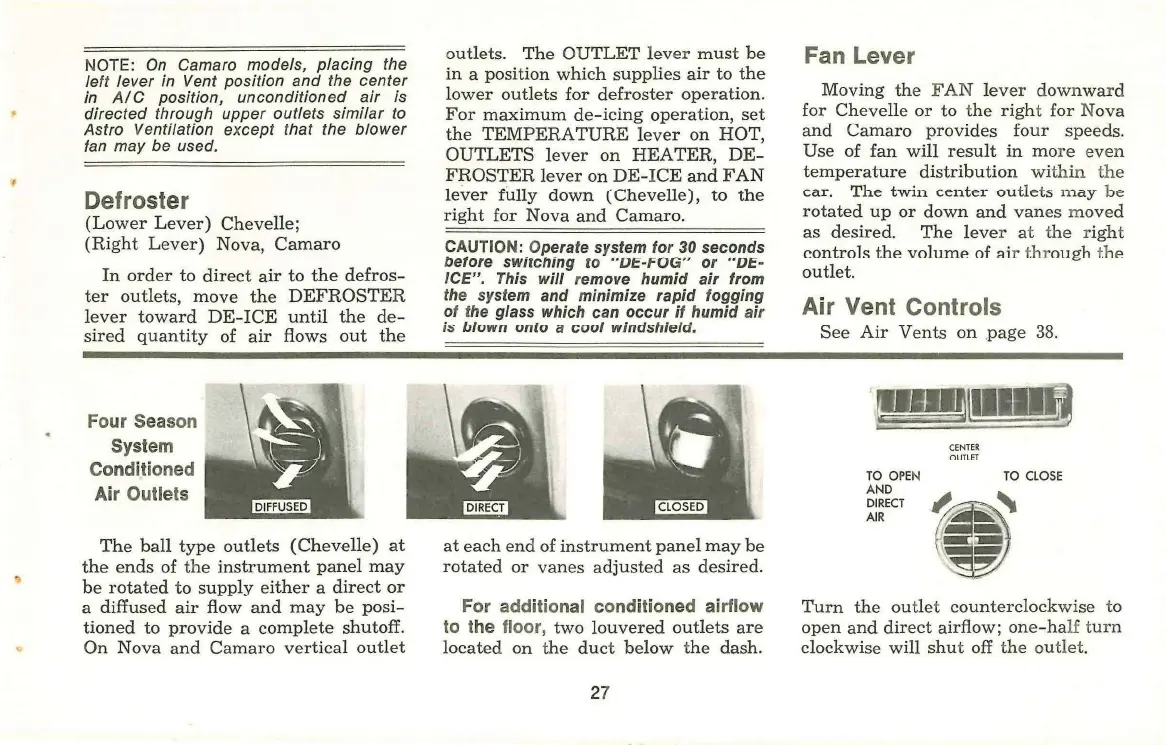

GMC Chevrolet CHEVELLE 1969 User Manual

'
_ 4 MIIIIMI W
CENTER
. . \ ounsr
5 ` » ro oPEN To c LosE
AND
\D|FFUSED Dmscr cLosEo gggfff 4 _ \\
~~ é=
at each end of instrument panel may be 4 =
rotated or vanes adjusted as desired.
NOTE:
except tnat
Defroster
(Lower Lever) Chevelle;
(Right Lever) Nova, Camaro
In order to direct air to the defros-
ter outlets, move the DEFROSTER
lever toward DE-ICE until the de-
sired quantity of air Hows out the
Four Season \
System
Conditioned
Air Outlets
The ball type outlets (Chevelle) at
the ends of the instrument panel may
be rotated to supply either a direct or
a diffused air How and may be posi-
tioned to provide a complete shutoE.
On Nova and Camaro vertical outlet
outlets. The OUTLET lever must be
in a position which supplies air to the
lower outlets for defroster operation.
For maximum de-icing operation, set
the TEMPERATURE lever on HOT,
OUTLETS lever on HEATER, DE-
FROSTER lever on DE-ICE and FAN
lever fully down (Chevelle), to the
right for Nova and Camaro.
CAUTION: system for 30 seconds
before
fogging
of the glass which can occur
For additional conditioned airflow
to the floor, two louvered outlets are
located on the duct below the dash.
27
Fan Lever
Moving the FAN lever downward
for Chevelle or to the right for Nova
and Camaro provides four speeds.
Use of fan will result in more even
temperature distribution within the
car. The twin center outlets may be
rotated up or down and vanes moved
as desired. The lever at the right
controls the volume of air through the
outlet.
Air Vent Controls
See Air Vents on .page 38.
Turn the outlet counterclockwise to
open and direct airflow, one-half turn
clockwise will shut off the outlet.
