03 Product Introduction User Manual V1.4-2022-08-30

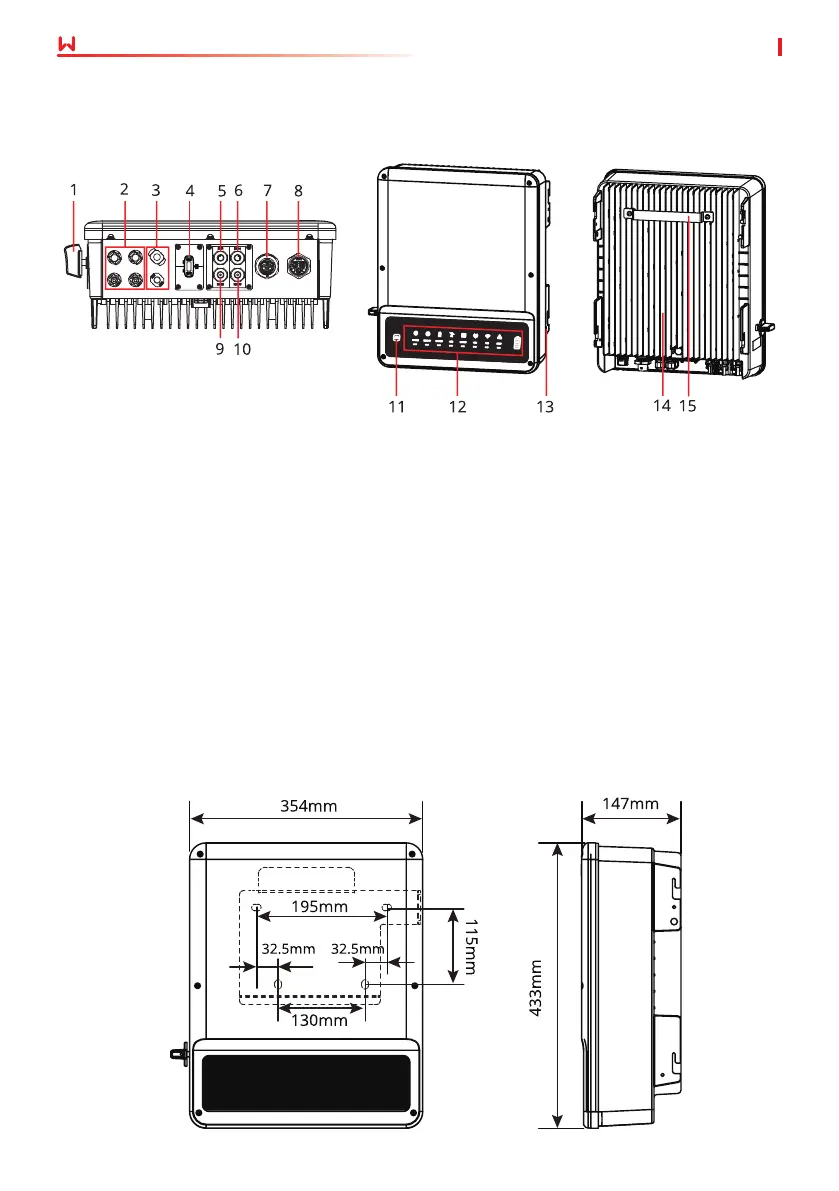

3.5 Appearance
3.5.1 Parts
3.5.2 Dimension
1. DC switch
[1]
2.
PV input terminal
(PV1/PV2)
3.
Battery input terminal
(BAT +/-)
4.
Communication module
port (WiFi or LAN)
5. BMS communication port 6.
Meter communication
port
7. Back-Up port 8. On-Grid port 9.
DRED communication
port
10.
RS485 communication
port
11. Wi-Fi reset 12. Indicators
13. PE terminal 14. Heat sink 15. Mounting Plate
If the inverter is not equipped with a DC switch, an external DC breaker shall be added. The
external DC breaker shall be AU/NZ certied; Complied to AS60947.3:2018; Be classied as DC-PV
2; With ratings and properties suitable for the intended application conditions such as outdoor,
exposed to sunshine, on non-combustible material surface.
