Graco Reactor A-25 Operation

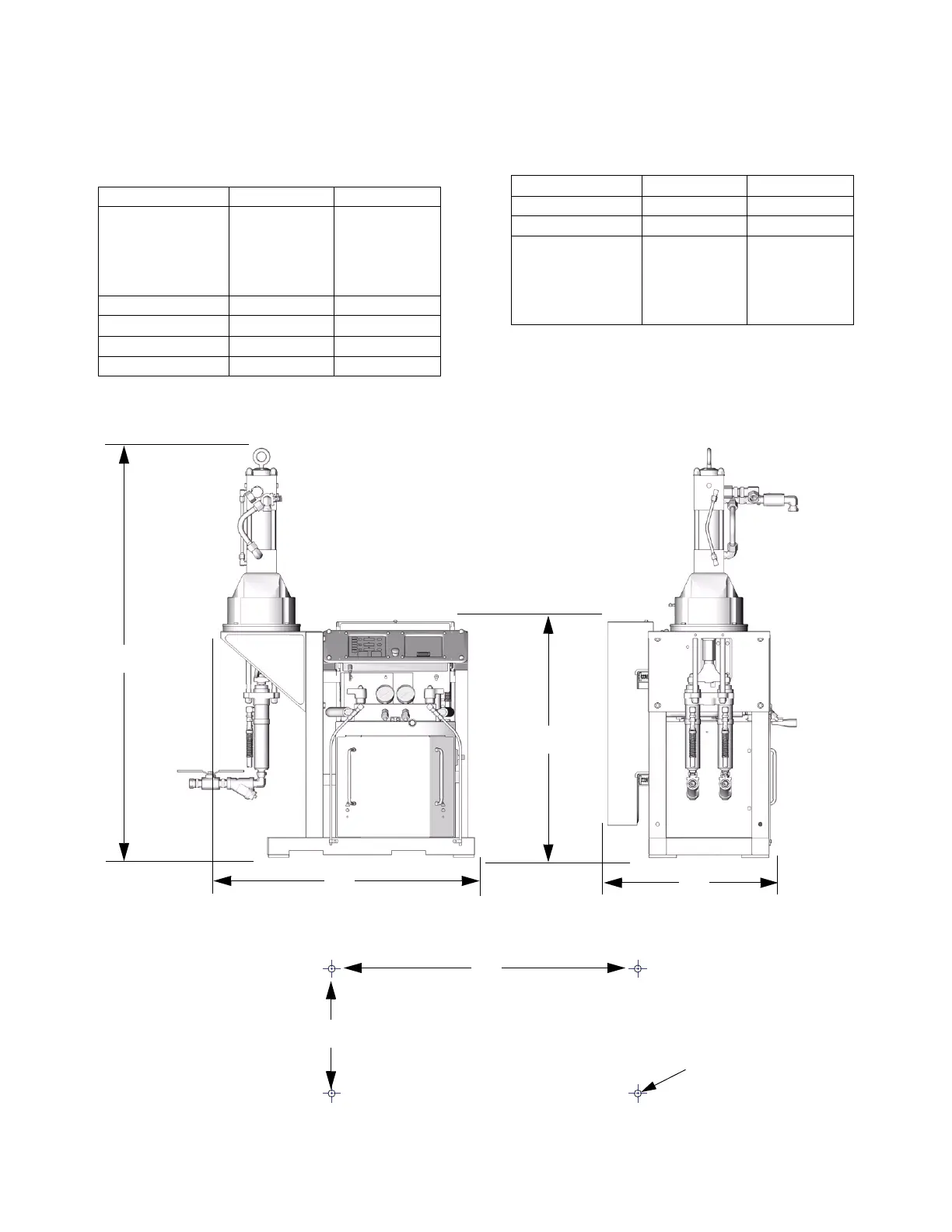

Dimensions
309812D 39
Dimensions
Dimension Model in. (mm)
A A-25, A-XP2,
A-XP2 2:1
A-50
H-50
H-XP3
49 (1245)
55 (1397)
53 (1346)
60.5 (1537)
B All 35 (889)
C All 36.5 (927)
D All 25 (635)
E All 27 (686)
F All 11 (279)
G (hole diameter) All 0.625 (16)
Weight A-25, A-XP2
A-50
H-50
H-XP3
HT Series
400 lb (180 kg)
480 lb (216 kg)
475 lb (214 kg)
485 lb (218 kg)
333 lb (150 kg)
Dimension Model in. (mm)
A
B
TI3700a
Mounting Hole Dimensions
C
D
F
E
G
Front View Side View
