Graco XM Series Instructions

Parts
22 313292K
XMA_00 and XMB_00 Parts
Reference numbers not listed are not included with
XMA_00 and XMB_00 systems.
 Included with XMAD00 and XMBD00 systems only.
 Included with XMAA00 and XMBA00 systems only.
 Included with XMBA00 and XMBD00 systems only.
 Not shown.
 Replacement safety labels, tags, and cards are available
at no cost.
Ref. Part Description Qty.
2 255684 MANIFOLD, mix; see your XM Sprayer
Repair manual
1
3 - - - - - VALVE, ratio control, left; see your XM
Sprayer Repair manual
1
4 - - - - - VALVE, ratio control, right; see your XM
Sprayer Repair manual
1
5 26C688 MODULE, air controls, upper; see your
XM Sprayer Repair manual
1
6 26C689 MANIFOLD, inlet air distribution; see
your XM Sprayer Repair manual
1
7 255771 BOX; see your XM Sprayer Repair
manual
1
19 255728 MODULE, alternator
1
20 110637 SCREW, mach, pan hd
XMAA00 and XMBA00
3
XMAD00 and XMBD00
5
21 C12508 TUBING, nylon, round
5
22 15V778 CABLE, I.S.CAN, f/f; 20 in.
1
23 15V782 CABLE, I.S. CAN, m/f; 20 in.
1
24 15V783 CABLE, male/female; 39 in.
1
25 15V747 POWER SUPPLY, assy.; 24Vdc, 2.5A,
60W
1
26 100035 SCREW, machine, pan hd
4
27 15X407 CABLE, power
1
28 115306 FILTER, power
1
29 15V779 CABLE, I.S. CAN, f/f; 34 in.
1
38 112958 NUT, hex, flanged
11
40 15X393 LABEL, warning, USB
1
41 15X126 LABEL, codes
1
42 15W598 LABEL, warning
1
43 156971 NIPPLE, short
1
44 115243 REGULATOR, air, 1/4 npt
1
45
 112307 ELBOW, street; 1/8 nptf x 1/8 nptm
1
46 15W017 VALVE, safety, regulator
1
47 115841 ELBOW, swivel, male; 1/4 npt
1
48 104655 GAUGE, pressure, air
1
49 156823 UNION, swivel
1
50 102063 WASHER, lock, ext
1
51 15B090 WIRE, grounding, door
1
52 100284 NUT, hex mscr
1
53 121295 SCREW, cap, socket hd
8
54 158491 NIPPLE; 1/2 npt
4
55 100361 PLUG, pipe; 1/2 in. - 14 nptf
2
56 15R529 BLOCK, manifold
2
57 156684 ADAPTER, union
2
58 121139 O-RING
2
59 15J594 HOUSING, valve
2
60 255747 CARTRIDGE, valve
2
61 15R380 HANDLE, green
1
62 15J916 HANDLE, blue
1
63 117623 NUT, cap; 3/8-16 unc
2
64 262522 CARRIAGE
1
65 111801 SCREW, cap, hex hd
12
66 108636 MUFFLER
1
67 121688 CONNECTOR, 3/8 npt x 3/8 tube
1
68 054175 HOSE, nylon, 1/4 OD, black; 10 ft; see
Component Identification, page 11
69 054757 HOSE, nylon, 1/4 OD natural; 10 ft; see
Component Identification, page 11
73 238909 WIRE, grounding assy
1
74 17L724 FLASH DRIVE, USB, 2.0
1
76
 162505 UNION, swivel; 3/8 male x 1/2 female
npt
1
77 222200 VALVE, restrictor
1
78 155699 ELBOW, street
1
79 159239 NIPPLE, pipe; 1/2 x 3/8 npt
1
80 156849 PIPE, nipple
1
81 164672 ADAPTER
1
82 126786 WRENCH, restrictor
1
92 16N367 COUPLING, 1/2 x 3.5 in.
1
Ref. Part Description Qty.

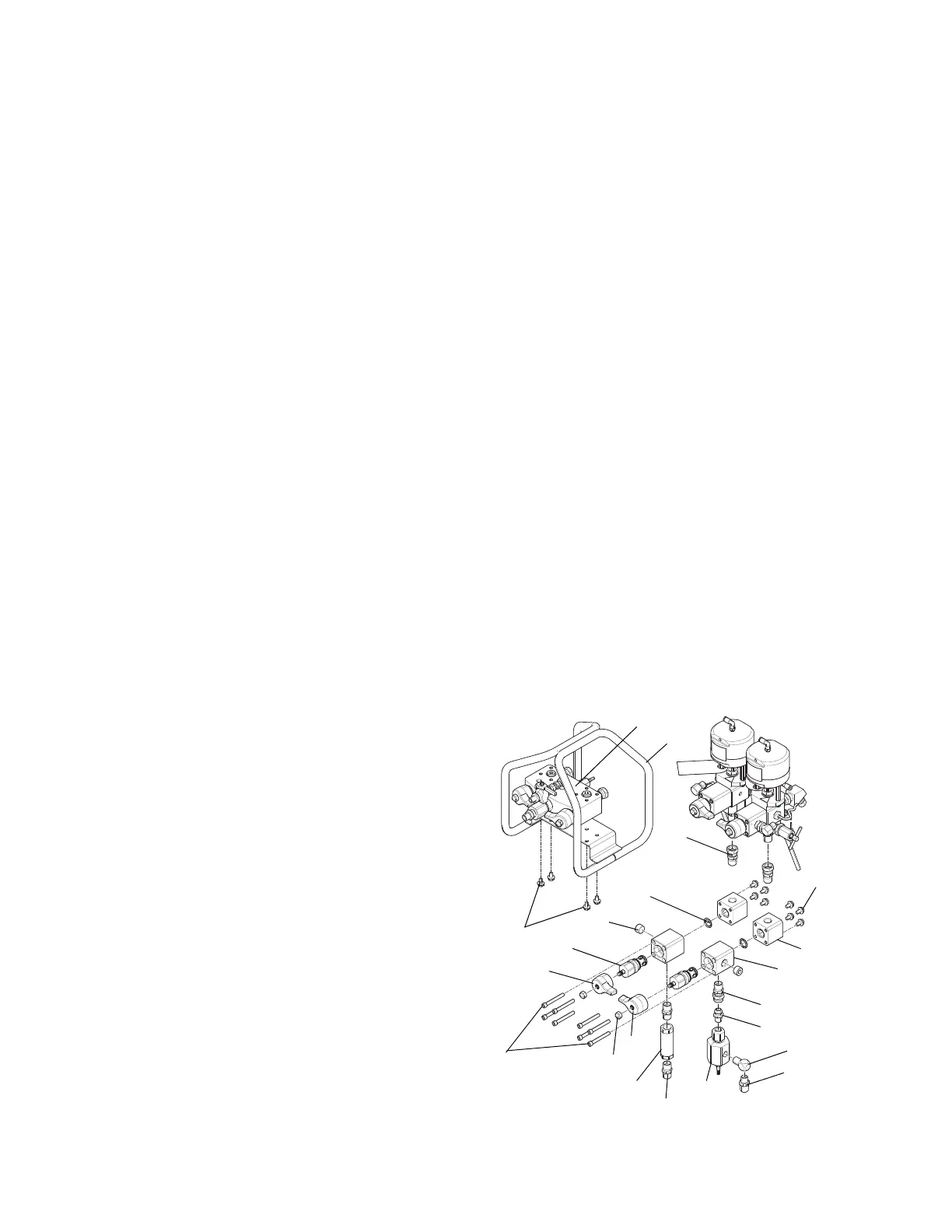

XMBA00 and XMBD00 Systems Only
2
64
65
57
62
55
53
63
61
59
56
65
60
58
54
76
77
78
79
54
92
