EN - 10
6. Insert cable clip into lower hole on battery
tray.
See Figure 6.
REPOSITION SEAT AND
CONNECT SWITCH
Models 915255, 915256, 915257
1. Remove and retain wing knobs and
washers from seat plate.
See Figure 7.
2. Move seat forward and reinstall original
hardware.
See Figure 8.
3. Connect start switch.
4. Insert cable clip into lower hole on battery
tray.
See Figure 6.
IMPORTANT: Seat switch must be connected
for unit to operate.
SECURE BATTERY CABLE
1. Remove the hex bolt, hex nut and flat
steel washer from the negative battery
cable. Retain hardware.
See Figure 9.

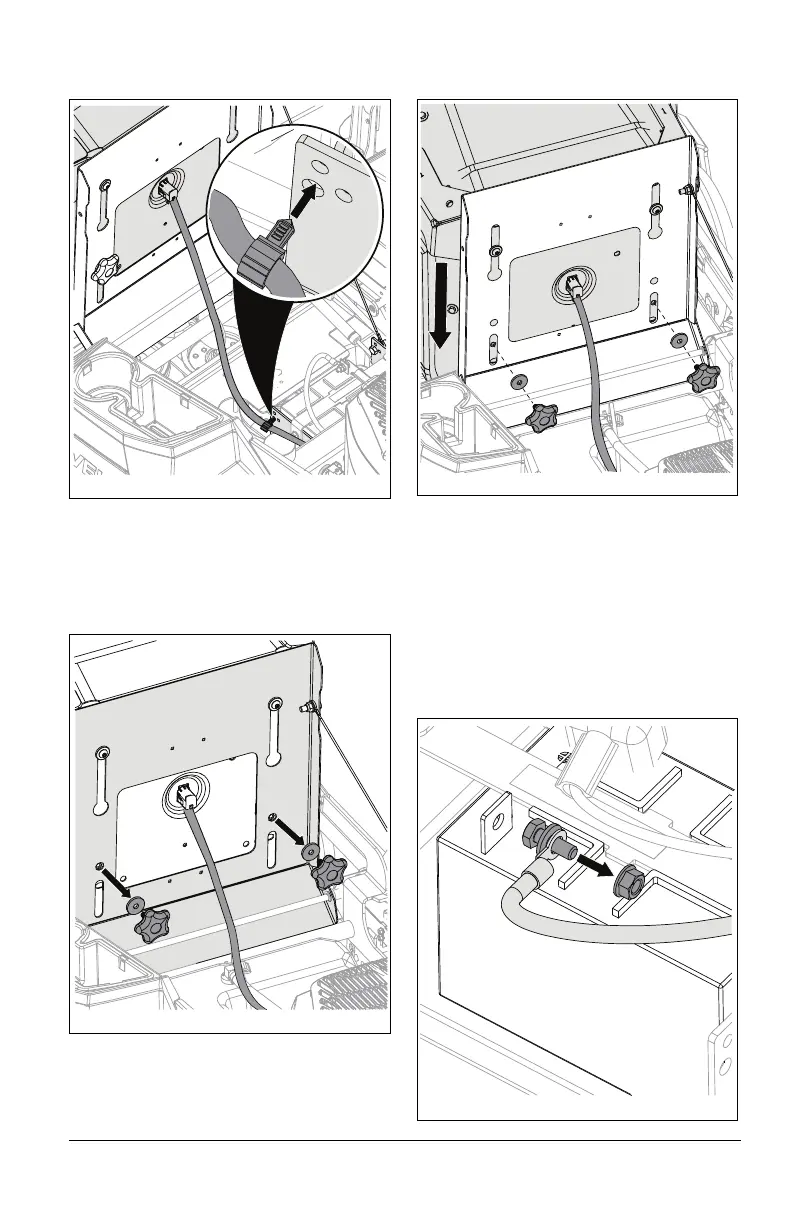

Figure 6
Figure 7
Figure 8
Figure 9
