EN - 35

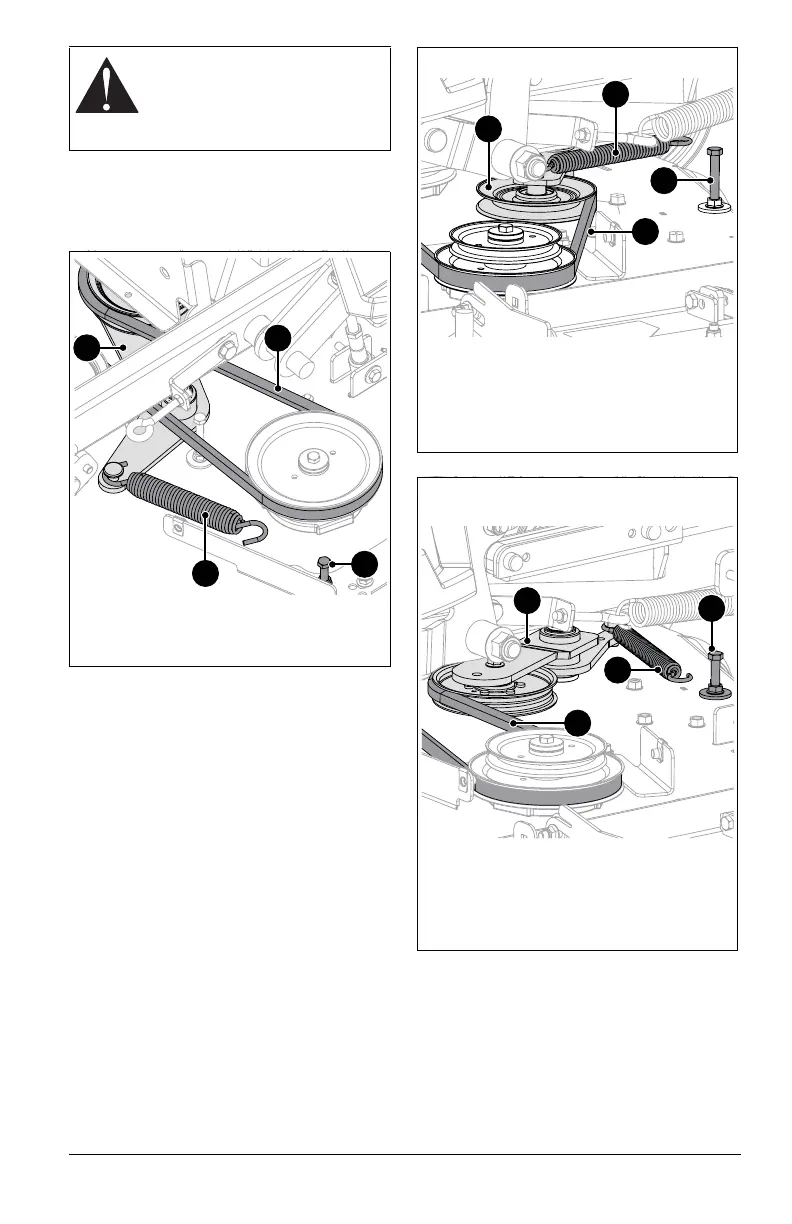

See Figure 47.
7. Slowly remove spring hook from anchor
bolt to release tension from belt idler.
8. Remove PTO belt.
Remove Mower Drive Belt
See Figure 48 and Figure 49.
1. Slowly remove spring hook from anchor
bolt to release tension from belt idler.
2. Remove mower drive belt.
CAUTION: Use care when
releasing idler spring tension.
Keep body parts away from
idlers when performing this
operation.
Figure 47
1. Spring
2. Anchor Bolt
3. PTO Belt Idler
4. PTO Belt
1
2
4
3
Figure 48
Models 992273, 992282, 992289
1. Spring
2. Anchor Bolt
3. Mower Drive Belt Idler
4. Mower Drive Belt
1
2
3
4
Figure 49
1. Spring
2. Anchor Bolt
3. Mower Drive Belt Idler
4. Mower Drive Belt
1
2
4
3
Models 992274, 992275, 992276, 992278,
992279, 992283, 992284, 992288, 992290
