4.4 Installation Foundation
(1) Installation foundation shall be designed by the qualified designer in accordance with the actual
condition.
(2) A rubber pad shall be placed under the base of each single unit and then secured on the ground or
the roof. Alternatively, each single unit can be placed side by side on the parallel channel steel with
enough strength which then shall be secured with anchor bolts. Distance between each single unit
shall be keep 1m as a minimal.
(3)
Enough space shall be left for service and ventilation. Be sure there is at least 2m between the equipment
and any barrier and it is better to set up a sun cover 3m ahead of the equipment.
(4) The unit shall be installed where it will not be aected by re, corrosive, inammable or waste gas, and
proper measures shall be taken to minimize the vibration and noise.
(5) The unit shall be installed where the defrosting water can be drained out favorably.
(6) Do not install the unit where there is heavy snow. If inevitable, build a foundation at least 300mm
higher than the ground.

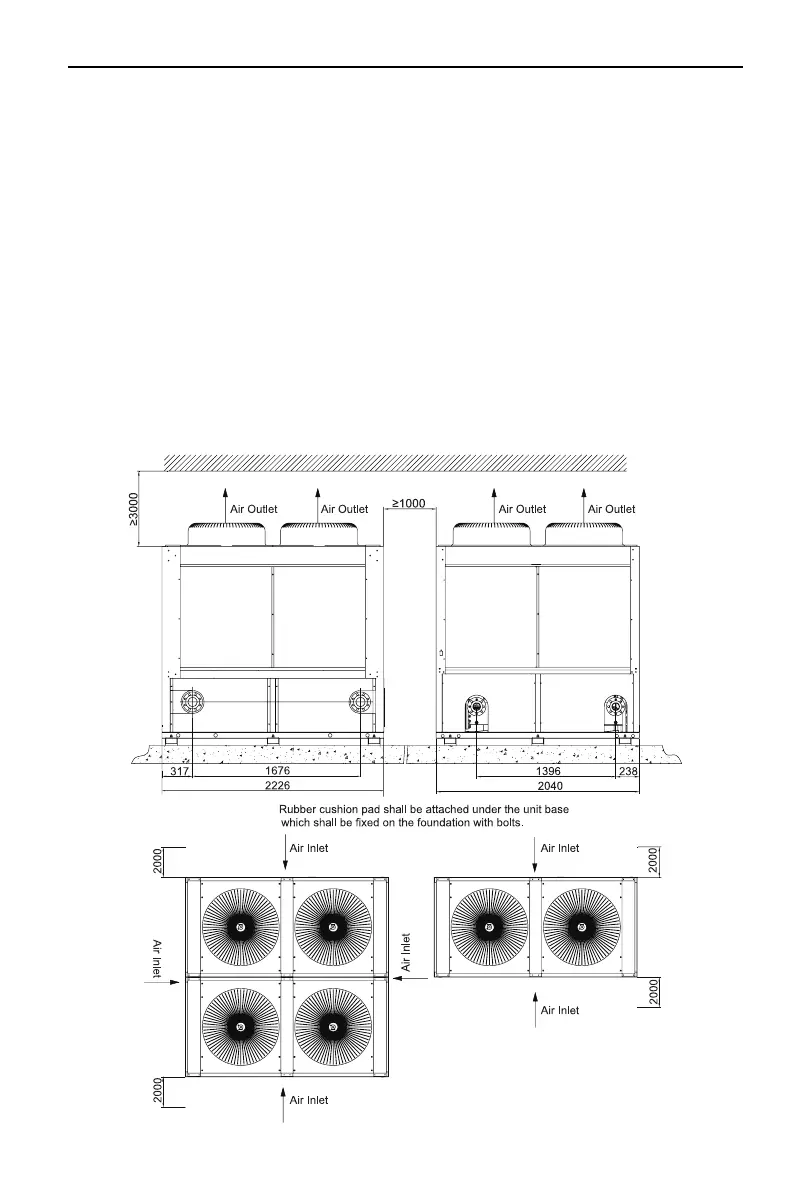

(Unit:mm)
