INSTALLATION
BEFORE INSTALLATION
Test run the unit with proper power supply. Refer to
the operation instruction section in the Owner’s
Manual Operation & Installation. Make sure all the
controls operate correctly then disconnect the
power supply of the unit.
WARNING
1. Moving parts may cause personal injury. Be careful when test the unit. Do not operate the
unit with exterior cover removed.
2. Outdoor unit can't be installed at the low recess of the roof of vehicle. It must be mounted a
the flat surface on the roof of vehicle to make sure the rain, car-washing water, condensate
water, etc. can be drained smoothly. No water is allowed to be accumulated around the
outdoor unit; otherwise, it will cause malfunction or safety hazards as the water will pour into the
air conditioner.
1.
Before sticking, clean up the sundries
at the sticking position (as shown in
Figure 1) of the chassis of the outdoor
unit to ensure that the sticking position
is clean;
2.
Take out one piece of sponge (sealing
strip) and one piece of sponge from the
accessories, and tear off the paper on
the glue surface and align at the edge of
the position as shown in Figure 1 to stick
the sponge.
If the sponge (sealing strip) is damaged
or not stuck on the proper position, you
must replace it with a new one and stick
it properly;
3.
Check whether the sponge (sealing strip)
and the sponge are tightly adhered, and
ensure that they will not fall off.

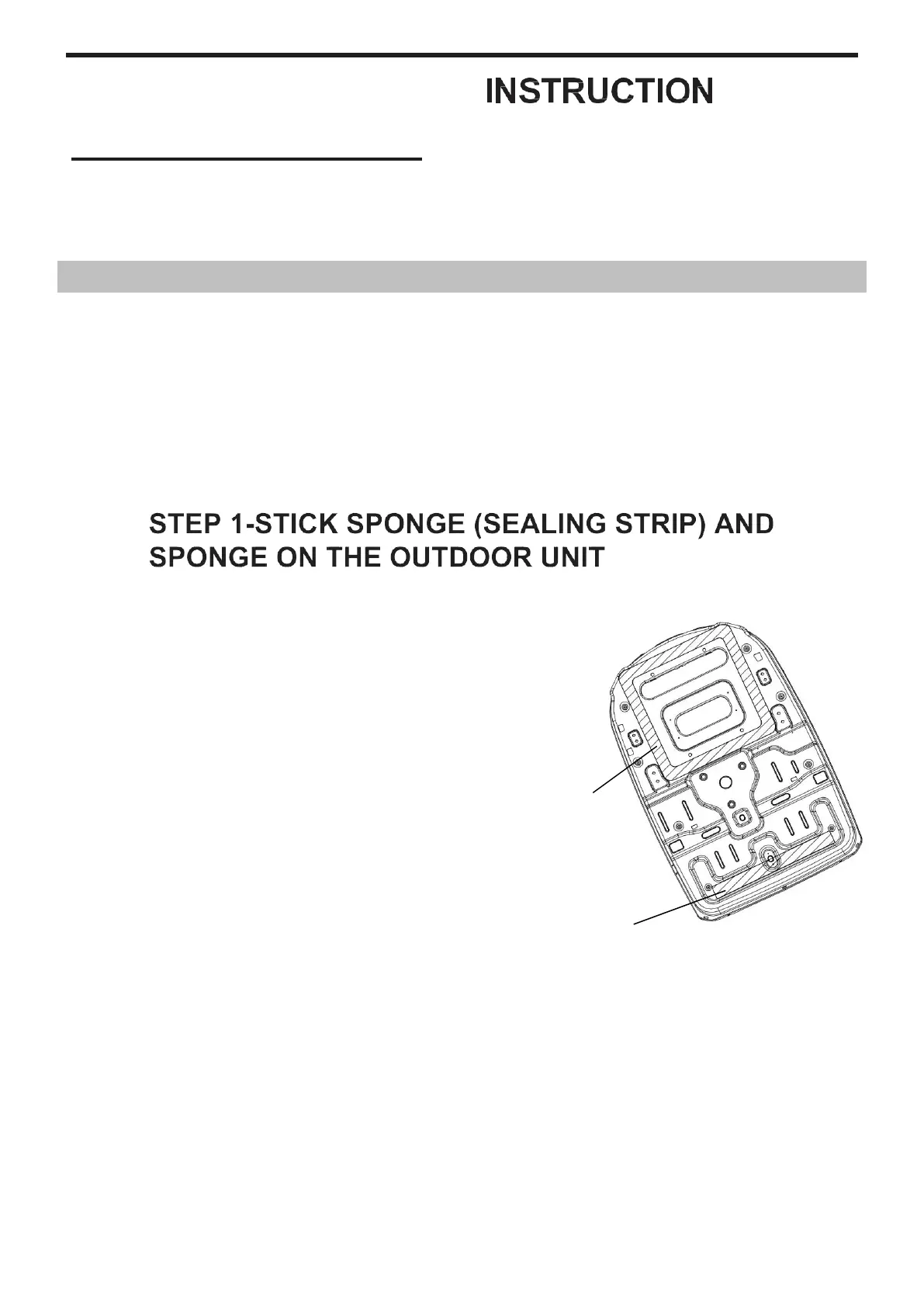

Sticking position
of sponge
(sealing strip)
Sticking position of
one piece of sponge
Figure 1
STEP 2-SELECTING AN INSTALLATION LOCATION &
INSTALLING THE ROOF TOP AIR CONDITIONER
Your air conditioner has been designed for use in recreational vehicles.
Check the roof of the vehicle to determine if it can support both the roof top unit and the ceiling
assembly without additional support. Make sure the interior ceiling mounting area will not
interfere with existing structures.
