Gree EXTREME Series User Manual

28
Installation of the indoor unit

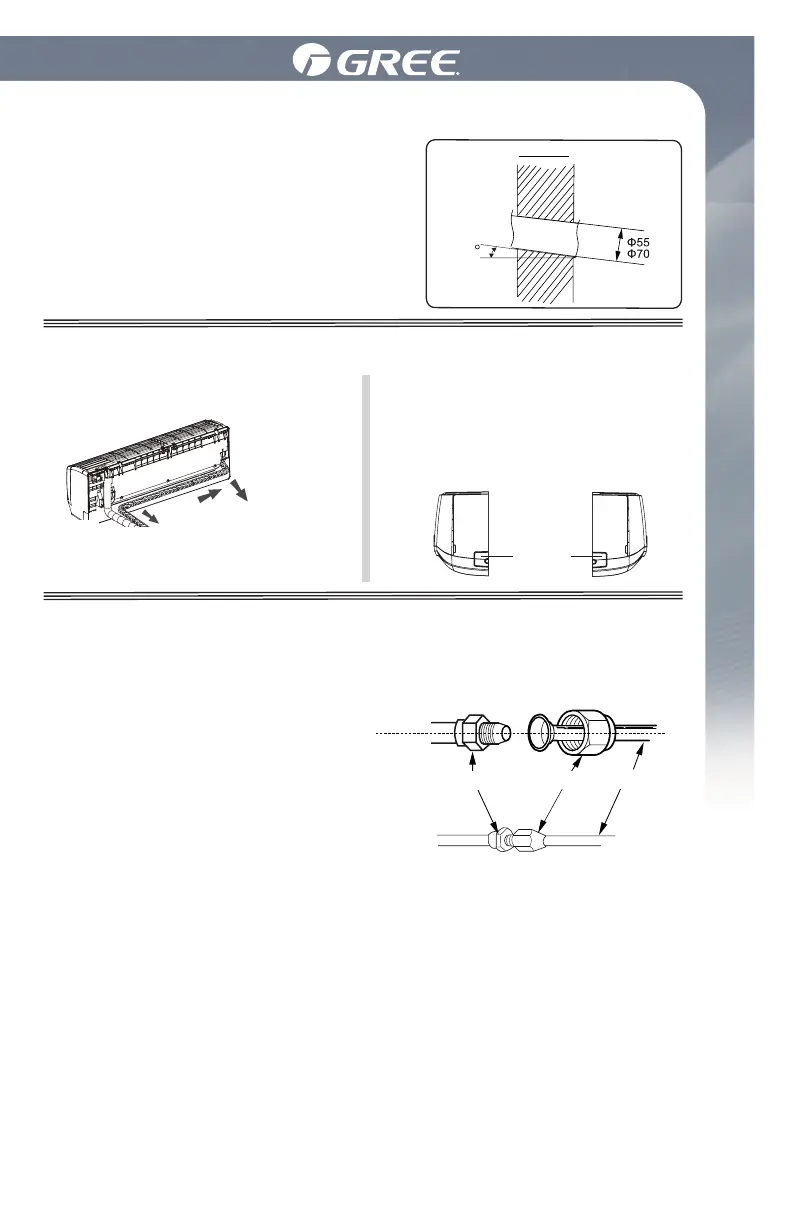

Step Four: outlet pipe
Step Five: connect the pipe of indoor unit
Note:
• Pay attention to dust prevention and
take relevant safety measures when
opening the hole.
• The plastic expansion particles are
not provided and should be bought
locally.
1.The pipe can be led out in the
direction of right, rear right, left or
rear left.
1.Aim the pipe joint at the corres-
ponding bell mouth.
2.Pretighten the union nut with
hand.
3.Adjust the torque force by referring to the following sheet. Place the
open-end wrench on the pipe joint and place the torque wrench on the
union nut. Tighten the union nut with torque wrench.
2. When select leading out the pipe
from left or right, please cut off
the corresponding hole on the
bottom case.
5-10
/
Indoor Outdoor
right
left
rear right
rear left
left right
cut off
the hole
pipe joint union nut pipe

Gree EXTREME Series Specifications

General

Refrigerant	R410A
Inverter Technology	Yes
Cooling Capacity	9, 000 - 36, 000 BTU/h (depending on model)
Noise Level	As low as 19 dB (indoor unit)
Air Flow	Varies depending on model
Features	Wi-Fi control
