18
Energy-Recovery Ventilation
System Service Manual
INSTALLATION

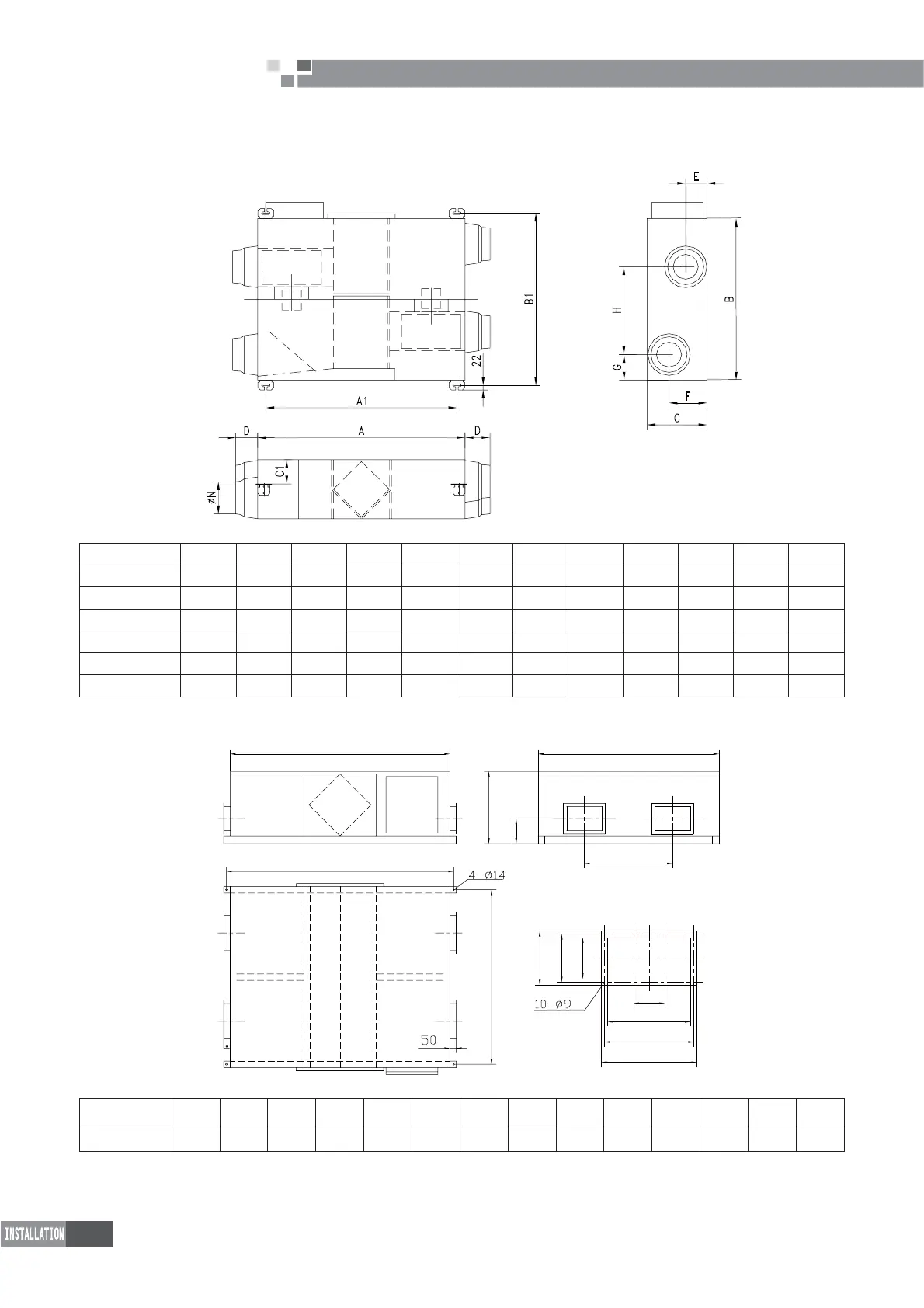

1 DIMENSION DATA
Fresh air
outlet
Room air
inlet
Fresh
air intlet
Room air
outlet
Uint: mm
Model A A1 B B1 C C1 D E F * HN
FHBQ-D3.5-K 879 823 800 852 306 125 90 125 175 136 416 197
FHBQ-D5-K 879 823 800 852 306 125 90 125 175 136 416 197
FHBQ-D8-K
1016 960 832 884 380 165 90 150 230 155 372 246
FHBQ-D10-K
1016 960 832 884 380 165 90 150 230 155 372 246
FHBQ-D15-M
1215 1159 1210 1262 452 200 100 190 277 178 737 297
FHBQ-D20-M
1215 1159 1210 1262 452 200 100 190 277 178 737 297
WL
W2
B2
B1
B
W1
fresh air inlet
room air inlet
room air outlet
L1
electric
box
H
H1
A2
A
A3
A1
flange dimention
fresh air outlet
Uint: mm
Model L L1 W W1 W2 H H1 A A1 A2 A3 B B1 B2
FHBQ-D30-M 1550 1650 1340 1310 670 572 249 346 386 180 366 332 372 352
