Gree FHBQ-D10-K User Manual

5
Energy-Recovery Ventilation
System Service Manual
QSPEVDU
4.2 Electrical Data
Model
Power
Supply
Fan
Motor
Max. Fuse
Breaker Size
Min.
Disconnect Size
V,Ph,Hz FLA Each Amperes Amperes
FHBQ-D3.5-K
220V~50Hz
0.76A×2 2.47A 1.71A
FHBQ-D5-K
0.76A×2 2.47A 1.71A
FHBQ-D8-K
1.0A×2 3.25A 2.25A
FHBQ-D10-K
1.0A×2 3.25A 2.25A
FHBQ-D15-M
380V 3N~50Hz
1.4A×2 4.55A 3.15A
FHBQ-D20-M
1.4A×2 4.55A 3.15A
FHBQ-D30-M
4.2A×2 13.65A 9.45A
Notes:
1. RLA:Rated load amperes .
2. LRA:Locked rotor amperes .
3. FLA:Full load current .

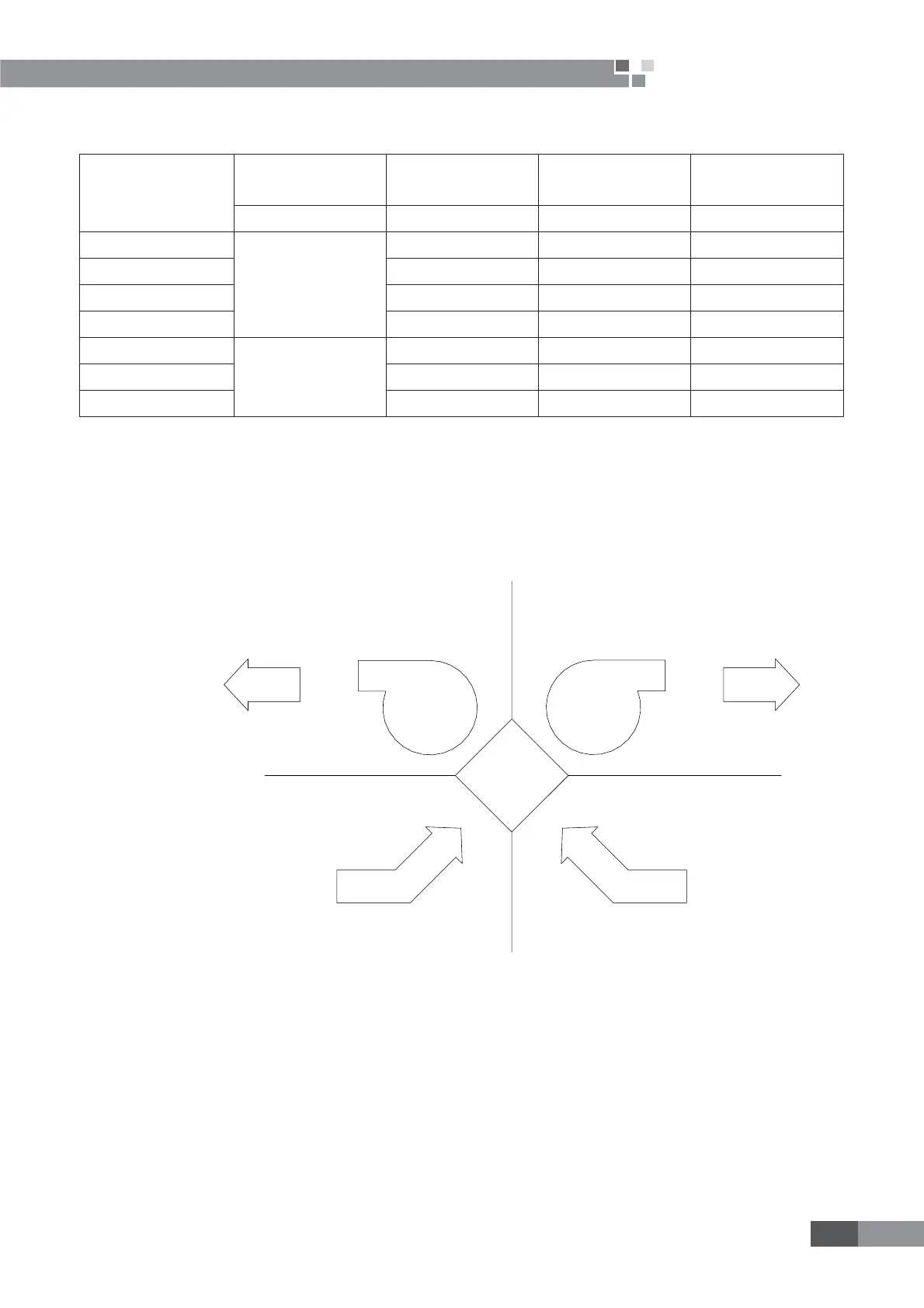

5 PIPING DIAGRAM
Fresh air
Outdoor
Air discharge
Heat
exchanger
Indoor
Air supply
Room air
