Multi VRF Floor Standing Indoor Unit
14
5.2 Power Cord Connection
NOTES!
All indoor units must be unified of power supply so that they can be powered
ON/OFF at the same time.

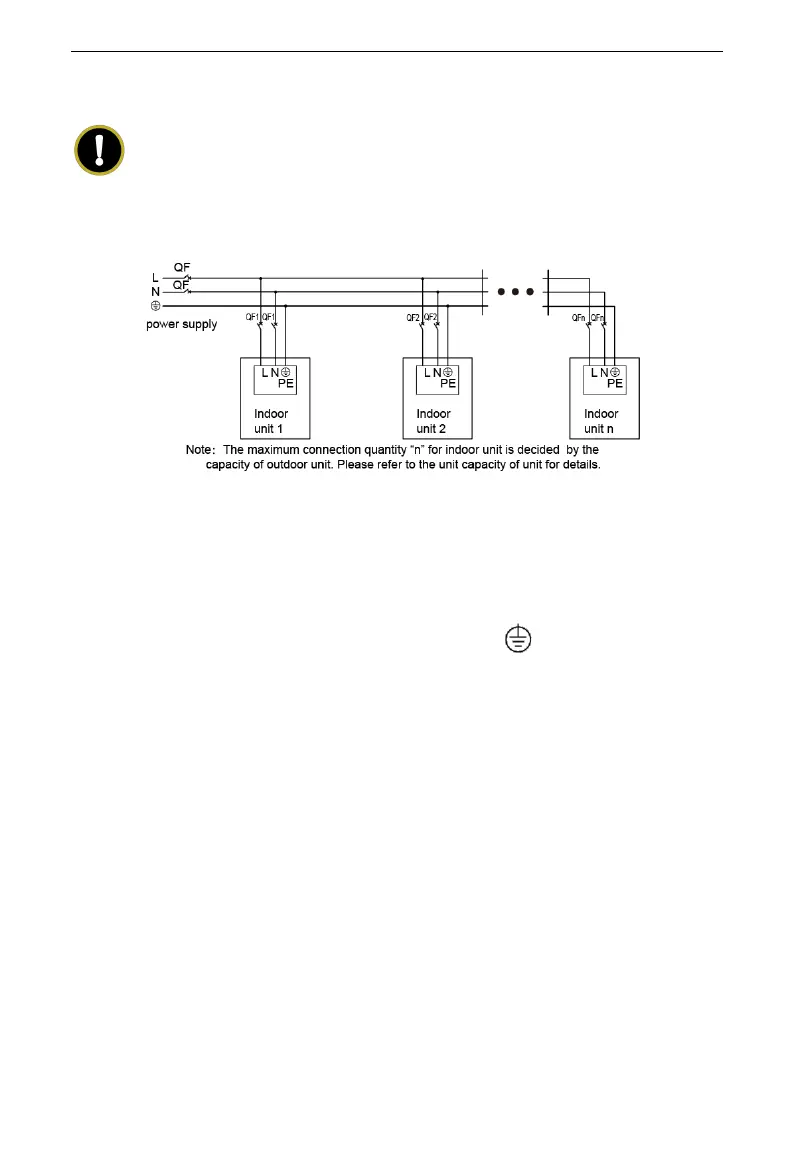

Fig 5.3
For units with single-phase power supply.
(1) Detach the electric box lid.
(2) Let the power cord pass through the wiring through-holes.
(3) Connect the power cord to terminal "L, N, ".
(4) Fix the power card with wiring clamp.
5.3 Connection of Communication Line of IDU and ODU
(1) Open the cover of electric box of indoor unit.
(2) Lead the communication line across the rubber ring.
