5.8 Floor Ceiling Type

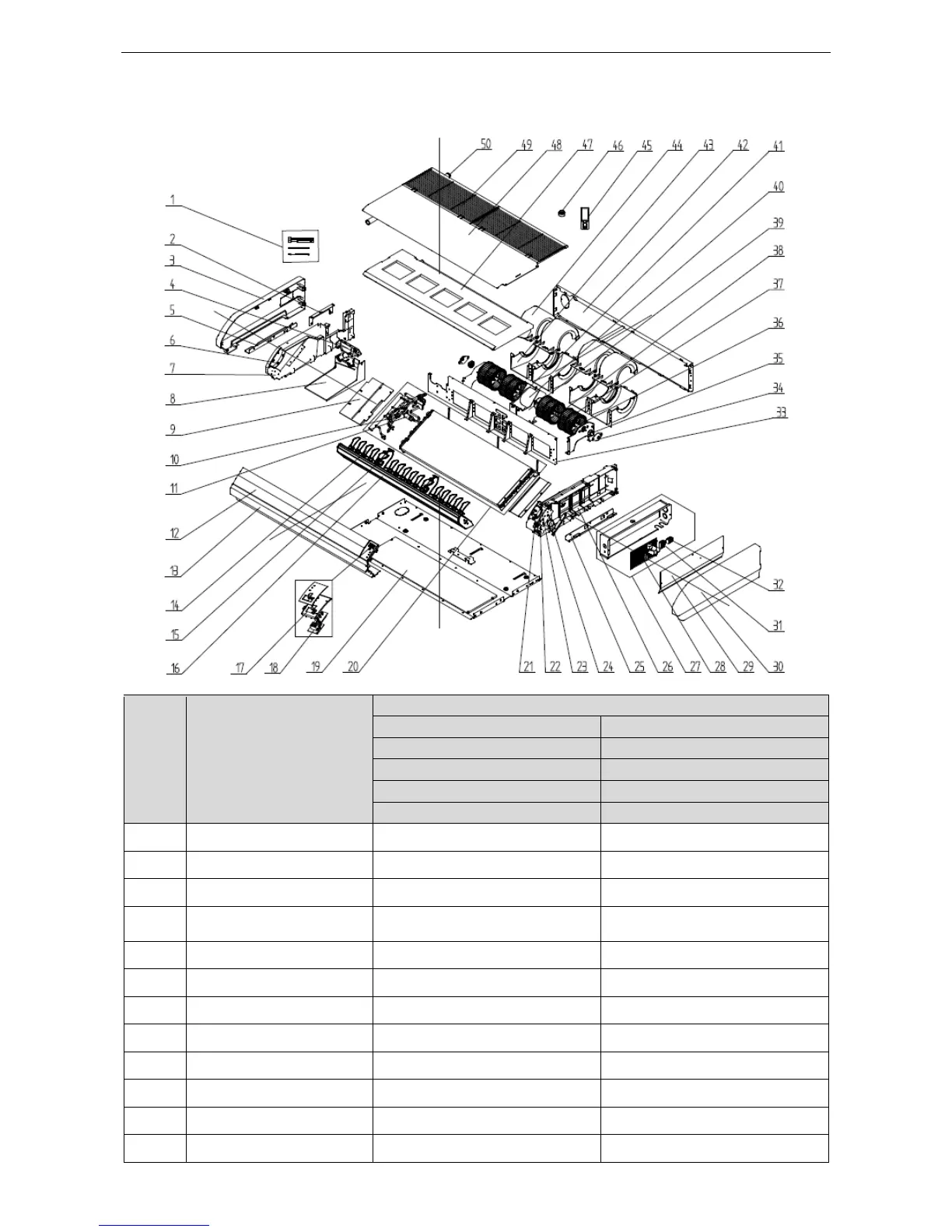

Exploded View of GMV-ND28ZD/A-T、 GMV-ND36ZD/A-T、GMV-ND50ZD/A-T、GMV-ND56ZD/A-T ：
No.
Name of part
For the following unit
Unit
Product Code
GMV-ND28ZD/A-T
CM600N0350
GMV-ND36ZD/A-T
CM600N0360
GMV-ND50ZD/A-T
CM600N0320
Part code
Quantity
1
Sensor Sub-assy
'39008000101G
1
2
Connection Board
'02229406
1
3
Right Cover Plate
'26909444
1
4
Plate Board of Water
Releasing Flume
'26909442
1
5
Installation Supporting Frame
'01809402
1
6
Axile Bush
'10542704
2
7
Right Side Plate Sub-Assy
'01319429
1
8
Water Releasing Flume
'02284106P
1
9
Connection Board
'01344115
1
10
Electronic Expansion Valve
' 07334463
1
11
Strainer
'0741410000601
2
12
Guide Louver
'10619403
2
