Gree GMV-ND28TD/A-T Service Manual

MULTI VRF-Ⅱ INDOOR UNIT SERVICE MANUAL EUROPEAN/LATIN AMETICA (R410A)
198
5.10 Slim Duct Type

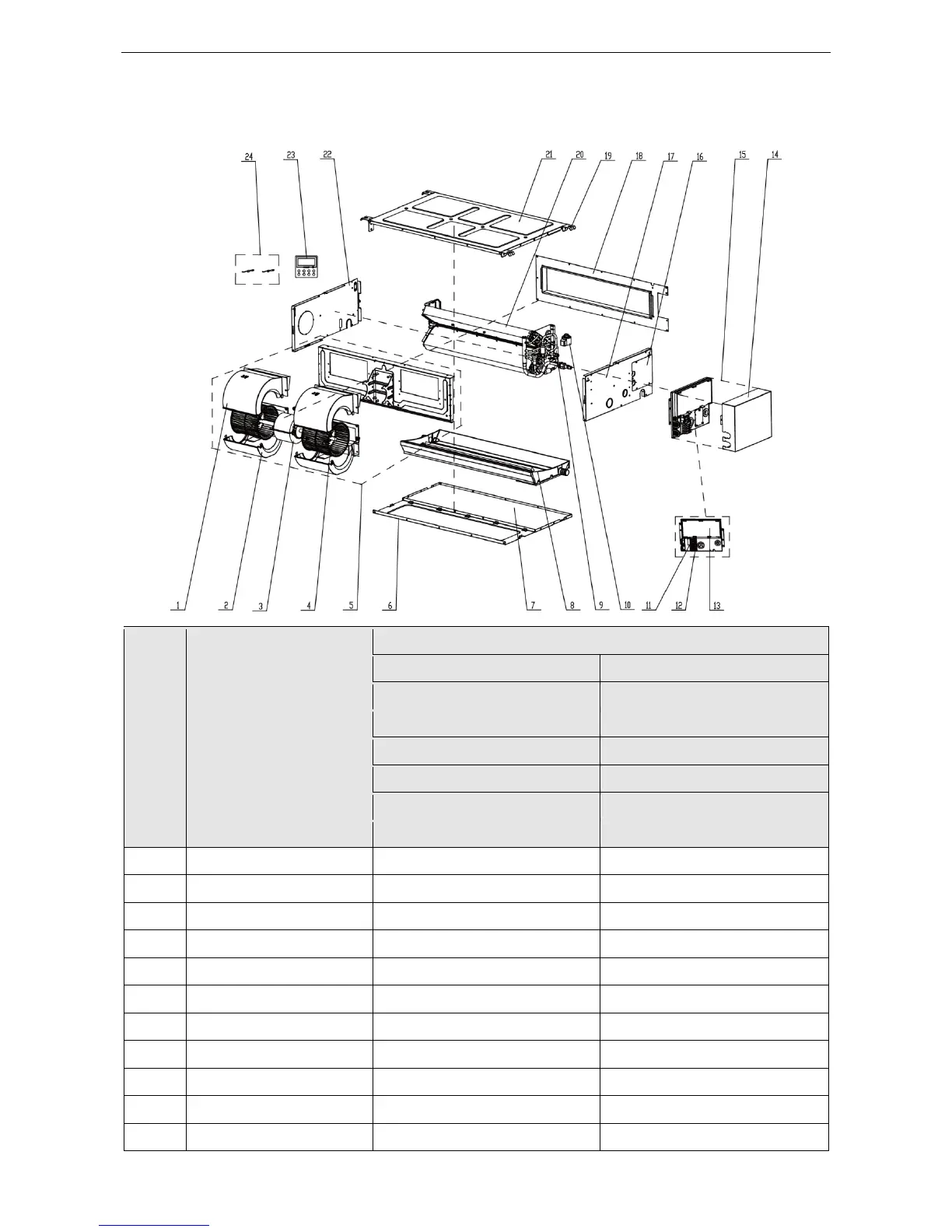

Exploded View of GMV-ND22PL/B-T、GMV-ND25PL/B-T、GMV-ND28PL/B-T、GMV-ND32PL/B-T GMV-
ND36PL/B-T：
No.
Name of part
For the following unit
Unit
Product Code
GMV-ND22PL/B-T
CM800N3560
GMV-ND25PL/B-T
CM810N0010
GMV-ND28PL/B-T
CM810N0020
GMV-ND32PL/B-T
CM800N3570
GMV-ND36PL/B-T
CM810N0030
Part code
Quantity
1
Propeller Housing(Upper)
` 26905200018
2
2
Propeller Housing(Lower)
` 26905200019
2
3
Fan Motor
` 15704100001
1
4
Centrifugal Fan
` 10425200003
2
5
Centrifugal fan assy
` 15404100031
1
6
Cover Plate
` 01265200057
1
7
Bottom Cover Plate Assy
` 01265200065
1
8
Water Tray Assy
` 01285200020
1
9
Electronic Expansion Valve
` 07334463
1
10
Electric Expand Valve Fitting
` 4304413215
1
11
Terminal Board
` 42011106
1
