Gree GMV-ND28TD/A-T Service Manual

MULTI VRF-Ⅱ INDOOR UNIT SERVICE MANUAL EUROPEAN/LATIN AMETICA (R410A)
95
Model
Power Cord Size
Air Switch
apacity
(A)
Minimum Sectional
Area of
Ground Wire
(mm
2
/AWG)
Minimum Sectional
Area of Power
Cord
(mm
2
/AWG)
GMV-NX450P/A(X4.0)-M
380-415V 3N ~50Hz
6
1.0/AWG18
1.0/AWG18
GMV-NDX224P/A-T
220~240V 1Ph 50Hz
208~230V 1Ph 60Hz
10
1.0/AWG18
1.0/AWG18
GMV-NDX280P/A-T
220~240V 1Ph 50Hz
208~230V 1Ph 60Hz
10
1.0/AWG18
1.0/AWG18
3.10 Installation of Slim Duct Type unit

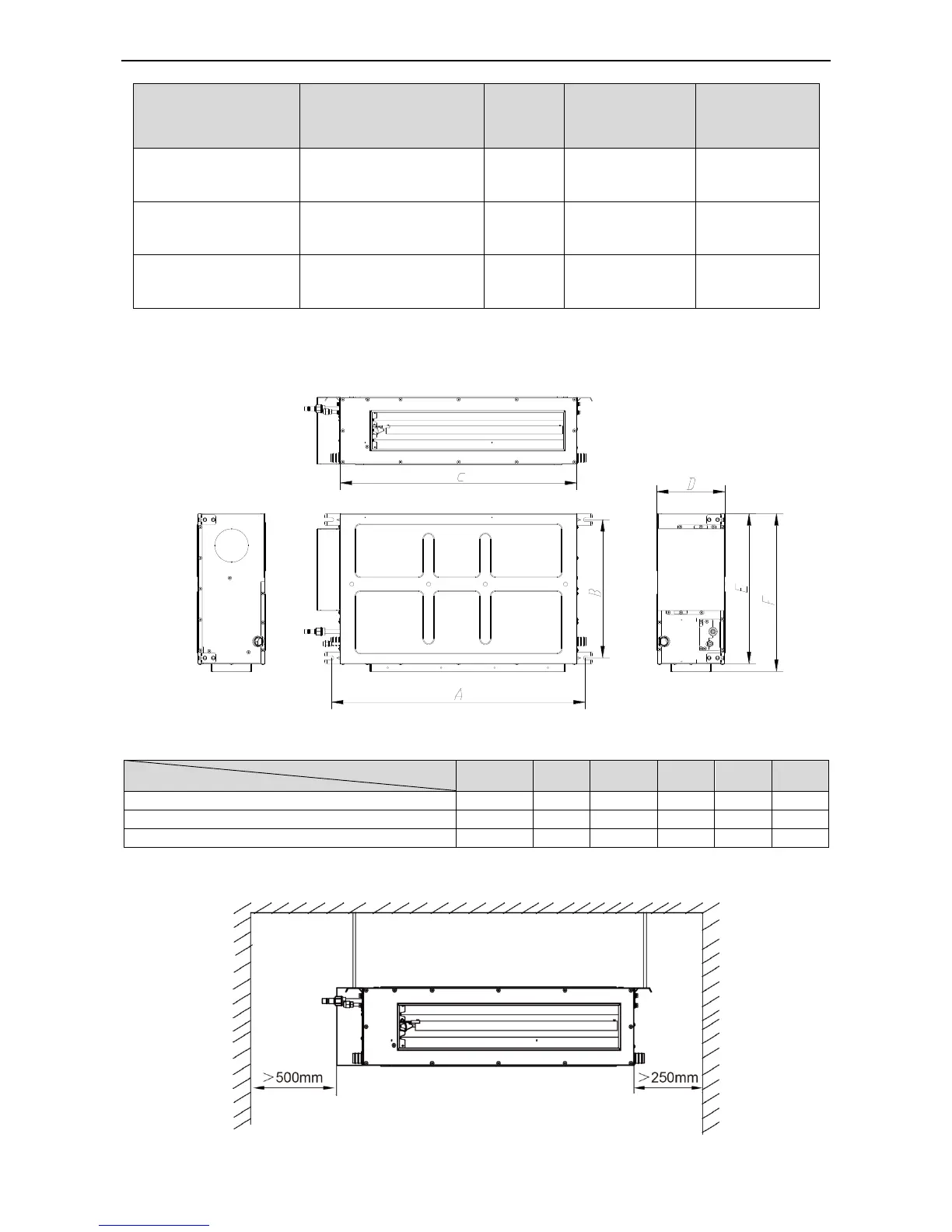

3.10.1 Outline and installation dimension
Unit: mm
Item
Model
A
B
C
D
E
F
GMV-ND22~36PL/B-T
760
415
710
200
450
475
GMV-ND40~63PL/B-T
1060
415
1010
200
450
475
GMV-ND72PL/B-T
1360
415
1310
200
450
475
3.10.2Installation space
Unit：mm

Gree GMV-ND28TD/A-T Specifications

General

Brand	Gree
Model	GMV-ND28TD/A-T
Category	Air Conditioner
Language	English
