43
Maintenance
Service Manual

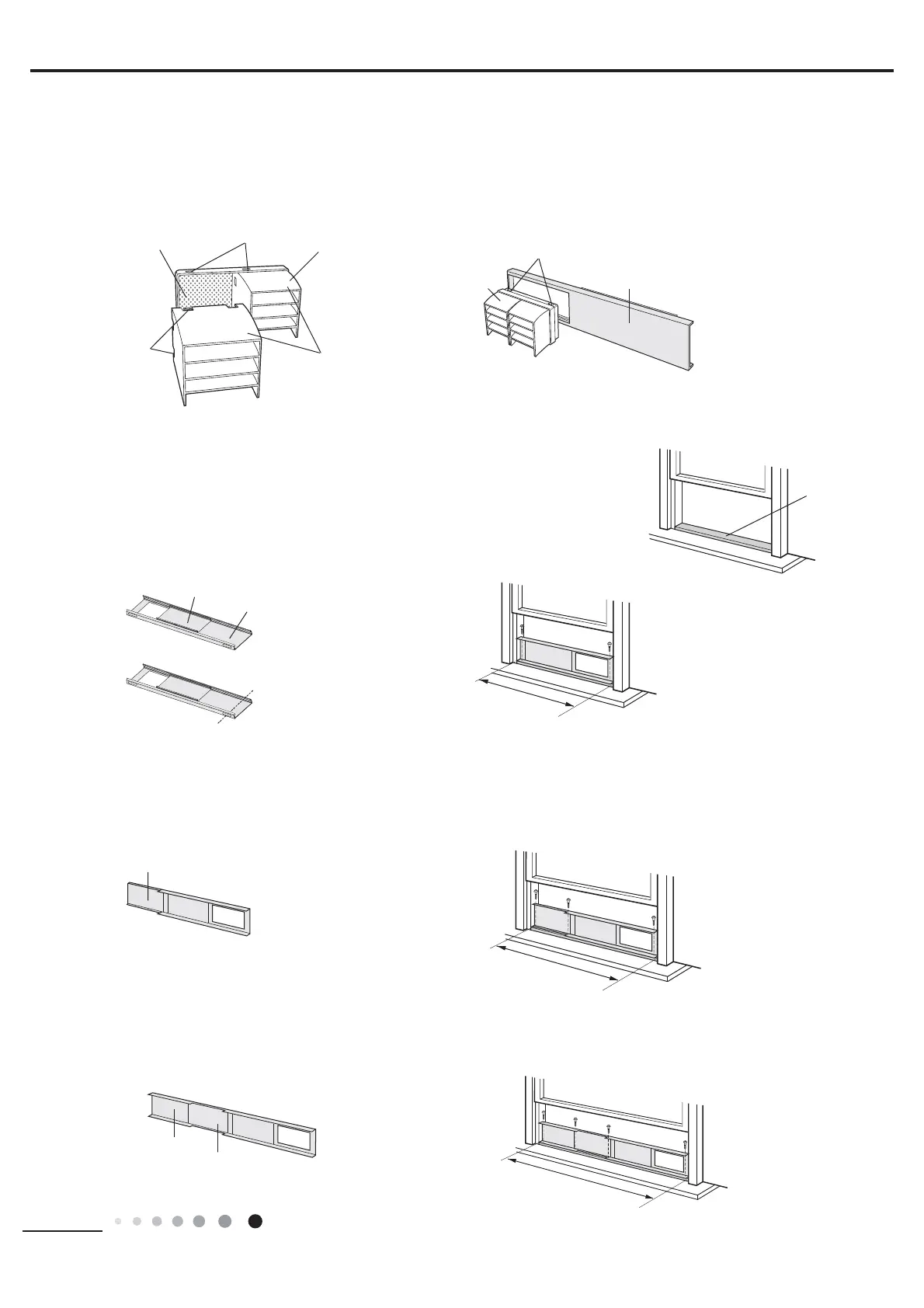

9.3 Installation in a double-hung sash window
1. Connect the rain guards to the insect guard net.(As show in Fig.10)
Insert all three projections on each rain guard into the holes in the insect guard net.
Side “A” will now be at the top, as indicated in the diagram.
2. Attach the guard combined above to the window panel.(As show in Fig.11)
Side “A” will now be at the top, as indicated in the diagram.
3. Cut the foam seal A to the proper length and attach it to the window stool.(As show in Fig.12)
4. Attach the window panel to the window stool.
Make sure that the exhaust cover is attached to the window panel.
Inner width of the window:20.5"(520mm)
Use the window panel.
The window panel cannot be installed in windows less than 20.5" (520mm) wide,as you
will be unable to shut the exhaust cover.
(1) Open the window sash and place the window panel on the window sill. (As show in Fig.13)
(2) Secure the window panel to the window stool with 2 screws.(As show in Fig.14)
Inner width of the window:20.5" (520mm)- 38.5" (980mm)
Use the window panel and the adjustment panel.
(1) Open the window sash and place the window panel on the window sill.
(As show in Fig.15)
(3) Secure the window panel to the sill with 3 screws.(As show in Fig.16)
Inner width of the window:38.5" (980mm) - 59" (1500mm)
Use the window panel, the adjustment panel and the extension panel.
(1) Open the window sash and place the window panel on the window sill.
(As show in Fig.17)
(3) Secure the window panel to the window sill with 4 screws.(As show in Fig.18)
Hole
Projec-
tion
Insect guard net
Rain guard
"A"
Fig.10 Fig.11
Fig.12
Fig.13
Fig.14
Fig.15
Fig.16
Fig.17
Fig.18
Window panel
Projection
"A"
Foam seal
Cut
Window panel
Exhaust cover
20.5"
Adjustment panel
20.5" - 38.5"
Extension panel
Adjustment panel
38.5" - 59"
To Next Page
