47
Maintenance
Service Manual

in Fig.15)

Fig.15
Fig.16
Fig.17
Fig.18

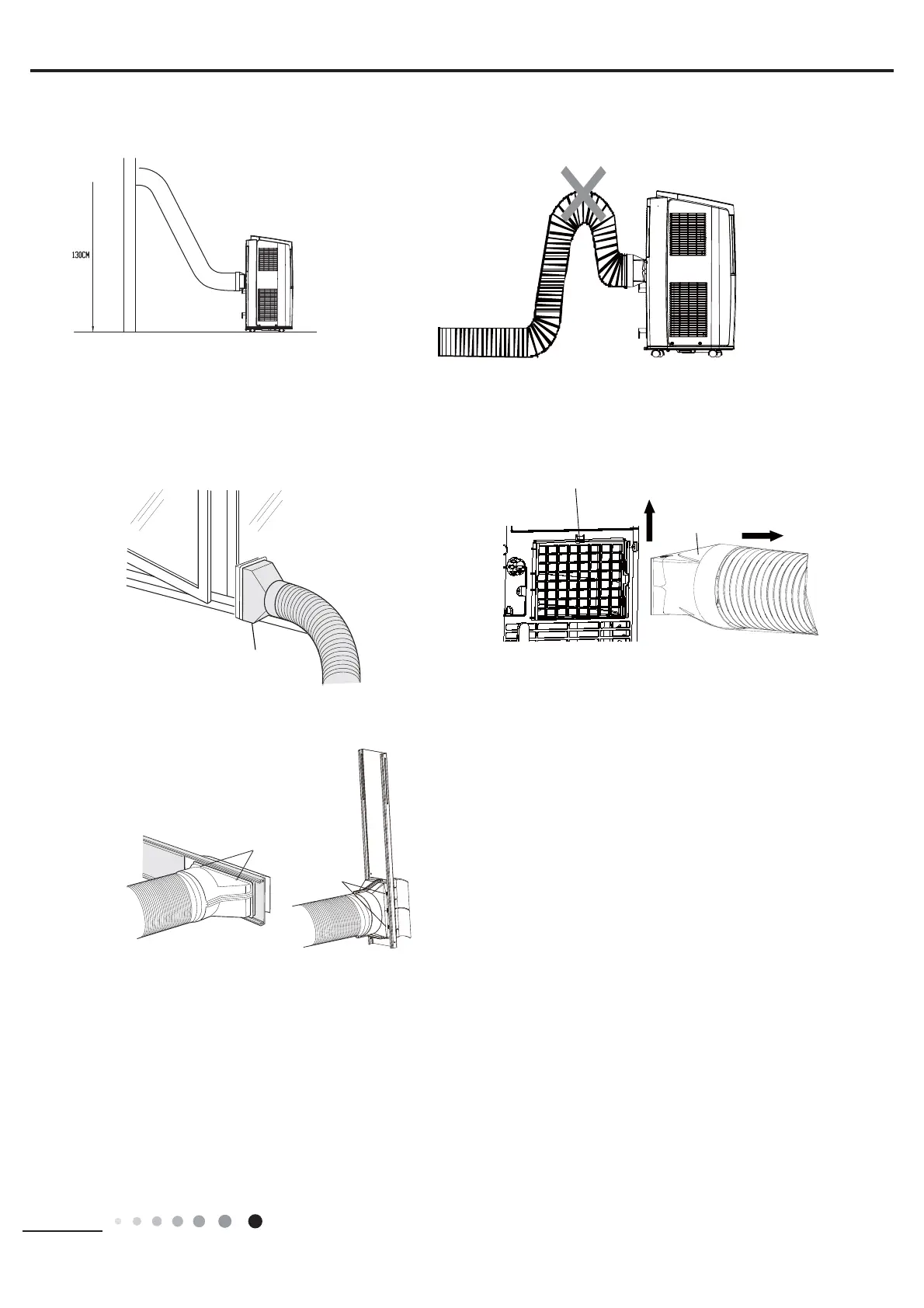

B. Disassemble heat discharge pipe
(1) Remove joint B
remove joint B from joint C.(As shown in Fig.17)
(2) Remove joint A: Press the clasp and lift joint A upwards to remove it.(As shown in Fig.18)
(3) Remove the window adapter. Pull out and remove the window adapter by pushing down two
“PUSH” markings, and slide and close the exhaust cover in the window panel. (Optional)
joint B+C
"PUSH"
"PUSH"
upwards
clasp
disassemble
joint A



9.6 Operation test
