39
Installation of outdoor unit

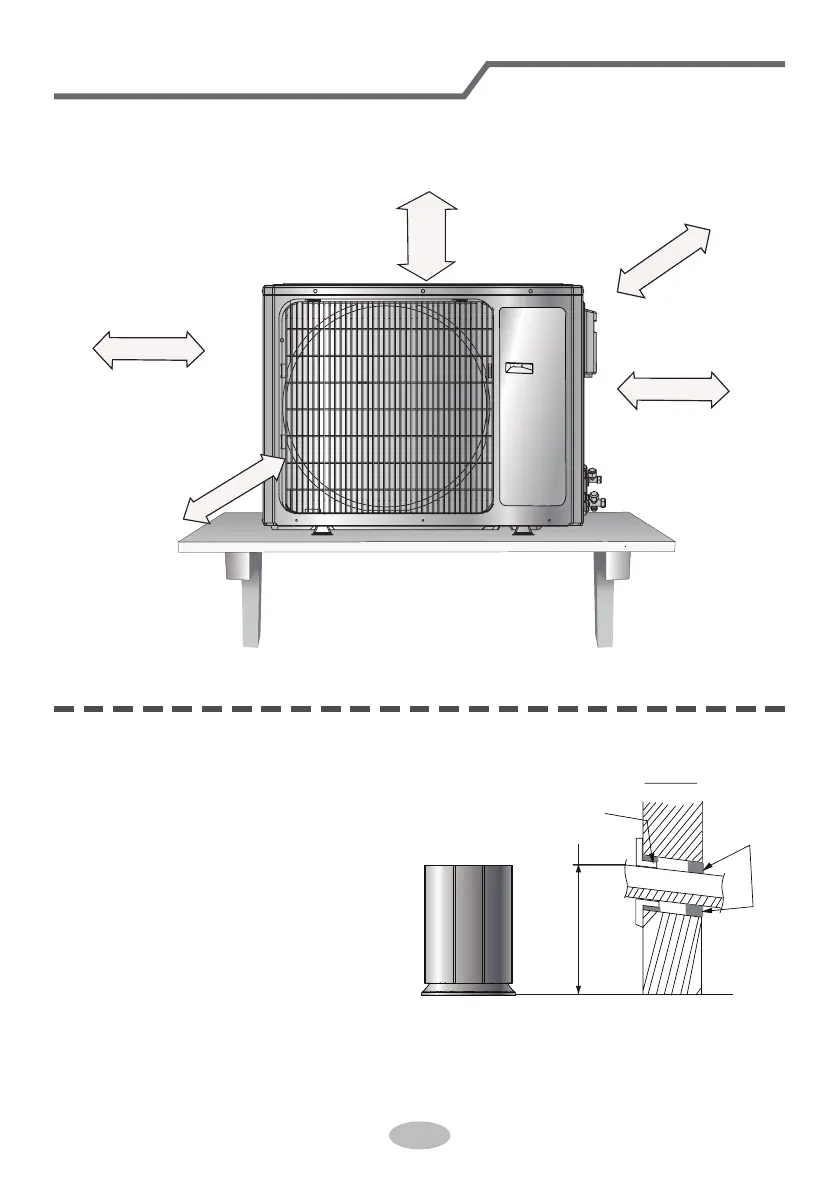

Installation dimension diagram of outdoor unit
At least 10cm
At least 50cm
At least 10cm
Air inlet
Space to the
obstruction
Space to the
obstruction
Space to the covering
At least
50cm
At least 200cm
Space to the obstruction
Step one: open piping hole
1. Confirm the position of pipe hole
and drill a hole inclined to outside.
(see fig at the right)
2. Assemble wall pipe to protect the
piping and cable.
3.
The distance between the highest
position of wall hole and the bottom
of air conditioner should be no more
than 50cm (If the height of wall hole
50cm
wall pipe
indoor outdoor
sealing
gum
doesn’t meet the requirement, please drill hole again to avoid water leakage.)
