inner
hexagonspanner
close
open
liquid valve
gas valve
Use vacuum pump
1. Remove the valve caps on the liquid valve and gas valve
and the nut of refrigerant charging vent.
2. Connect the charging hose of piezometer to the refrigerant
charging vent of gas valve and then connect the other charging
hose to the vacuum pump.
3. Open the piezometer completely and operate for 10-15min
to check if the pressure of piezometer remains in -0.1MPa.
4. Close the vacuum pump and maintain this status for 1-2min
to check if the pressure of piezometer remains in -0.1MPa. If
the pressure decreases, there may be leakage.
5. Remove the piezometer, open the valve core of liquid valve
and gas valve completely with inner hexagon spanner.
6. Tighten the screw caps of valves and refrigerant charging
vent.
Leakage detection
1. With leakage detector
Check if there is leakage with leakage detector.
2. With soap water:
If leakage detector is not available, please use soap water for
leakage detection. Apply soap water at the suspected position
and keep the soap water for more than 3min. If there are air
bubbles coming out of this position, there's a leakage.

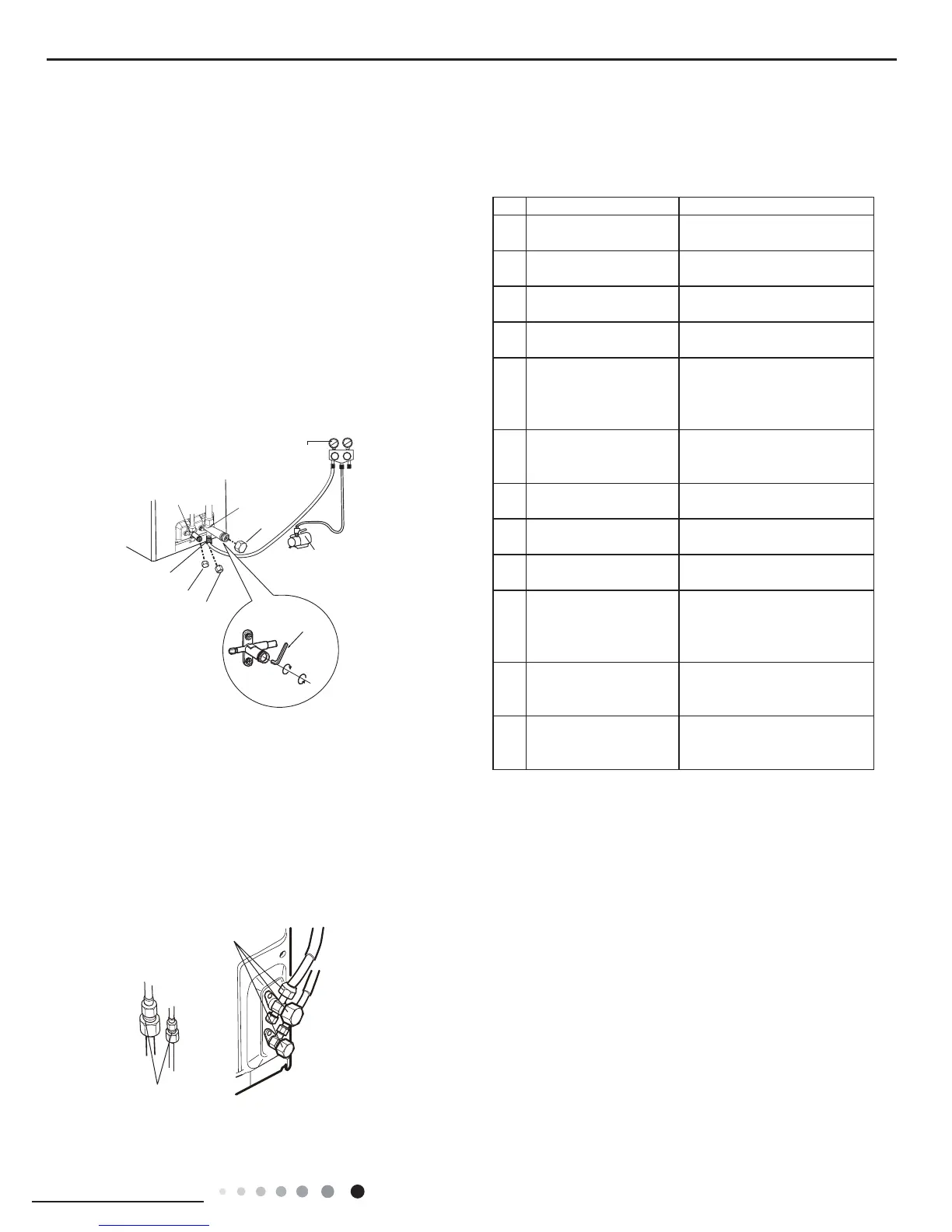

8.8 Vacuum Pumping and Leak Detection
Leakage detection
point of outdoor unit
Leakage detection
point of indoor unit
1. Check after Installation
Check according to the following requirement after finishing
installation.
2. Test operation
(1) Preparation of test operation
The client approves the air conditioner installation.
Specify the important notes for air conditioner to the client.
(2) Method of test operation
Put through the power, press ON/OFF button on the remote
controller to start operation.Press MODE button to select AUTO,
COOL, DRY, FAN and HEAT to check whether the operation is
normal or not.If the ambient temperature is lower than 16ºC, the
air conditioner can’t start cooling.
● In order to prevent tilting due to an accident, please install the
anti-tilting chain.
Installation steps:
1. Remove the screw in the anti-tilting hole at the top cover of
indoor unit (see Figure 1).
2. Take out the anti-tilting chain from the accessories; put it into
the anti-tilting hole and then x it with screw (see Figure 2).
3. Fix the other end of anti-tilting chain on the wall with
screw(ST4.2X38) (see Figure 2).
8.9 Check after Installation and Test
Operation
8.10 Installation of anti-tilting Chain
NO. Items to be checked Possible malfunction
1
Has the unit been
installed rmly?
The unit may drop, shake or
emit noise.
2
Have you done the
refrigerant leakage test?
It may cause insufcient cooling
(heating) capacity.
3
Is heat insulation of
pipeline sufcient?
It may cause condensation and
water dripping.
4 Is water drained well?
It may cause condensation and
water dripping.
5
Is the voltage of power
supply according to the
voltage marked on the
nameplate?
It may cause malfunction or
damage the parts.
6
Is electric wiring and
pipeline installed
correctly?
It may cause malfunction or
damage the parts.
7
Is the unit grounded
securely?
It may cause electric leakage.
8
Does the power cord
follow the specication?
It may cause malfunction or
damage the parts.
9
Is there any obstruction
in air inlet and air outlet?
It may cause insufcient cooling
(heating) capacity.
10
The dust and
sundries caused
during installation are
removed?
It may cause malfunction or
damaging the parts.
11
The gas valve and liquid
valve of connection pipe
are open completely?
It may cause insufcient cooling
(heating) capacity.
12
Is the inlet and outlet
of piping hole been
covered?
It may cause insufcient cooling
(heating) capacity or waster
eletricity.
