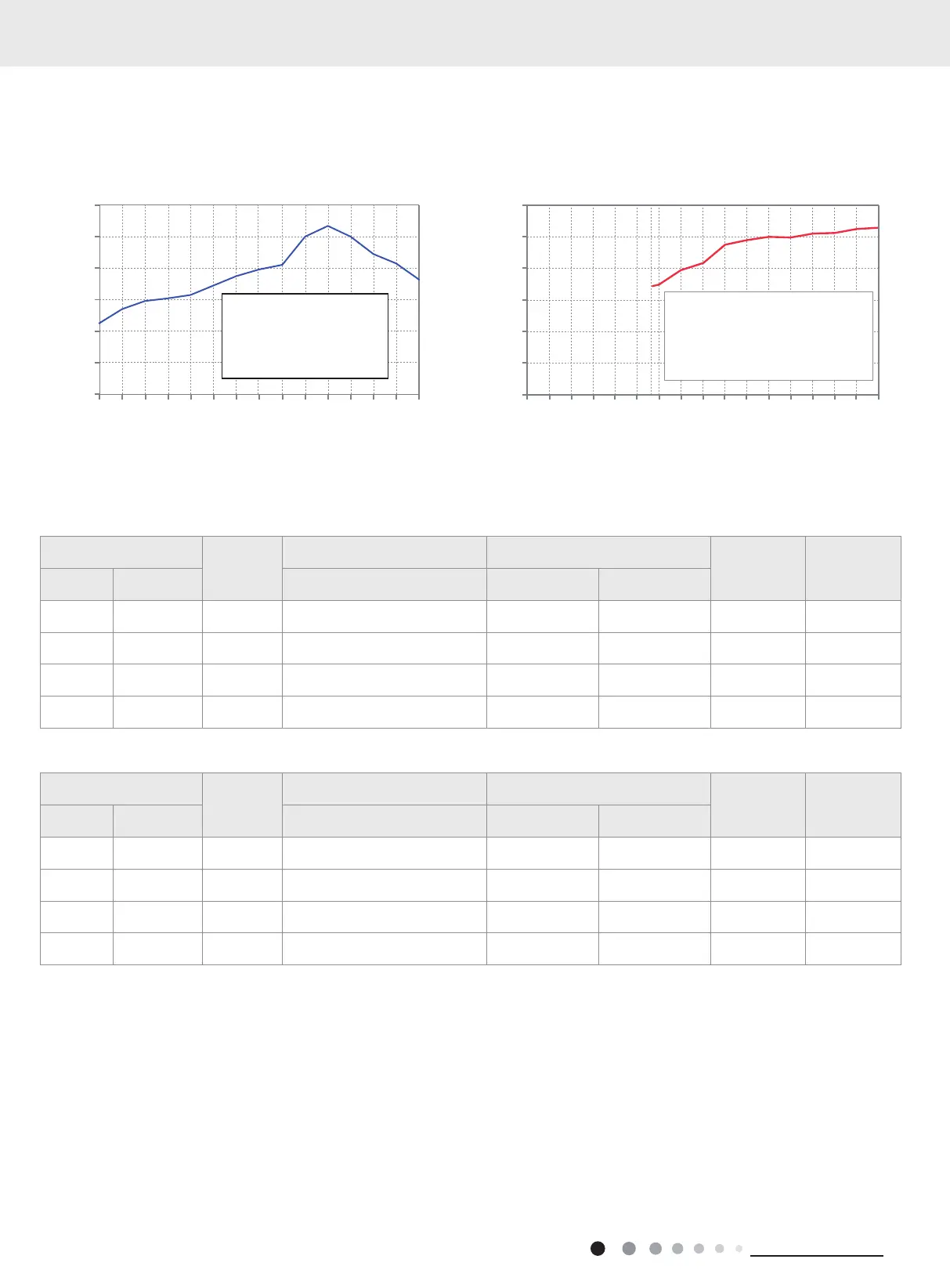

2.3 Cooling and Heating Data Sheet in Rated Frequency
Instruction:
T1: Inlet and outlet pipe temperature of evaporator
T2: Inlet and outlet pipe temperature of condenser
P: Pressure at the side of big valve
Connection pipe length: 24.6 ft.
Cooling:
Heating:
Rated cooling condition(°F)
(DB/WB)
Model
Pressure of gas pipe connecting
indoor and outdoor unit
Inlet and outlet pipe temperature of
heat exchanger
Fan speed of
indoor unit
Fan speed of
outdoor unit
Indoor Outdoor PSIG T1 (°F) T2 (°F)
80/66.9 95/- 09K 130~142
in:46.4~51.8
out:51.8~57.2
in:167~181.4
out:98.6~118.4
Super High High
80/66.9 95/- 12K 130~142
in:46.4~51.8
out:51.8~57.2
in:167~181.4
out:98.6~118.4
Super High High
80/66.9 95/- 18K 130~142
in:46.4~51.8
out:51.8~57.2
in:167~181.4
out:98.6~118.4
Super High High
80/66.9 95/- 24K 130~142
in:46.4~51.8
out:51.8~57.2
in:167~181.4
out:98.6~118.4
Super High High
Rated heating condition(°F)
(DB/WB)
Model
Pressure of gas pipe connecting
indoor and outdoor unit
Inlet and outlet pipe temperature of
heat exchanger
Fan speed of
indoor unit
Fan speed of
outdoor unit
Indoor Outdoor PSIG T1 (°F) T2 (°F)
70/60 19.94/19.04 09K 362~406
in:167~181.4
out:98.6~113
in:33.8~37.4
out:35.6~42.8
Super High High
70/60 19.94/19.04 12K 362~406
in:167~181.4
out:98.6~113
in:33.8~37.4
out:35.6~42.8
Super High High
70/60 19.94/19.04 18K 507~550
in:167~181.4
out:98.6~113
in:33.8~37.4
out:35.6~42.8
Super High High
70/60 19.94/19.04 24K 507~550
in:167~181.4
out:98.6~113
in:33.8~37.4
out:35.6~42.8
Super High High
Capacity ratio(%)
Cooling
Heating
Capacity ratio(
%)
Outdoor temp.(°F) Outdoor temp.(°F)
0
20
40
60
80
100
120
0
20
40
60
80
100
120
0 5 17 23 32 41 50 57 67 75 86 95 104 113 122
-13-505101720
19.4
24 32 41 43 47 53 59 64 70
75.2
Conditions
Indoor:DB80°F/WB66.9°F
Outdoor:DB95°F
Indoor air flow:Super High
Pipe length:24.6ft
Conditions
Indoor: DB70°F
Outdoor: DB19.94°F/WB19.04°F
Indoor air flow: Super High
Pipe length: 24.6 ft
Cooling operation ambient temperature range is 0.4
o
F~122
o
F.
Hheating operation ambient temperature range is 19.4
o
F~75.2
o
F.
