Technical Information
Service Manual

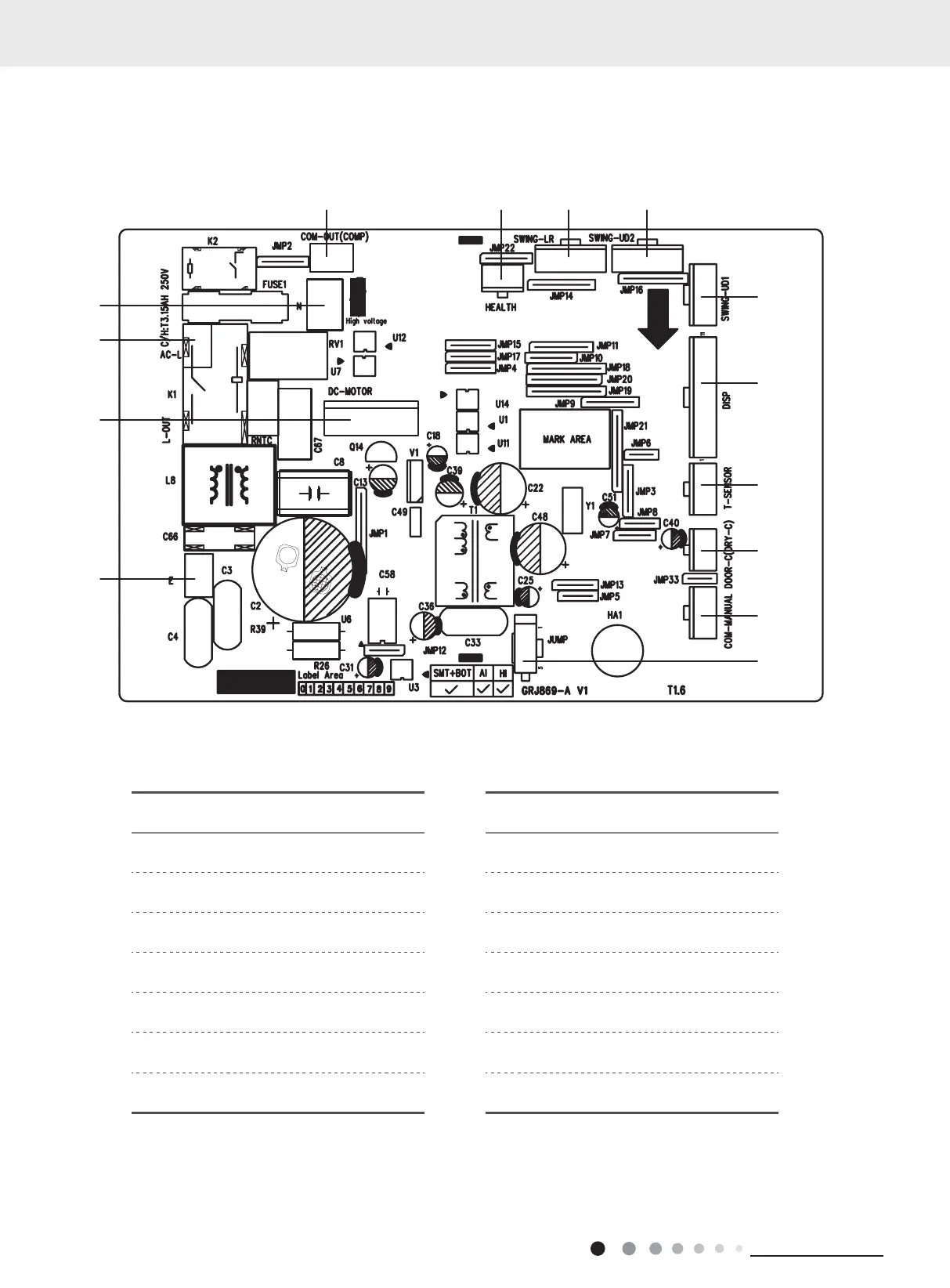

5.2 PCB Printed Diagram
Indoor Unit
1
2
3
4
6758
9
10
11
12
13
14
No. Name No. Name
1 Grounding wire 8 Up&down swing interface 2
2 DC fan interface 9 Up&down swing interface 1
3 Live wire 10 Display interface
4 Neutral wire 11 Interface of temperature sensor
5 Communication wire 12 Interface of gate control
6 Interface of cold plasma 13 Wired controller
7 Left&right swing interface 14 Jumper cap
12/18/24K
