Technical Information
Service Manual

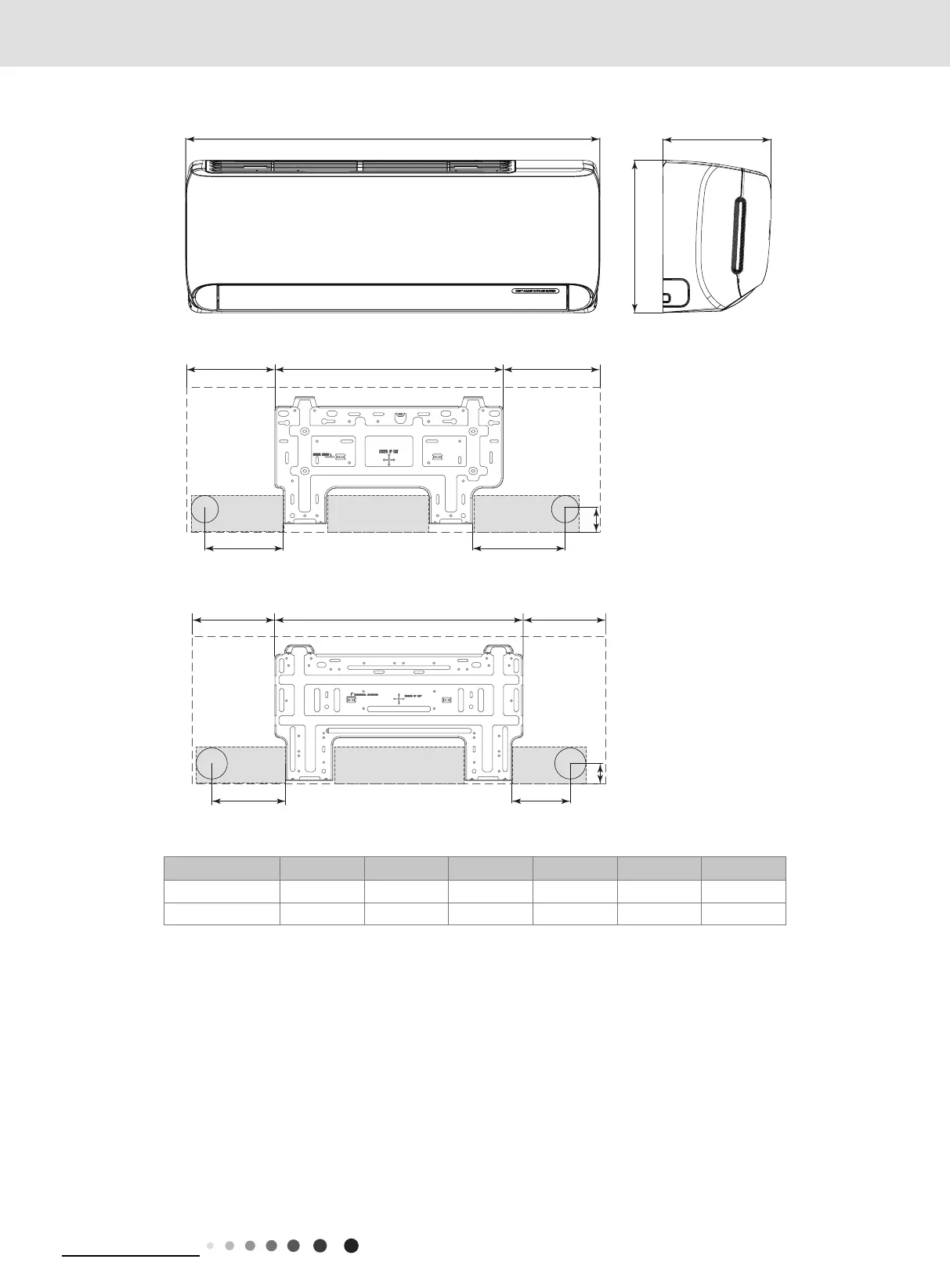

3. Outline Dimension Diagram
3.1 Indoor Unit
Model W H D W1 W2 W3
ATC 835 275 200 178 462 195
ATE 1078 333 246 258.5 561.5 258
Unit:mm
Unit:mm(inch)
WD
H
W2W1 W3
ATA/ATB
70
(2 3/4)
75
(2 61/64)
43
(1 11/16)
W2 W3W1
159
(6 17/64)
197
(7 3/4)
ATC
43
(1 11/16)
W1 W2 W3
ATD
173
(6 13/16)
138
(5 7/16)
43
(1 11/16)
W1
W2
W3
ATE
240
(9 29/64)
206
(8 7/64)
43
(1 11/16)
