Technical Information
Service Manual
6. Function and Control

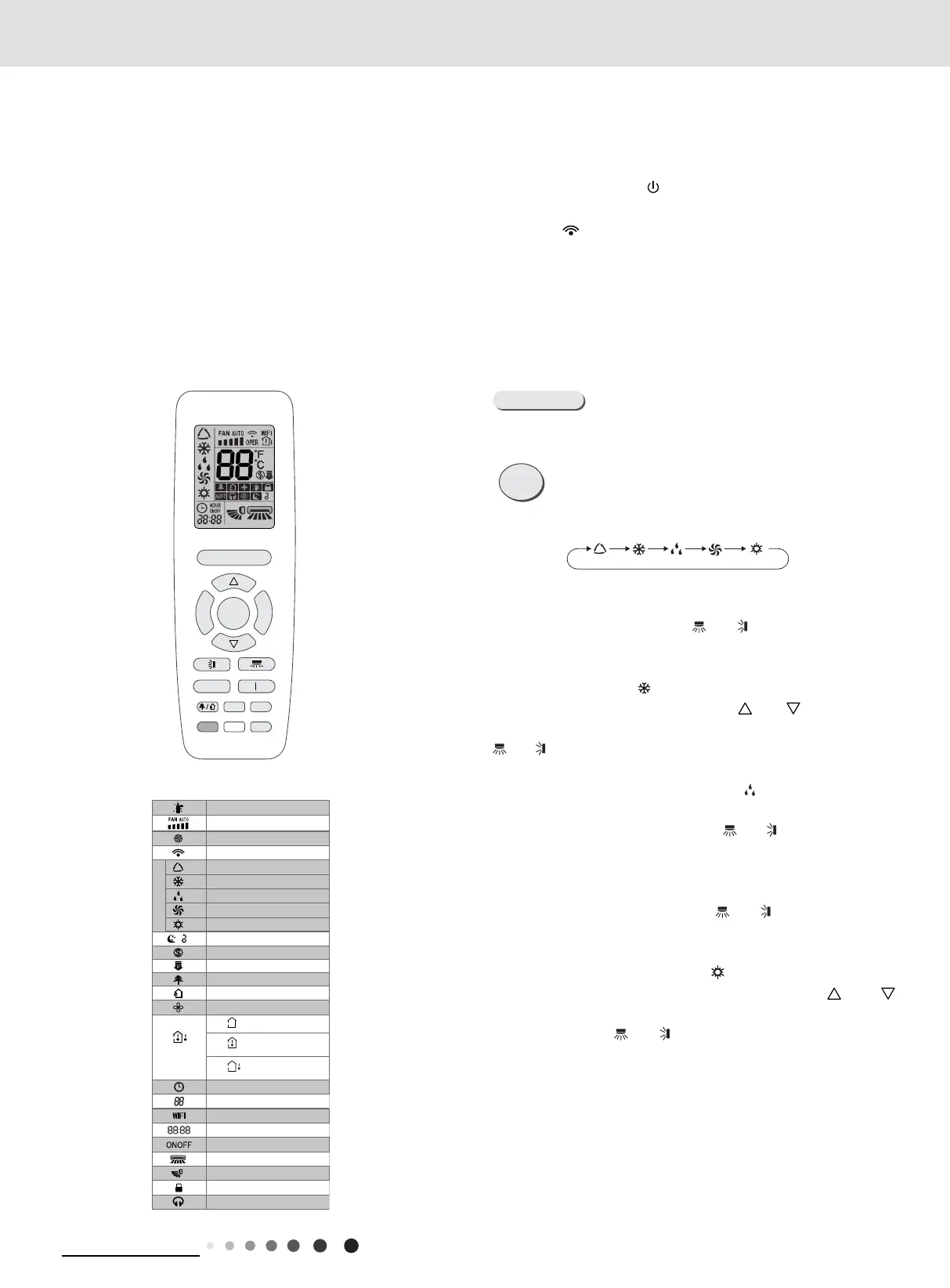

6.1 Remote Controller Introduction
Introduction for icons on display screen
TURBO
FAN
MODE
ON/OFF
I FEEL
T-ON T-OFF
TEMP
CLOCK
LIGHT
WiFi
SLEEP
Set temperature
WiFi function
Sleep mode
Health mode
Scavenging function
8ȭ heating function
Power limiting operation
X-FAN function
Left & right swing
Up & down swing
Child lock
Quiet
Set temp.
Outdoor ambient
temp.
temp.
Clock
Indoor ambient
Operation mode
Set time
TIMER ON / TIMER OFF
Turbo mode
Send signal
Auto mode
Cool mode
Temp.
Dry mode
Fan mode
Heat mode
Set fan speed
display type
NOTE:
● This is a general use remote controller. It could be used for the air conditioner with multifunction. For the functions which the model
doesn't have, if press the corresponding button on the remote controller, the unit will keep the original running status.
● After putting through the power, the air conditioner will give out a sound. Operation indicator " " is ON. After that, you can operate the
air conditioner by using remote controller.
● Under on status, pressing the button on the remote controller, the signal icon " " on the display of remote controller will blink once
and the air conditioner will give out a "di" sound, which means the signal has been sent to the air conditioner.
● As for the models with functions of WiFi or wired controller, the indoor unit must has been controlled by standard remote controller under
auto mode rst, and then the function of adjustable temperature under auto mode can be realized by APP or the wired controller.
● This remote controller can adjust the temperature under auto mode. When matching with the unit which is without the function of
adjustable temperature under auto mode, the set temperature under auto mode may be invalid, or the displayed set temperature on the
unit is not same as that on the remote controller under auto mode.
ON/OFF
Press this button to turn on the unit. Press this button again to turn
off the unit.
Press this button to select your required operation mode.
MODE
● When selecting auto mode, air conditioner will operate
automatically according to ex-factory setting. Press "FAN" button
can adjust fan speed. Press "
" / " " button can adjust fan
blowing angle.
● After selecting cool mode, air conditioner will operate under cool
mode. Cool indicator "
" on indoor unit is ON. (This indicator is
not available for some models.) Press "
" or " "button to adjust
set temperature. Press "FAN" button to adjust fan speed. Press "
" / " " button to adjust fan blowing angle.
● When selecting dry mode, the air conditioner operates at low
speed under dry mode. Dry indicator "
" on indoor unit is ON.
(This indicator is not available for some models.) Under dry mode,
fan speed can’t be adjusted. Press "
" / " "button to adjust fan
blowing angle.
● When selecting fan mode, the air conditioner will only blow fan,
no cooling and no heating. All indicators are OFF. Press "FAN"
button to adjust fan speed. Press "
" / " " button to adjust fan
blowing angle.
● When selecting heating mode, the air conditioner operates
under heat mode. Heat indicator "
" on indoor unit is ON. (This
indicator is not available for some models.) Press " " or " "
button to adjust set temperature. Press "FAN" button to adjust
fan speed. Press "
" / " " button to adjust fan blowing angle.
(Cooling only unit won’t receive heating mode signal. If setting
heat mode with remote controller, press ON/OFF button can’t start
up the unit).
NOTE:
● For preventing cold air, after starting up heat mode, indoor unit
will delay 1~5 minutes to blow air (actual delay time depends on
indoor ambient temperature).
Buttons on remote controller
DRY
FAN
HEATCOOL
AUTO
