Technical Information
Service Manual

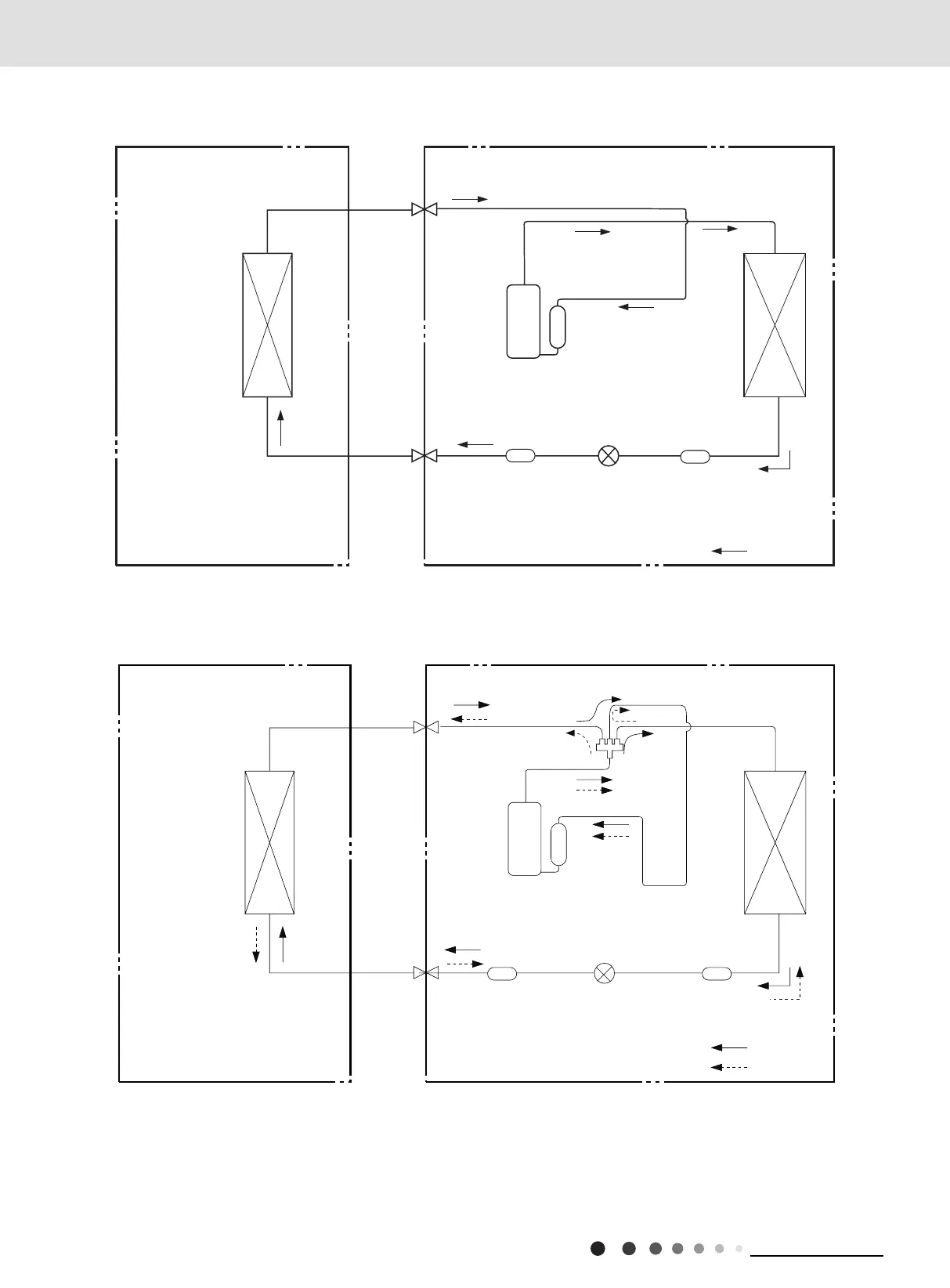

4. Refrigerant System Diagram
Connection pipe specication:
Liquid pipe:1/4"
Gas pipe:3/8" 12K
Gas pipe:1/2" 24/28K
Cooling and heating model
Cooling model
Indoor unit
COOLING
4-Way valve
HEATING
Outdoor unit
Discharge
Suction
Heat
exchanger
(evaporator)
Heat
exchanger
(condenser)
Valve
Valve
side
Liquid pipe
Gas pipe
side
Strainer Electric
expand
valve
Compressor
Accumlator
Strainer
Indoor unit
COOLING
4-Way valve
HEATING
Discharge
Outdoor unit
Suction
Heat
exchanger
(evaporator)
Heat
exchanger
(condenser)
Valve
Valve
side
Liquid pipe
Gas pipe
side
Strainer
Strainer
Capillary
Accumlator
Compressor
Indoor unit
Outdoor unit
Accumlator
COOLING
Discharge
Suction
Heat
exchanger
(evaporator)
Heat
exchanger
(condenser)
Valve
Valve
Liquid pipe
side
Gas pipe
side
Compressor
Strainer
Strainer
Electric
expand
valve
