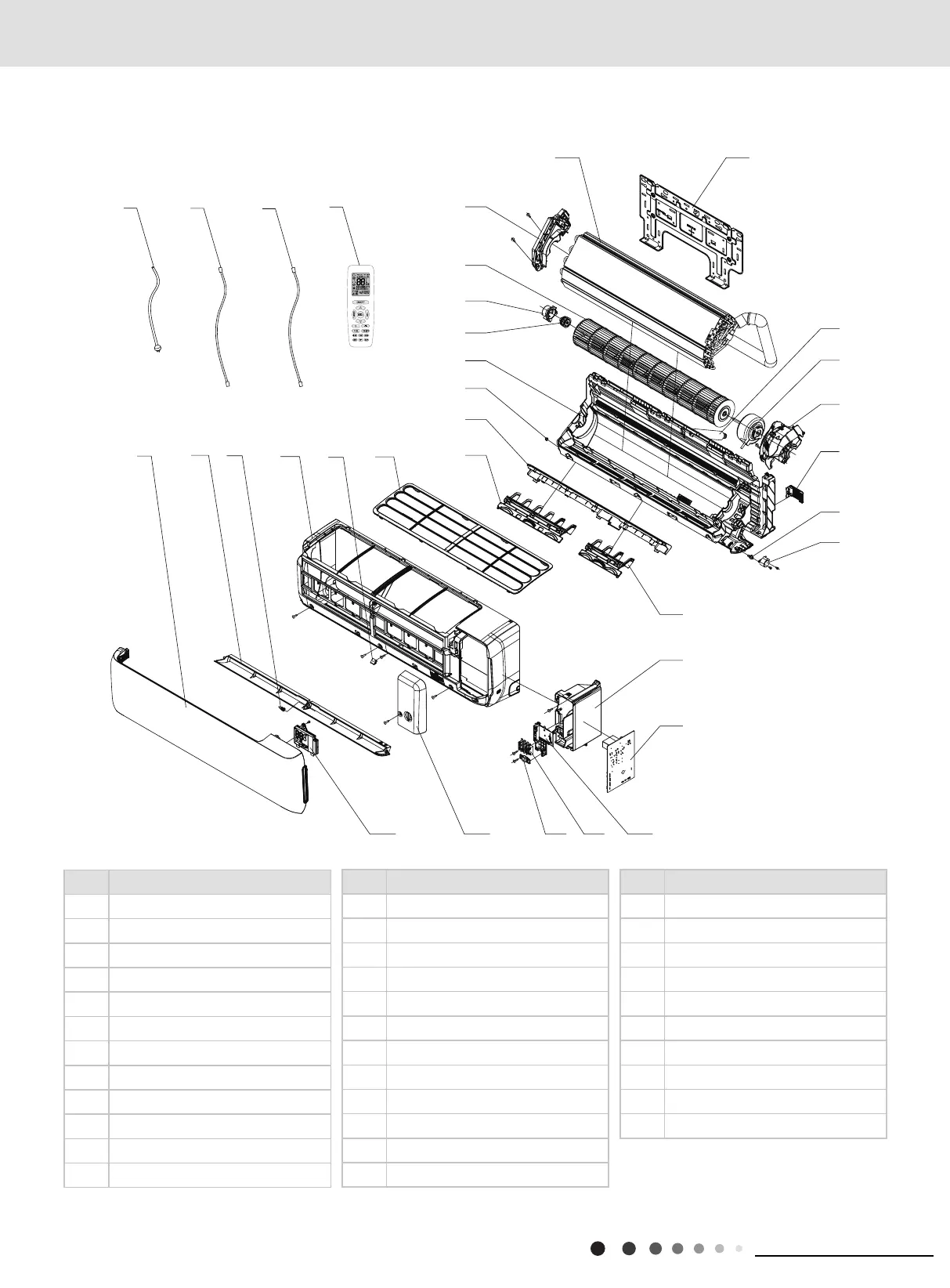

10. Exploded View and Parts List
10.1 Indoor Unit
ATC
Some models may not contain some parts, please refer to the actual product.
NO. Description
1 Front Panel
2 Guide Louver
3 Axile Bush
4 Front Case
5 Screw Cover
6 Filter Sub-Assy
7 Air Louver (left)
8 Helicoid Tongue
9 Left Axile Bush
10 Rear Case Sub-Assy
11 O-Gasket sub-assy of Bearing
12 Ring of Bearing
NO. Description
13 Cross Flow Fan
14 Evaporator Support
15 Evaporator Assy
16 Wall Mounting Frame
17 Drainage Hose
18 Fan Motor
19 Motor Press Plate
20 Connecting pipe clamp
21 Crank
22 Stepping Motor
23 Air Louver(right)
24 Electric Box Assy
NO. Description
25 Main Board
26 Supporter(Electric Box)
27 Terminal Board
28 Cable Clamp
29 Electric Box Cover
30 Display Board
31 Power Cord
32 Connecting Cable
33 Connecting Cable
34 Remote Controller
The component picture is only for reference; please refer to the actual product.
