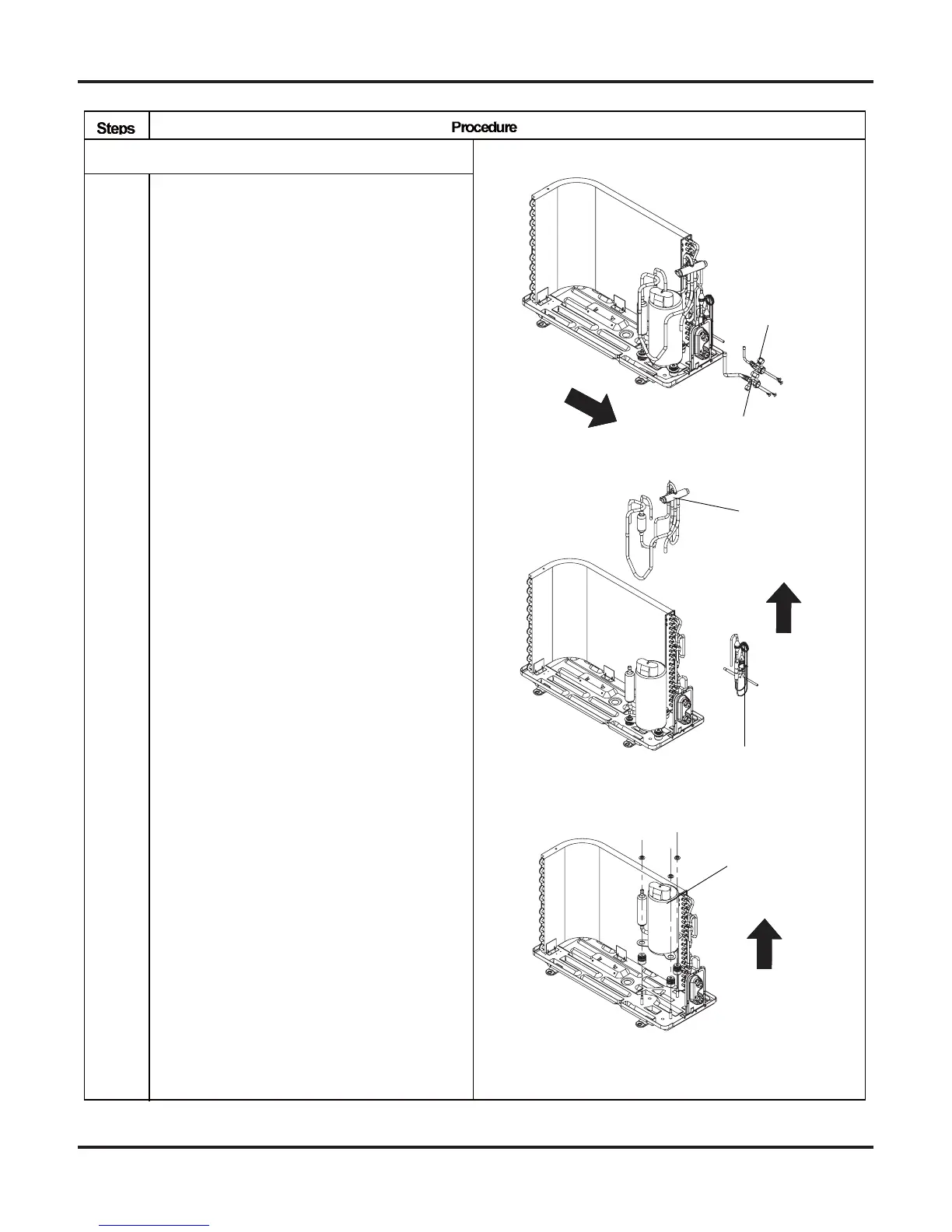

10. Remove compressor
Remove the 2 screws fixing the gas valve. Unsolder
the welding joint connecting the gas valve and the
air-return pipe. Remove the gas valve.
(NOTE: when unsoldering, wrap the gas valve with
a wet cloth completely to avoid damage to the valve
caused by high temperature.)
Remove the 2 screws fixing the liquid valve. Unsolder
the welding joint connecting the liquid valve and the
Y-type pipe. Remove the liquid valve.
(NOTE: Discharge the refrigerant completely before
unsoldering.)
Unsolder welding joint connecting the capillary, the
valve and the outlet pipe of condenser to remove the
capillary. Do not block the capillary with welding slag
during unsoldering. Unsolder the pipes connected to
the compressor. Unsolder the welding joint
connecting the 4-way valve to remove it.
Remove the 3 foot nuts on the compressor.
Remove the compressor.
compressor
capillary
liquid valve
gas valve
4-way valve
