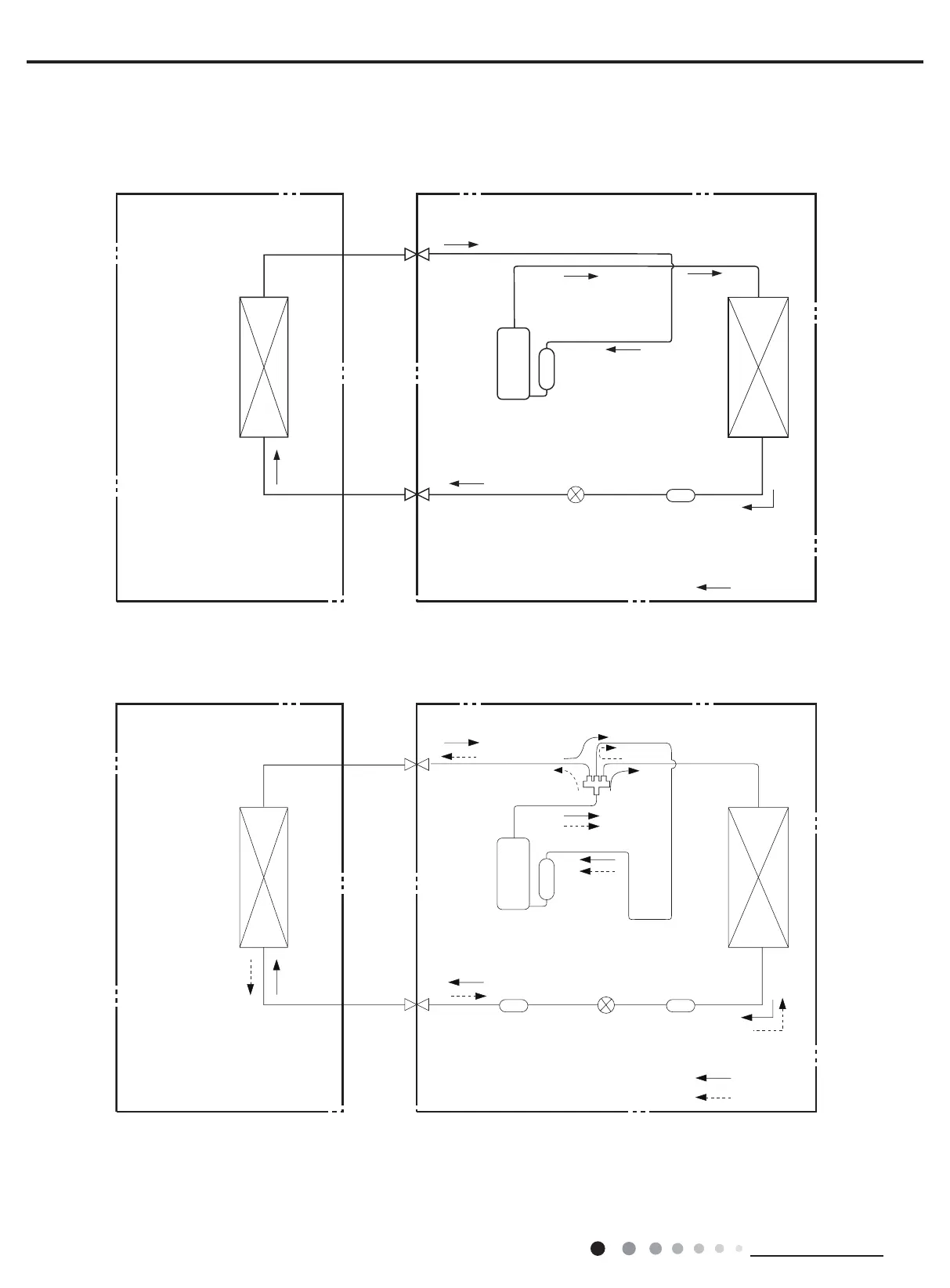

Technical Information
Service Manual
Cooling only model
36K except VIRU36HP230V1AH :
Cooling and heating model
Indoor unit
Outdoor unit
COOLING
HEATING
4-Way valve
Discharge
Suction
Heat
exchanger
(evaporator)
Heat
exchanger
(condenser)
Heat
exchanger
(condenser)
Valve
Valve
Liquid pipe
side
Gas pipe
side
Strainer
Electron
expansion
valve
Strainer
Electron
expansion
valve
Accumlator
Compressor
Indoor unit
Outdoor unit
Accumlator
COOLING
Discharge
Suction
Heat
exchanger
(evaporator)
Valve
Valve
Liquid pipe
side
Gas pipe
side
Compressor
Strainer
Connection pipe specication:
Liquid pipe:1/4 inch
Gas pipe:5/8 inch

Gree GWC30QF-D3DNB4G Specifications

General

Brand	Gree
Model	GWC30QF-D3DNB4G
Category	Air Conditioner
Language	English
