11. Removal Procedure
11.1 Removal Procedure of Indoor Unit
Warning: Be sure to wait for a minimum
of 20 minutes after turning off all power
supplies and discharge the refrigerant
completely before removal.

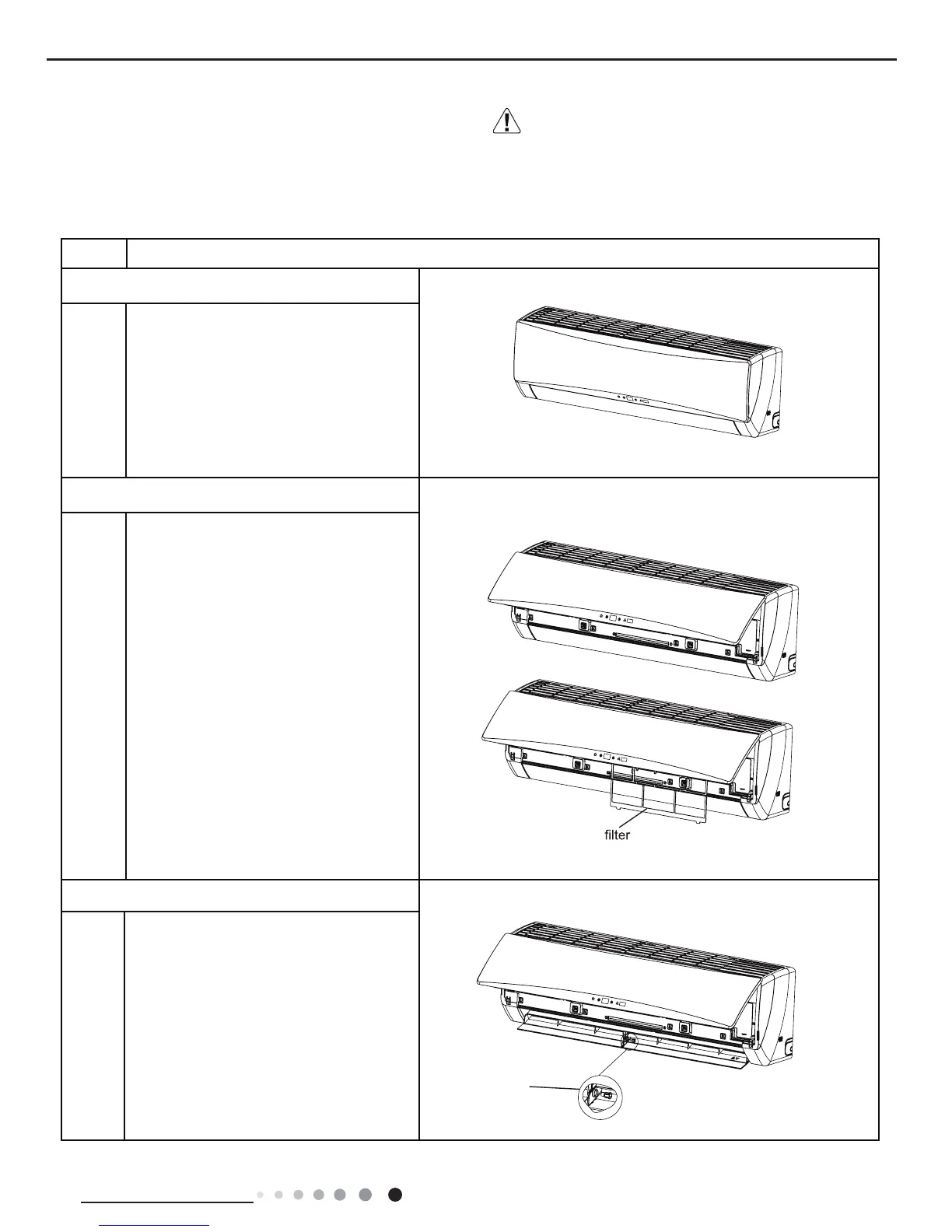

1. Before disassembling the unit
Before disassembling the unit.
2. Remove filter
Open the panel.
Loosen the clasps on filter, push the
filter inward and then pull it upward,
then the filter can be removed.
a
b
3.Remove guide louver
Remove the axial bushing of big
guidelouver.
a
axial bushing
Steps Procedure
To Next Page
