Procedure

Step

Remove one screw on magnetic coil, and

then remove the magnetic coil.

Unsolder the spot weld between capillary with

valve and condenser; remove two screws

xing the gas valve; unsolder the spot weld

connecting gas valve and air-return pipe, and

then remove the gas valve.

Remove two screws xing the liquid valve;

unsolder the spot weld connecting liquid valve

and Y-type pipe, and then remove the liquid

valve.

Note:

When unsoldering the spot weld, wrap the

gas valve with wet cloth completely to avoid

damaging the valve due to high temperature.

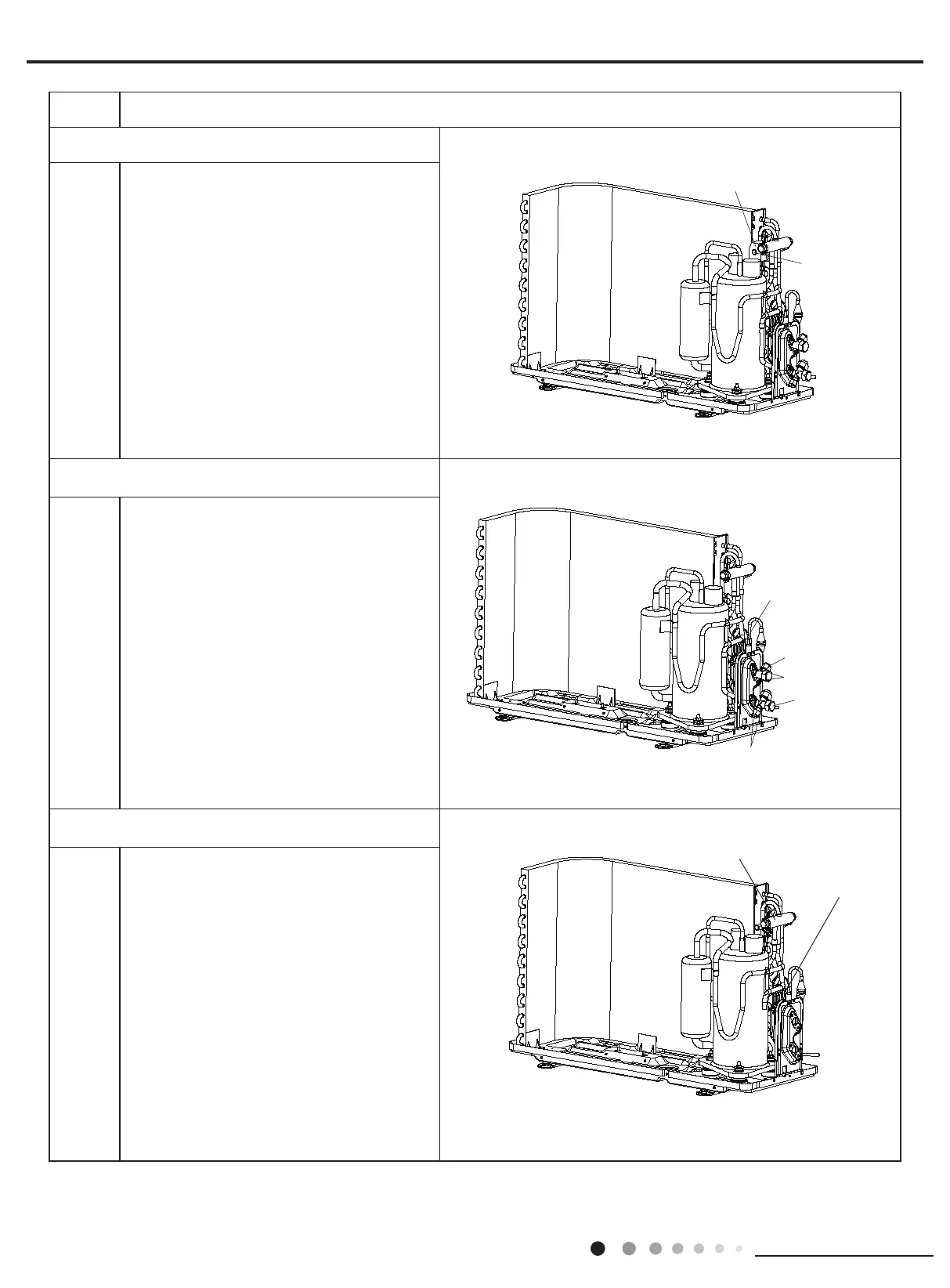

Magnetic coil

10. Remove magnetic coil

11. Remove gas valve and liquid valve

Screw

Liquid valve

Gas valve

Screws

Capillary sub-assy

4-way valve assy

12. Remove 4-way valve assy and capillary sub-assy

Unsolder the spot weld of 4-way valve assy,

capillary, compressor and condenser, and

then remove the 4-way valve assy and

capillary sub-assy.

Note:

When unsoldering the spot weld, wrap

the 4-way valve with wet cloth completely

to avoid damaging the valve due to high

temperature.
