Gree GWH12QB-K6DNB8I User Manual

16
Technical Information
Service Manual

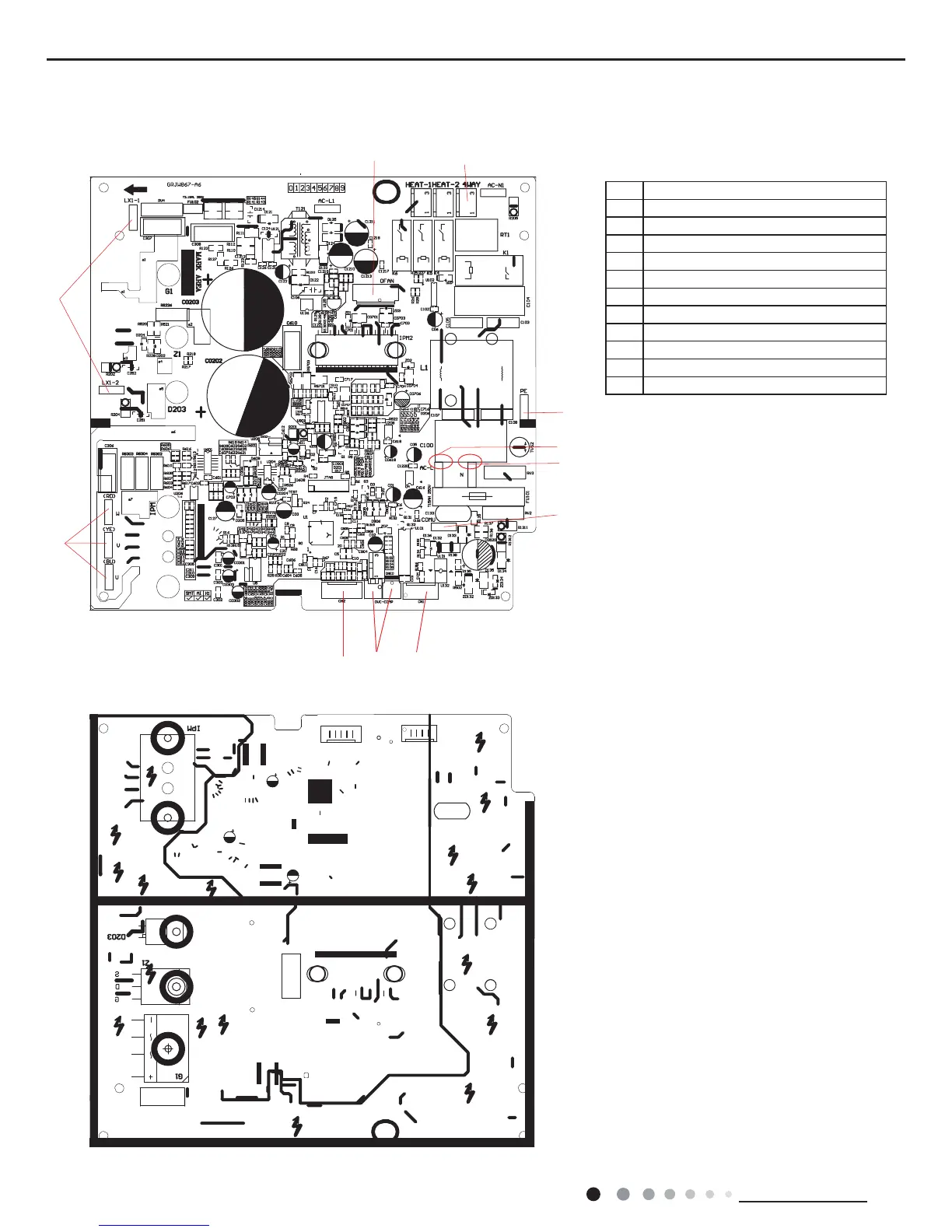

Outdoor Unit
● Top view
● Bottom view
No. Name
1 Interface of compressor wire
2 Interface of reactor
3 Fan terminal
4 Interface of 4-way valve
5 Terminal of electronic expansion valve
6 Grounding wire
7 Live wire
8 Neutral wire
9 Communication wire
10 Overload interface of compressor
11 Interface of temperature sensor
2
3
4
6
7
8
5
9
10
11
1

Gree GWH12QB-K6DNB8I Specifications

General

Power Supply	220-240V, 50Hz
Refrigerant	R32
Inverter	Yes
Operating Temperature (Cooling)	18-43 °C
Type	Split

Summary

Part I : Technical Information

1. Summary

Provides a brief overview of the manual's content.

2. Specifications

Details technical specifications of the air conditioner unit.

3. Outline Dimension Diagram

Shows the external dimensions of the indoor and outdoor units.

4. Refrigerant System Diagram

Illustrates the refrigerant flow and components in the system.

5. Electrical Part

Covers the electrical components and diagrams.

6. Function and Control

Explains the functions and controls of the air conditioner.

Part II : Installation and Maintenance

7. Notes for Installation and Maintenance

Important safety precautions and guidelines for installation and maintenance.

8. Installation

Step-by-step instructions and requirements for unit installation.

9. Maintenance

Covers procedures and analysis for maintaining the unit.

10. Exploded View and Parts List

Displays exploded diagrams and lists of parts for the unit.

11. Removal Procedure

Details the steps for removing internal components of the unit.

Appendix:

Contains supplementary information and reference data.
