Installation and Maintenance
Service Manual
a
b

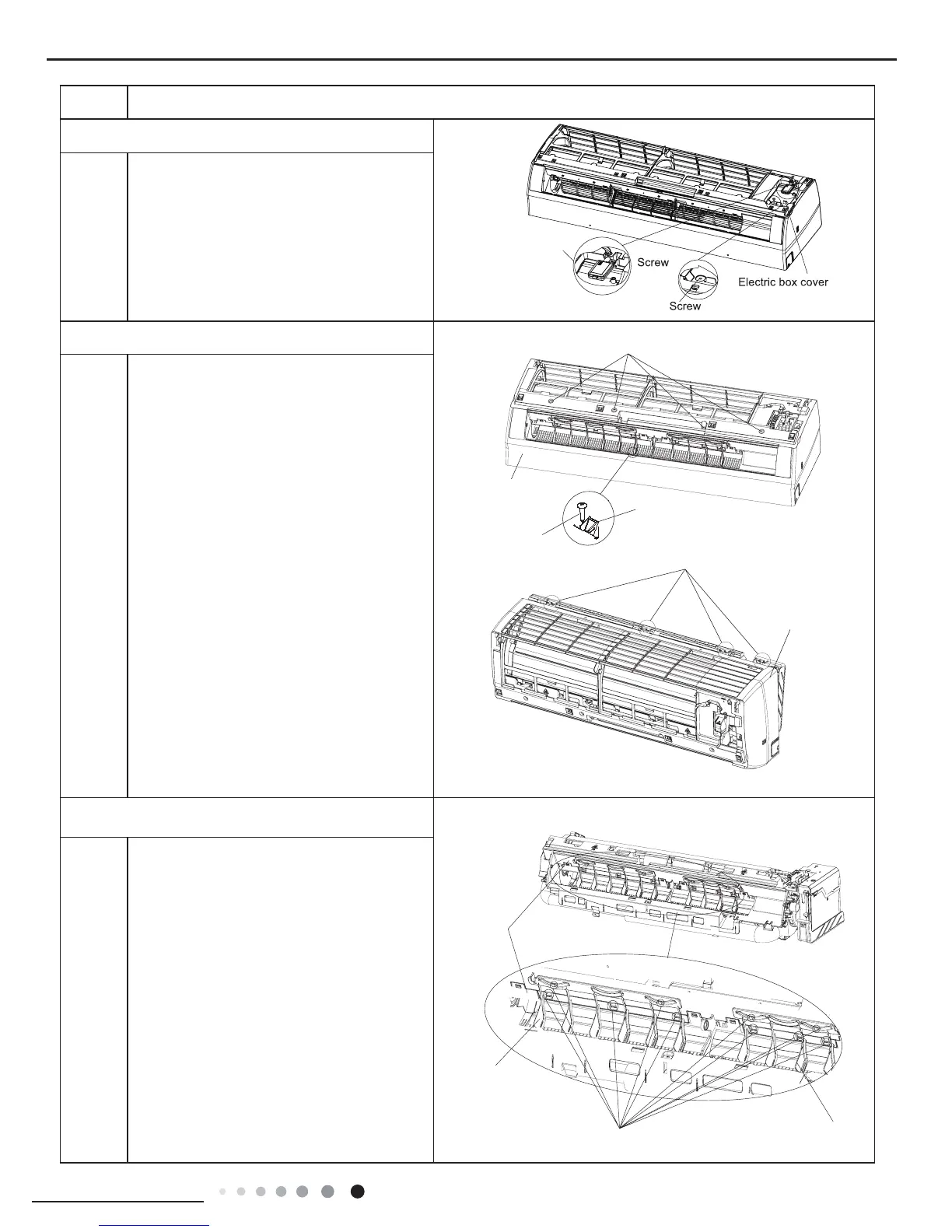

ProcedureStep
Remove the screws xing front case.
Note:
1.Open the screw caps before removing
the screws around the air outlet.
2.The quantity of screws fixing the front
case sub-assy is different for different
models.
Loosen the connection clasps between
vertical louver and bottom case to remove
vertical louver.
Loosen the connection clasps between
front case sub-assy and bottom case. Lift
up the front case sub-assy and take it out.
5. Remove front case sub-assy
6. Remove vertical louver
Front case
sub-assy
Front case
sub-assy
Clasp
Screw caps
Screws
Screw
Vertical
louver
Vertical
louver
Clasps
Bottom
case
Remove the screws xing detecting plate
and remove detecting plate(wi).
Remove the screws fixing electric box
cober2 and remove electric box2.
4. Remove detecting plate(wi) and electric box cover2
Detecting plate(WIFI)
2
