Gree GWHD(14)NK3DO User Manual

20
Technical Information
Service Manual
16 1234 5678
9
10
11
12
13
14
15

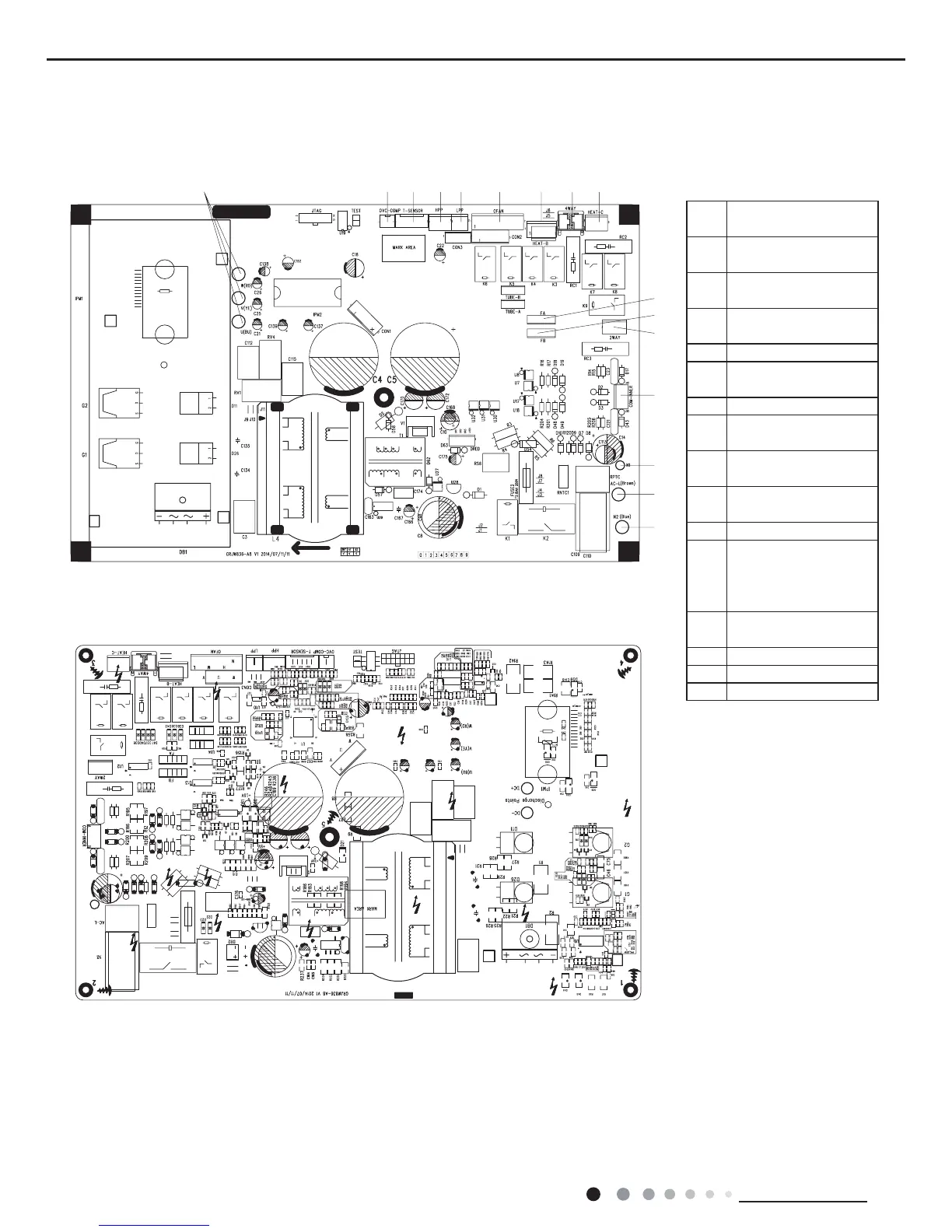

5.2 PCB Printed Diagram
● Top view
● Bottom view
14/18K
1
Overload protection
terminal of compressor
2
Terminal of temperature
sensor
3
High-pressure protection
terminal
4
Low-pressure protection
terminal
5 Terminal of outdoor fan
6
Electric heating terminal
of chassis
7 4-way valve terminal
8
Electric heating terminal
of compressor
9
Terminal of electronic
expansion valve A
10
Terminal of electronic
expansion valve B
11 2-way valve terminal
12
Terminal of
communication wire
between indoor unit and
outdoor unit
13
Terminal of neutral wire
for communication
14 Terminal of live wire
15 Terminal of neutral wire
16 Terminal of compressor
