Installation and Maintenance
Service Manual

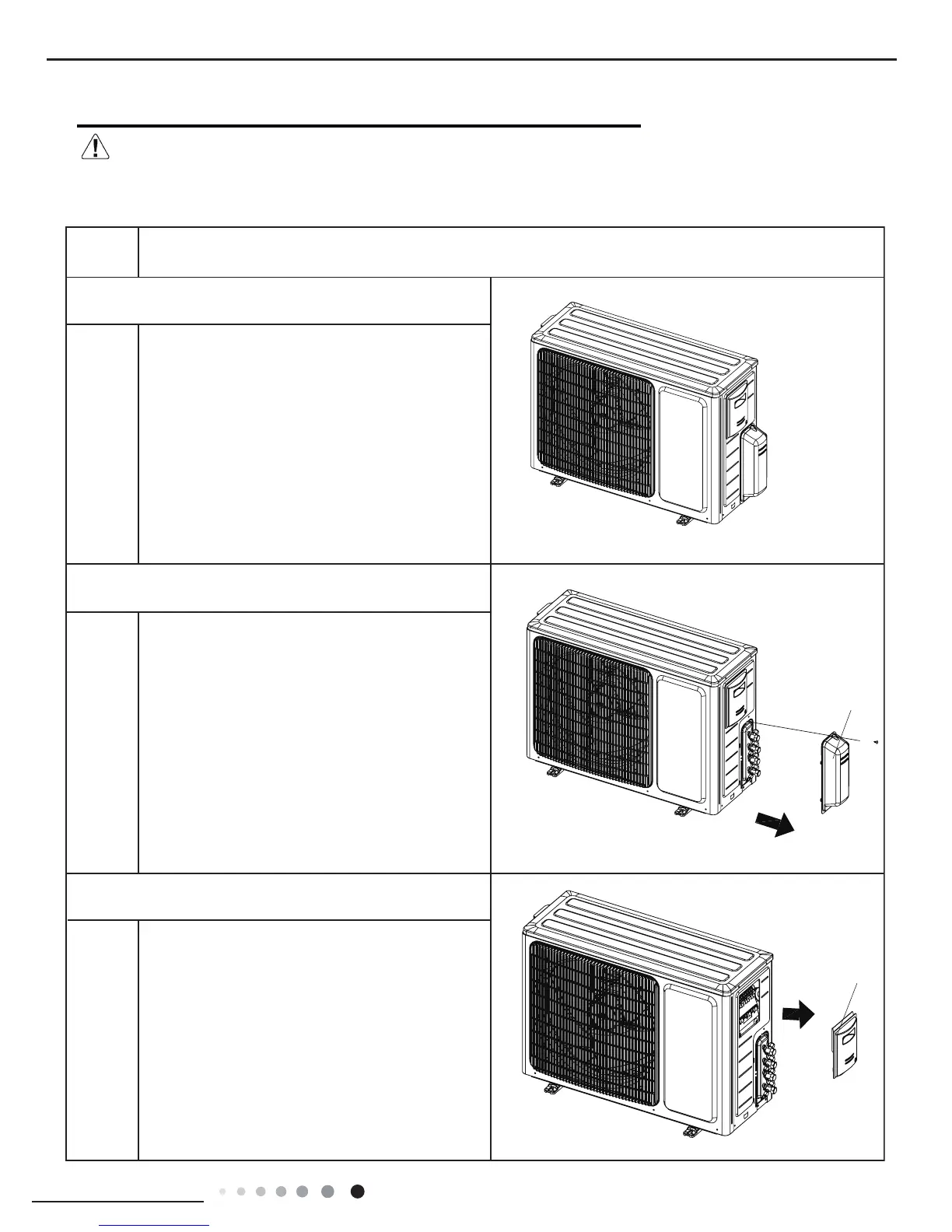

11. Removal Procedure
Warning: Be sure to wait for a minimum of 20 minutes after turning off all
power supplies and discharge the refrigerant completely before removal.
Step Ps rocedure
1. Before disassembly
Complete axonometric drawing.
2. Remove valve cover
Remove the connection screw fixing the valve
cover and then remove the valve cover.
3. Remove handle
Remove the connection screw fixing the handle
and the right side plate, and then remove the
handle.
valve cover
handle
NOTE:only grille has some differences
14K
To Next Page
