Bird Dual-Split type
Bird Dual-Split Type
Operation procedures/pictures

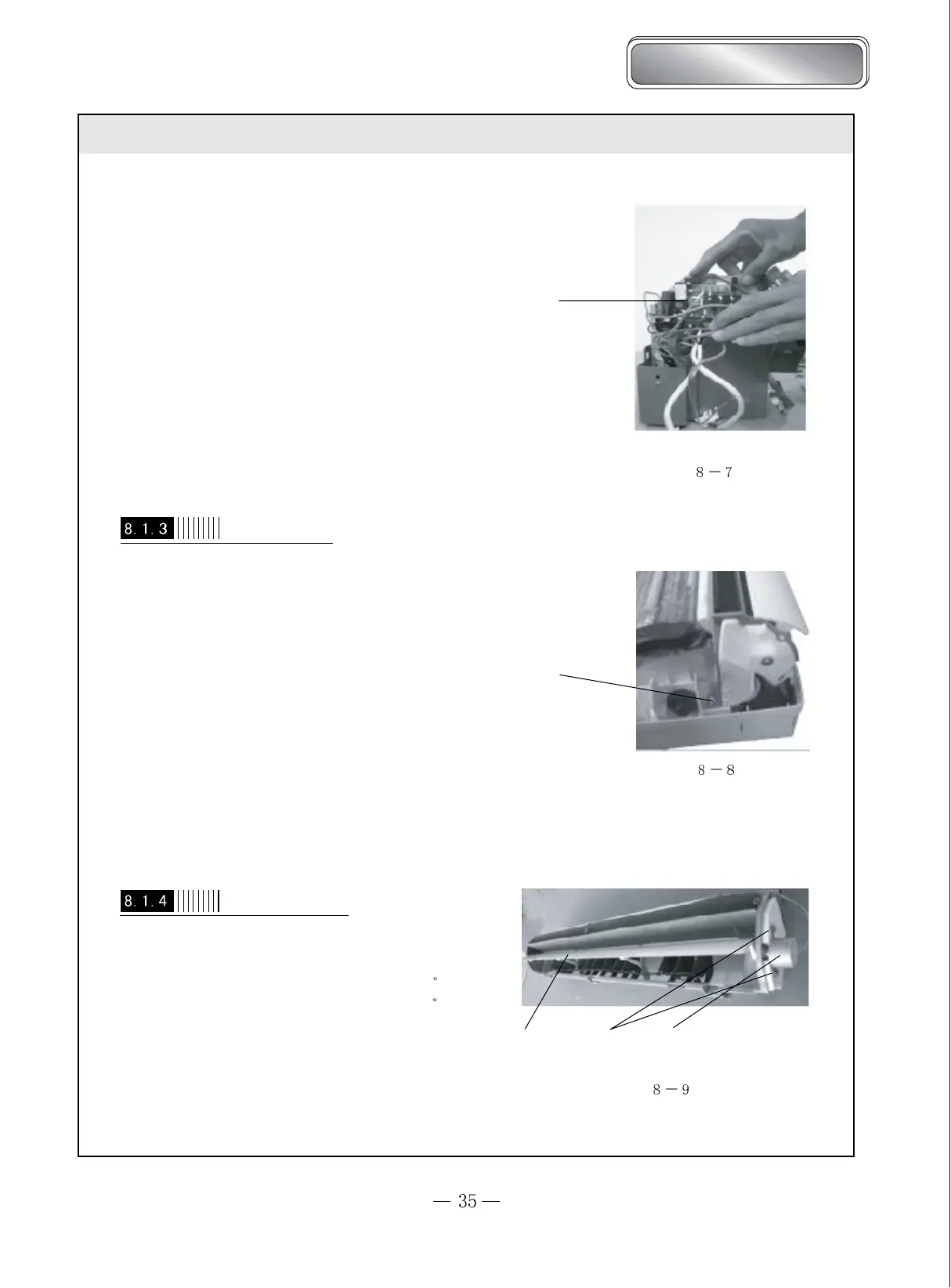

Take out the control panel with hands(As shown in Fig.8-7)
Control panel
Fig.
Fig.
Fig.
Clasp
Guide louver
Bolts
Stepping motor
Disassemble water-tray
Draw out the rear case clasp from the water tray clasp
forcely at full tilt, and take out the water-tray assy.
Because of the drainage pipe, so pay more attention.
(As shown in Fig.8-8)
Disassemble the water-tray assy
Press the drainage pipe joint tightly, and take off
the drainage pipe anticlockwise.
Disassemble the guide louver, bend it with your
fingers at full tilt, and pull out the guide louver.
Screw off 2pcs bolt which fix the stepping motor,
and take off the stepping motor.
