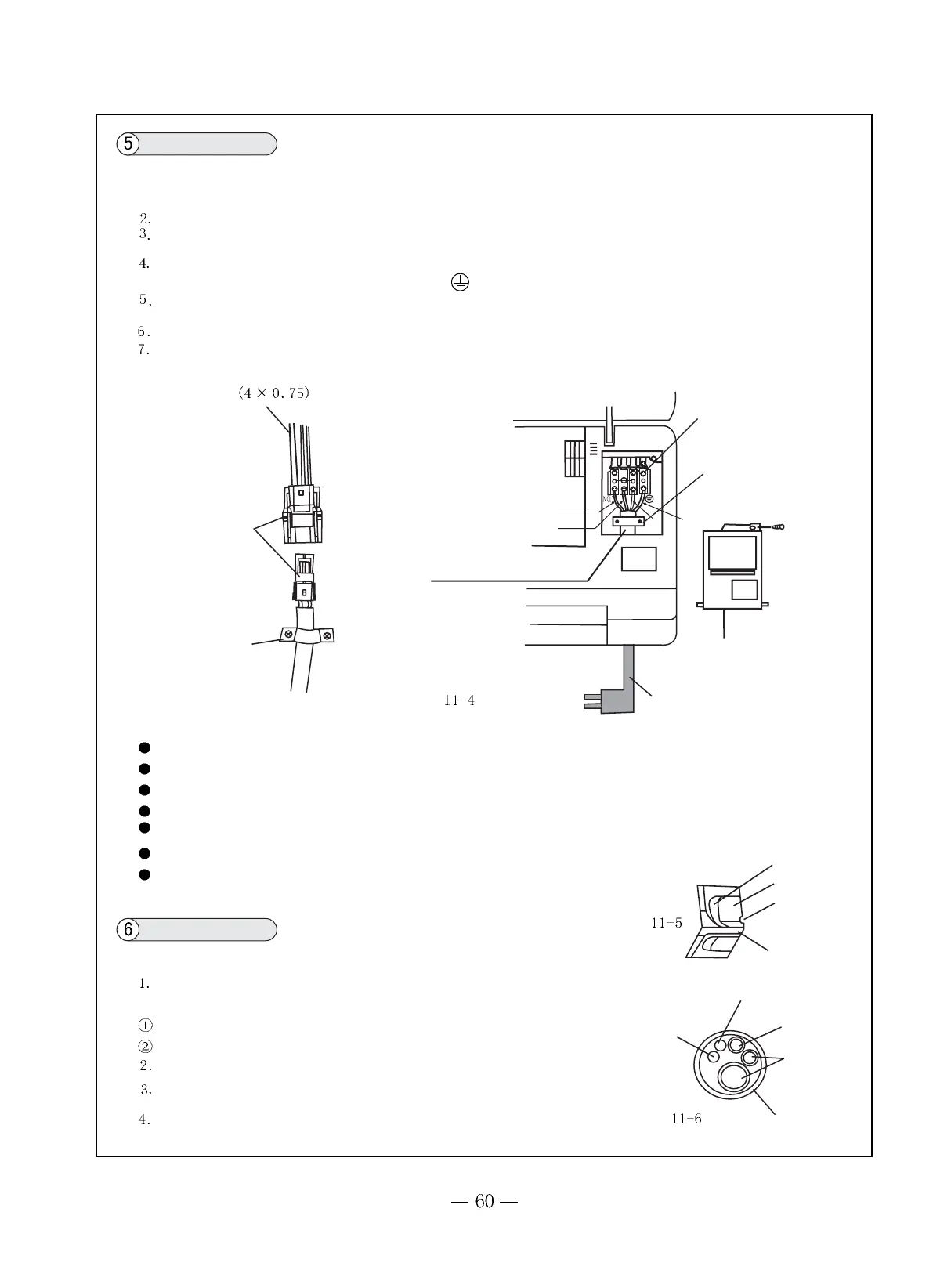

1.Open the surface panel upward.
Screw off the fixing screw of wiring cover.(As shown in Fig.11-4)
Route the power connection cord from the back of the indoor unit and pull it toward the front through
the wiring hole for connection.
Connect the blue wire of the power connection cord to the terminal “N (1)”, the red one to “2”, brown
one to "3", and the yellow-green one(earth wire) to" "( as shown in Fig.11-4);and use the wire clamp to fix the wire.
Electrical wiring
For the heat pump type, connect the control cord(4x0.75) to the indoor unit through the connector(see Fig.11-4),
and fix it with the wire clamp.
Reassemble the wire covering plate, and screw down the screws.
Recover the surface panel.
Control cord
Wire clamp
Connector
Fig.
Power cord
Cover plate of electric box
Wire clip
Terminal board
Blue
Red
Brown
Power connection cord
Yellow-green
Tailings 2
Tailings 1
Hole
Pipe holder
Fig.
Power connection cord
Drain hose
Connection pipe
Wrapping tape
Fig.
Control cord
(Heat pump type only)
NOTE:
All the electrical work must be done by qualified personel according to the local rules and this manual.
The rated voltage and the exclusive circuit must be used.
Electricity leakage protection switch must be installed.
Please adopt the qualified fuse.
Wiring work should conform to national standaard.
The diameter of power cord should be large enough. Use the exclusive wire to replace the damage wire.
I f the power connection cord of unit is damaged, it should be replaced by the professional who came from the
dealer or technical service organization, in order to avoid the harm.
Install the indoor unit
When routing the piping and wiring from the left or right side of the indoor unit,
cut off the tailings from the pipe holder in necessary(shown in Fig.11-5)
T hrough the tailings 1 when routing the wiring only;
Cut off the tailing 1 when routing both the wiring and piping.
Wrap the piping and wiring and pull them through the cut-off tailings hole
(shown in Fig.11-6).
Hang the mounting slots of the indoor unit on the upper tabs of the rear panel
and check if it is firm enough.
The height of the installed location should be 2.3m or more from the floor.
