Gree VERSATI SERIES User Manual

2
Air to Water Heat Pump
Service Manual- Versati Series
QSPEVDU
PRODUCT

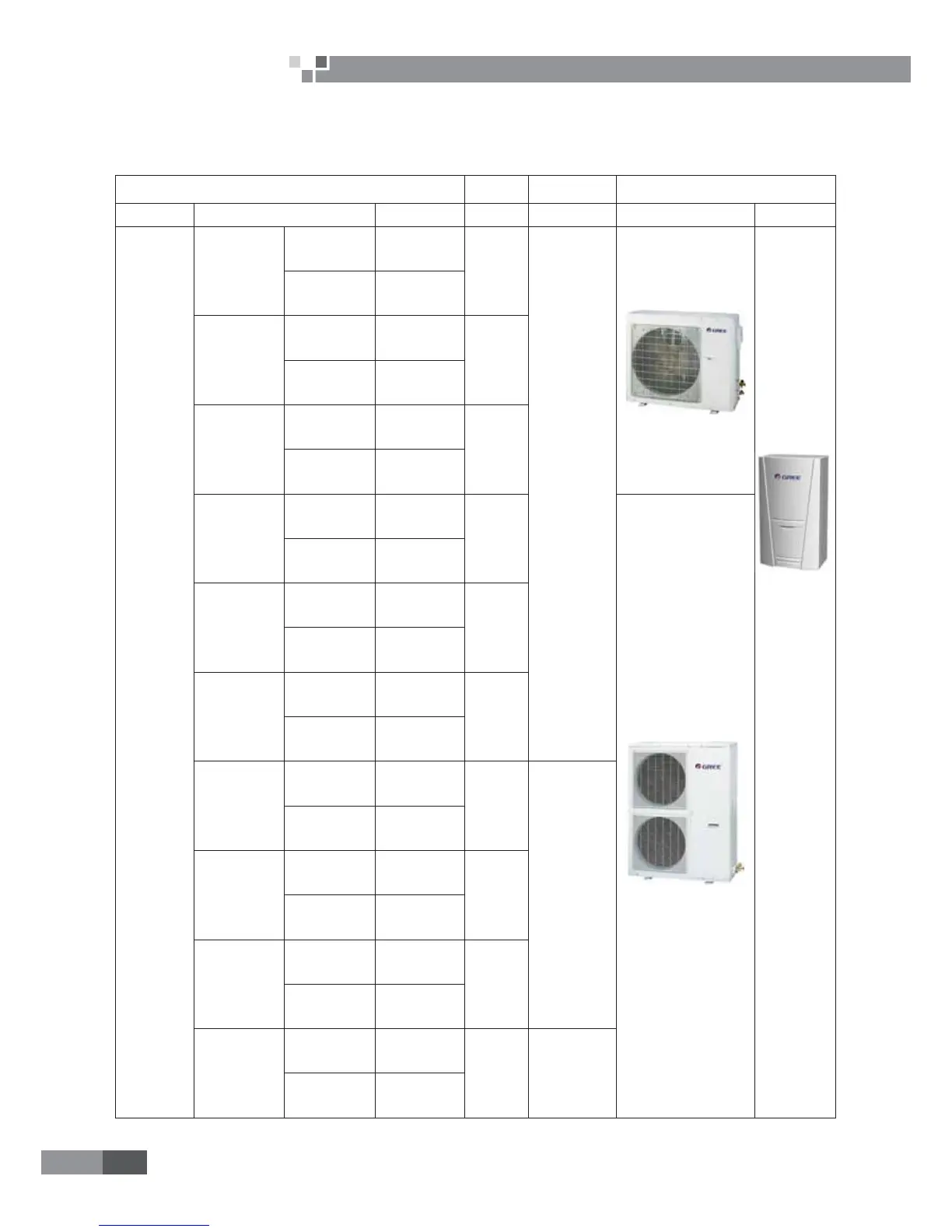

1 MODELS LIST
1.1 Main Unit
Model
Nominal
Capacity
Power Supply Appearance
Refrigerant Model Name Product Code kW V,Ph,Hz Outdoor Unit Indoor Unit
R410A
GRS-
CQ6.0Pd/
Na-K
GRS-
CQ6.0Pd/
Na-K(I)
ER010N1050
6.2
220-240V,
~,50Hz
GRS-
CQ6.0Pd/
Na-K(O)
ER010W1050
GRS-
CQ8.0Pd/
Na-K
GRS-
CQ8.0Pd/
Na-K(I)
ER010N1040
8.5
GRS-
CQ8.0Pd/
Na-K(O)
ER010W1040
GRS-
CQ10Pd/Na-K
GRS-
CQ10Pd/
Na-K(I)
ER010N1000
10
GRS-
CQ10Pd/
Na-K(O)
ER010W1000
GRS-
CQ12Pd/Na-K
GRS-
CQ12Pd/
Na-K(I)
ER010N1020
12
GRS-
CQ12Pd/
Na-K(O)
ER010W1020
GRS-
CQ14Pd/Na-K
GRS-
CQ14Pd/
Na-K(I)
ER010N1030
13.5
GRS-
CQ14Pd/
Na-K(O)
ER010W1030
GRS-
CQ16Pd/Na-K
GRS-
CQ16Pd/
Na-K(I)
ER010N1010
16
GRS-
CQ16Pd/
Na-K(O)
ER010W1010
GRS-
CQ12Pd/
Na-M
GRS-
CQ12Pd/
Na-M(I)
ER010N1060
12
380-415V,
3N~,50Hz
GRS-
CQ12Pd/
Na-M(O)
ER010W1060
GRS-
CQ14Pd/
Na-M
GRS-
CQ14Pd/
Na-M(I)
ER010N1070
14
GRS-
CQ14Pd/
Na-M(O)
ER010W1070
GRS-
CQ16Pd/
Na-M
GRS-
CQ16Pd/
Na-M(I)
ER010N1080
15
GRS-
CQ16Pd/
Na-M(O)
ER010W1080
GRS-
CQ16Pd/
Na-H
GRS-
CQ16Pd/
Na-H(I)
ER010N1090
15
380V,3N~,
60Hz
GRS-
CQ16Pd/
Na-H(O)
ER010W1090
Note:1Ton =12000Btu/h = 3.517kW

Gree VERSATI SERIES Specifications

General

Refrigerant	R410A
Type	Air to Water
Power Supply	220-240V, 50Hz
Heating Capacity Range	4kW - 16kW
Water Outlet Temperature (Heating)	55°C
Application	Underfloor heating, radiators, fan coils
Operating Temperature Range (Cooling)	10°C to 46°C
Noise Level	45-55 dB(A)
