Air to Water Heat Pump
Service Manual- Versati Series
QSPEVDU

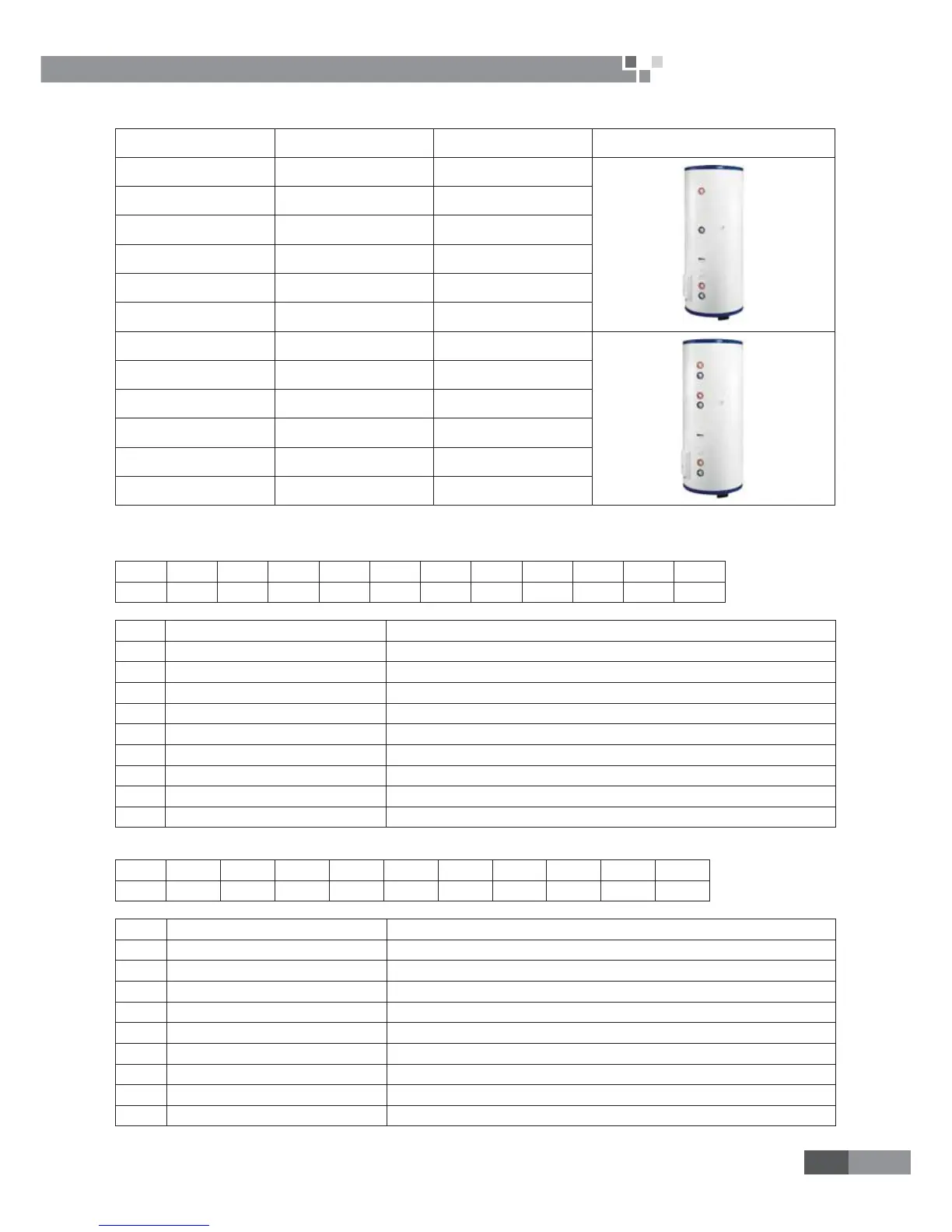

1.2 Water Tank
Model Product Code Nominal Cubage(L) Appearance
SXVD200LCJ/A-K ER20000160 200
SXVD200LCJ/A-M ER20000240 200
SXVD200LCJ/A-H ER20000280 200
SXVD300LCJ/A-K ER20000180 300
SXVD300LCJ/A-M ER20000250 300
SXVD300LCJ/A-H ER20000300 300
SXVD200LCJ2/A-K ER20000170 200
SXVD200LCJ2/A-M ER20000260 200
SXVD200LCJ2/A-H ER20000290 200
SXVD300LCJ2/A-K ER20000190 300
SXVD300LCJ2/A-M ER20000270 300
SXVD300LCJ2/A-H ER20000310 300
2 NOMENCLATURE
2.1 Main Unit
G RS - C Q 16 Pd / Na - K (I)
12 3456 7 89
NO. Description Options
1 GREE Air to water heat pump -
2 Heat Pump Water Heater -
3 Heating Mode Circulating
4 Multi Heat pump -
5 Nominal Heating capacity 16=16 kW
6 DC Inverter -
7 Refrigerant Type Na-R410A
8 Power Supply K=220-240V,~,50Hz; M=380-415V,3N~,50Hz; H=380V,3N~,60Hz
9 Indoor Unit I-Indoor unit, O-outdoor unit
2.2 Water Tank
SX V D 200 L C J2 / A - K
1234567 8 9
NO. Description Options
1 Tank Used in Heat Pump /
2 Heat Pump Water Tank for GMV Units /
3 Electric Heater /
4 Volume of Tank /
5 Stand /
6 Pressure-Resistant /
7 Static Heating with Dual Coiled Pipe J=Static Heating with single Coiled Pipe ; J2=Static Heating with Dual Coiled Pipe
8 Design Sequence Number
9 Power Supply K=220-240V,~,50Hz; M=380-415V,3N~,50Hz; H=380V,3N~,60Hz

Gree VERSATI SERIES Specifications

General

Refrigerant	R410A
Type	Air to Water
Power Supply	220-240V, 50Hz
Heating Capacity Range	4kW - 16kW
Water Outlet Temperature (Heating)	55°C
Application	Underfloor heating, radiators, fan coils
Operating Temperature Range (Cooling)	10°C to 46°C
Noise Level	45-55 dB(A)
