Gree XE7A-24/H User Manual
4
of 1
of 1 rating
75 pages
Give review
Manual
Specs
To Next Page
To Next Page
To Previous Page
To Previous Page
Loading...
Owner
’
s
Manual
7
No.
Symbols
Instructions
32
Cooling mode.
33
It shows the value
of
temperature, and dis
plays
the current type of
value
(In case the wired
controller is controlling a Fresh Air Indoor Unit,
then
it will display FAP).
NOTE:
When wired controller is con
nected with different indoor units,
some
functions will be different.
4
Installati
on and Commissioning
Unit:
mm

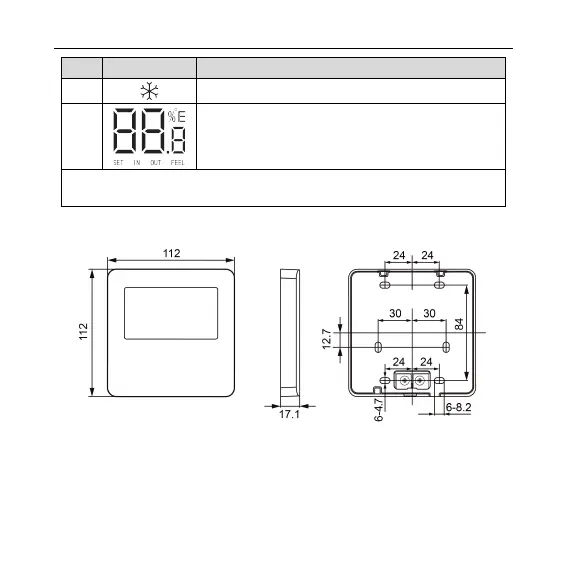

Fig. 4.1 Dimension of W
ired Controller
11
13
Table of Contents
1 Safety Notices (Please be sure to abide them)
6
2 Operation Notices
6
3 Display
8
3.1 LCD of Wired Controller
9
3.2 LCD Display Instruction
9
4 Installation and Commissioning
12
4.1 Instruction of wired controller
13
4.1.1 Requirements for model selection of communication wire
13
4.1.2 Requirements for Installation
14
4.1.3 Requirements for Wired Connection
15
4.1.4 Installation
19
4.1.5 Disassembly
20
4.2 Commissioning
21
4.2.1 Set Master Indoor Unit
21
4.2.2 Parameter Enquiry
21
4.2.3 Parameter Setting
28
5 Operation Instructions
38
5.1 ON/OFF
38
5.2 Mode Setting
38
5.3 Temperature Setting
39
5.4 Fan Setting
40
5.5 Timer Setting
41
5.5.1 General Timer
41
5.5.2 Clock Setting
42
5.5.3 Clock Timer
42
5.6 Swing Setting
45
5.7 Quiet Setting
45
5.8 Sleep Setting
46
5.9 Air Setting*
47
5.10 Save Setting
48
5.11 Filter Clean Reminder Setting
50
5.12 X-FAN Setting
52
5.13 Health Setting*
53
5.14 I-DEMAND Setting*
53
5.15 Absence Setting
53
5.16 Remote Shield Function
54
5.17 Child Lock Function
54
5.18 Gate-Control Function
54
5.19 Inquiry of Indoor Temperature with One Button
55
5.20 Auto Clean Function
55
5.21 WiFi Function Setting
57
6 Error Display
58
6.1 Table of Display Codes for VRF unit
59
6.1.1 Table of Error Codes for Outdoor Unit
59
6.1.2 Table of Error Codes for Indoor Unit
62
6.1.3 Table of Debugging Codes
65
6.1.4 Table of Status Codes
67
6.2 Table of Display Codes for U-match unit
69
6.2.1 Table of Error Codes of Outdoor Unit
69
6.2.2 Table of Error Codes of Indoor Unit
72
6.2.3 Table of Status Codes
74
