Owner’s Manual
15
(1) Before installation, please cut off the power supply of
indoor unit, it is not allowed to operate with power supply;
(2) Pull out the 2-core twisted pair inside the installation hole
in the wall, and thread the wire through the hole in the
back of soleplate of wired controller;
(3) Stick the soleplate of wired controller on the wall, and use
Self-tapping Screw ST3.9×25 MA or screw M4×25 to fix
the soleplate with the installation hole of wall;
(4) Connect the 2-core twisted pair to wiring terminal H1 and
H2, and then tighten the screw;
(5) Arrange the wires in the back of panel, and then buckle
the panel of wired controller with the soleplate of wired
controller.

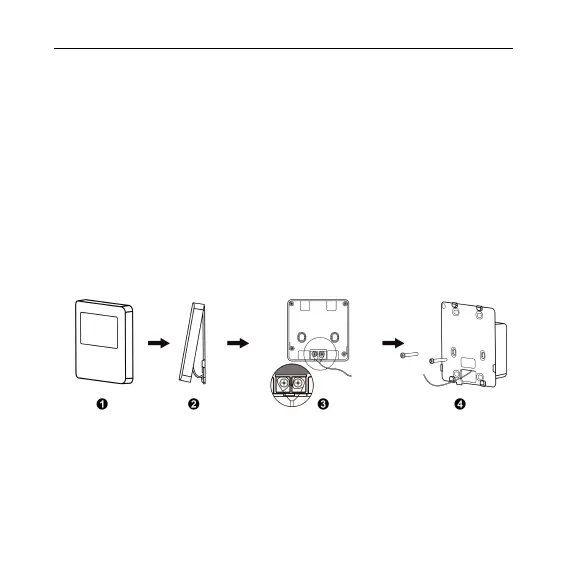

4.1.5 Disassembly
Fig. 4.11 Disassembly of wired controller
