Grohe Grohsafe User Manual

8
Installation

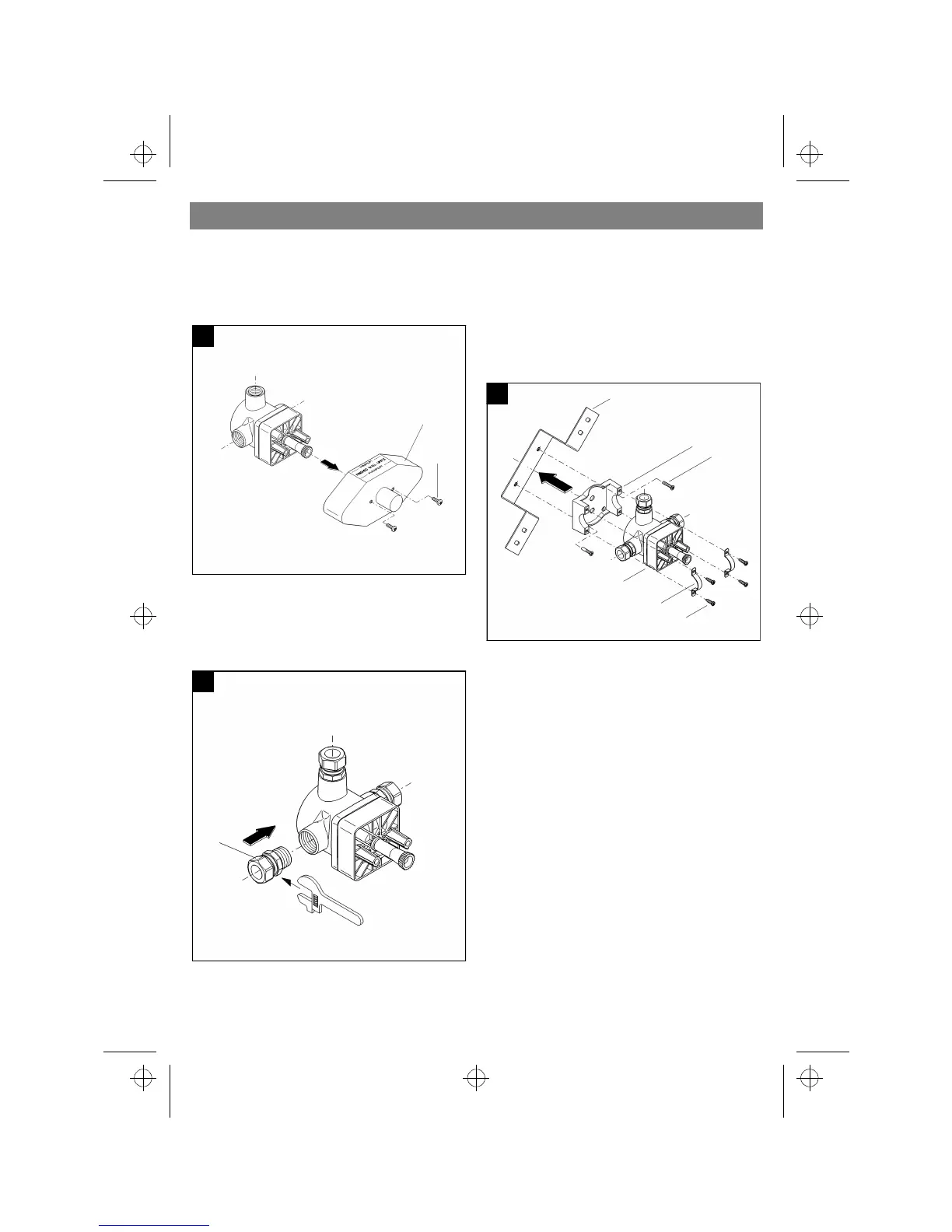

Preassemble Valve
1.Remove the two screws (B1) from the
fitting template (B), then remove the
template, see Fig. [4].
2.Install concealed pressure balance val-
ve in wall and thread the compression
fitting (C) into the valve body by use of
an additional sealing compound, see
Fig. [5].
2.Place the backplate (D) onto the mixer
body (E). Make sure that the locating pins
on the valve body slot into the apertures
on the back plate, see Fig. [6].
3.Screw backplate (D) to bracket (A) with
fixing screws (D1).
4.Fix the valve body (E) to the backplate (D)
with clips (F) and screws (F1).
Do not use excessive force to tighten the
screws (F1).
5.Align the valve with the bracket horizon-
tally, vertically and parallel to the wall by
using a spirit level.
4
B
B1
C
5
6
E
A
F
F1
D
D1
950632.book : i95063gb.fm Seite 8 Mittwoch, Oktober 4, 2000 7:42 AM

Grohe Grohsafe Specifications

General

Brand	Grohe
Model	Grohsafe
Category	Control Unit
Language	English
