1. Connect the AC breaker of the inverter.
2.Turn on the dc switch, and the inverter will start automatically when the input voltage
is higher than 70 V.
8.1 Start-Up the inverter
8.2 Shut down the Inverter
Shut down the inverter step:
1. Disconect the line circuit breaker from single-phases grid and prevent it from being
reactivated.
2. Turn off the inverter's DC switch.
3. Turn off the BAT input switch of the Bidirectional DC/DC Box.
4. Check the inverter operating status.
5. Waiting until LED, OLED have go out, the inverter is shut down.
Do not disconnect the PV&BAT connectors under load.
DANGER
Start-Up and shut down the inverter 8

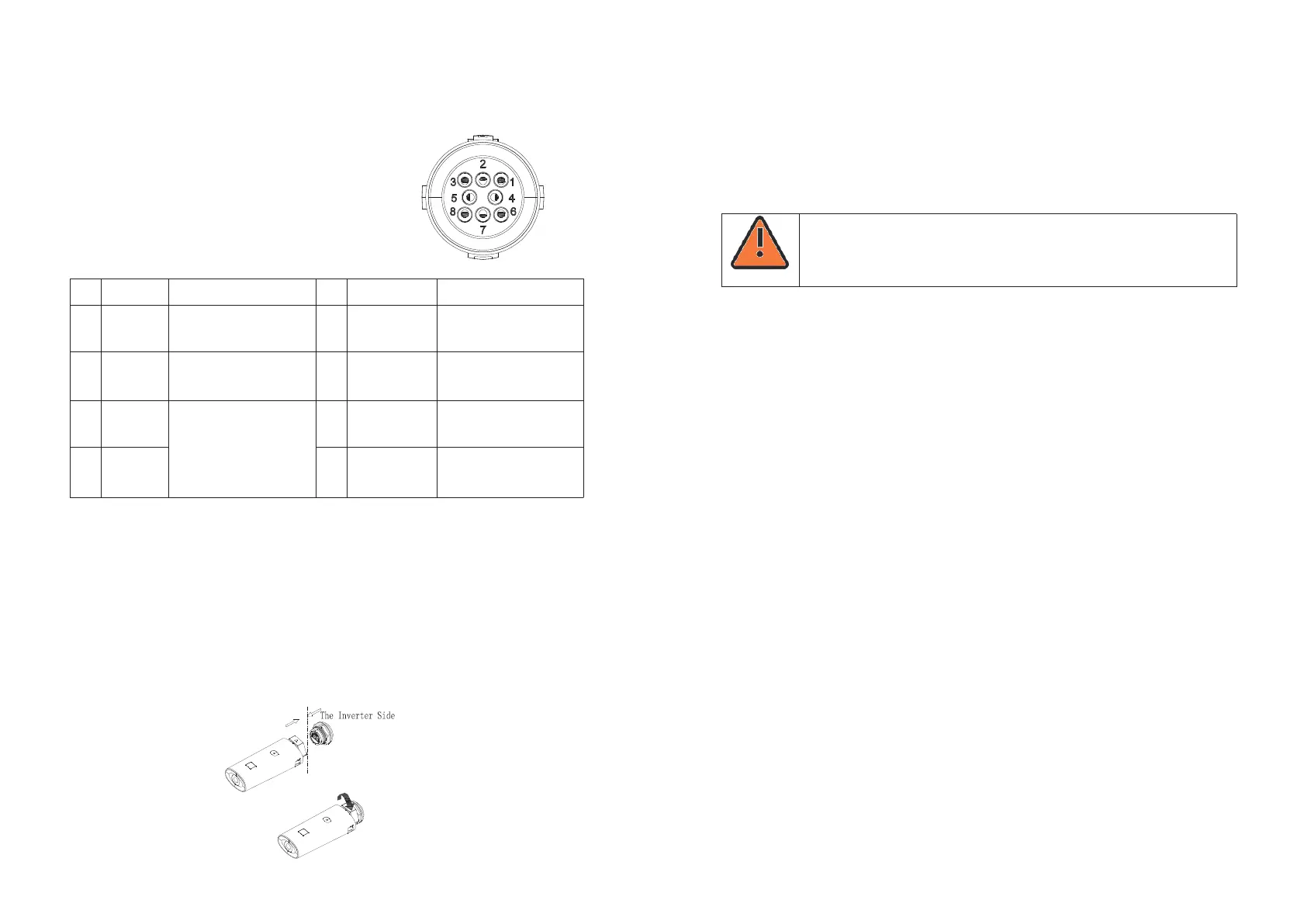

7.4 Communication interfaces
7.4.1 SYS COM Port
7.4.2 COM Port
The -XH/XE series inverter provides a 8 pin COM Port connector,.The COM Port
connector signal distribution and function, please refer to section 6.9.
7.4.3 USB-A
USB-A port is mainly for connecting monitor or firmware updage：
Through USB connection,we can connect external optional monitor ,for example :Shine
WIFI-X,Shine 4G-X, Shine LAN-X,ect.
And also you can quickly update the software by U disk.
We can monitor as below:
Make sure the △ on the front side, then insert the monitor,fasten the screw.
No.
Definition
Enable-
485A2
Enable+
485B2
1
2
3
4
Description
Connect BDC enable
signal port negative
Connect Min Shine
Bus or Backup interface
box
Connect BDC enable
signal port positive
6
5
7
8
Connect smart meter
RS485A or External CT
signal positive
Connect smart meter
RS485B or External CT
signal negative
Connect BDC
communication
RS485B or CANL
Connect BDC
communication
RS485A or CANH
BAT-B
BAT-A
AntiReFlux_A
AntiReFlux_B
No.
Definition
Description
The -XH/XE series inverter provides a 8 pin SYS COM
Port connector,.The SYS COM Port connector signal
distribution and function are shown in the following
table:
39
40
