2.3 Resistance values for cables
The resistance in the power supply cable depends on the
cable diameter.
For further information see the cable dimensioning tool
included on the USB-stick delivered with the pump.
2.4 Cable connection

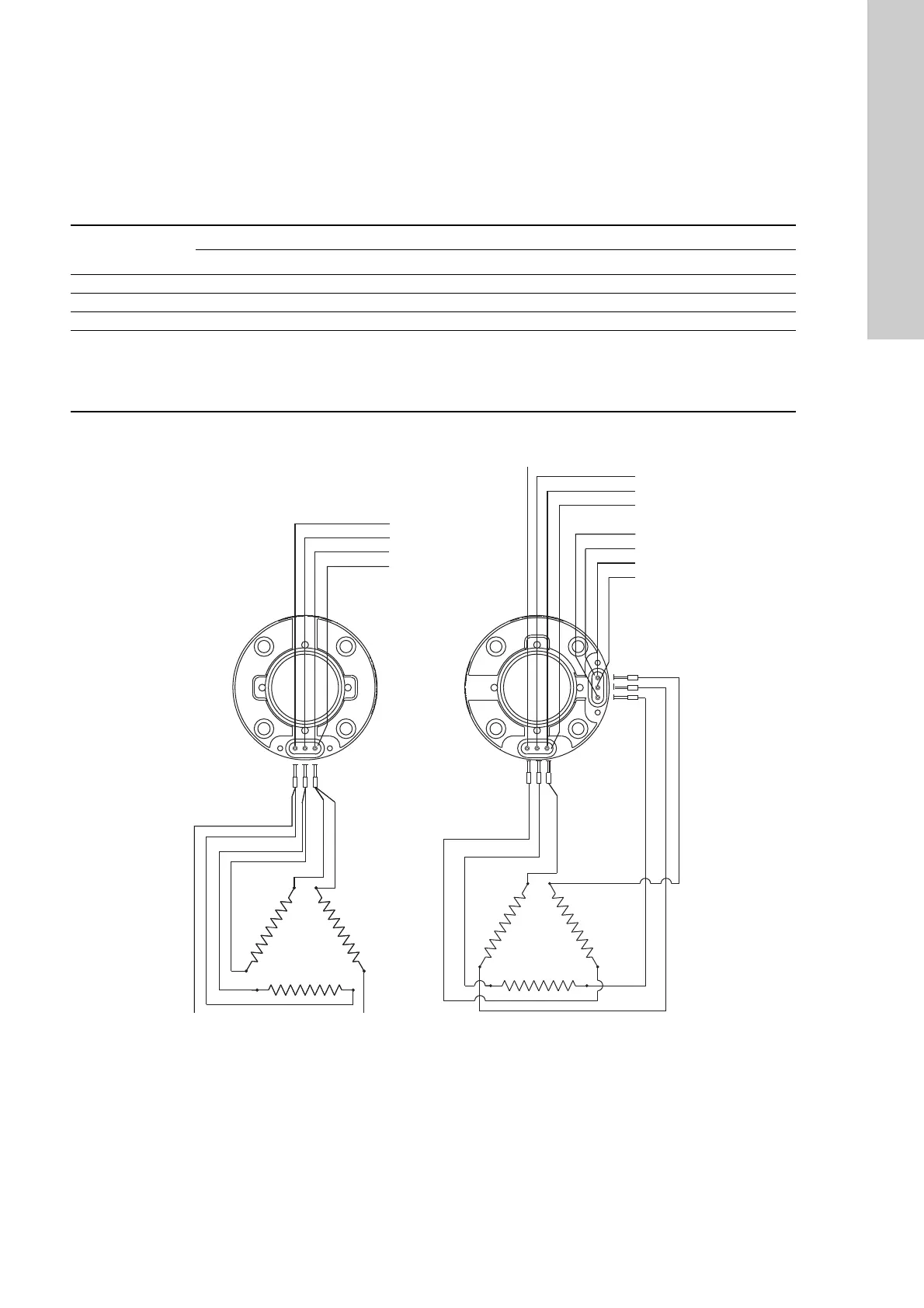

Fig. 19 Wiring diagrams
Pos.
Flat cable Single leads
4-wire 3-wire 4-wire
1 Brown Red Red
2 Black Yellow Yellow
3Grey Black Black
4 - Green
DOL SD
TM06 0597 0514
u
v
wu
v
w
1
2
3
4
1
2
2
3
3
4
4
