4.2 Twin-head pumps with relay module
The two terminal boxes are connected via a four-
core cable.

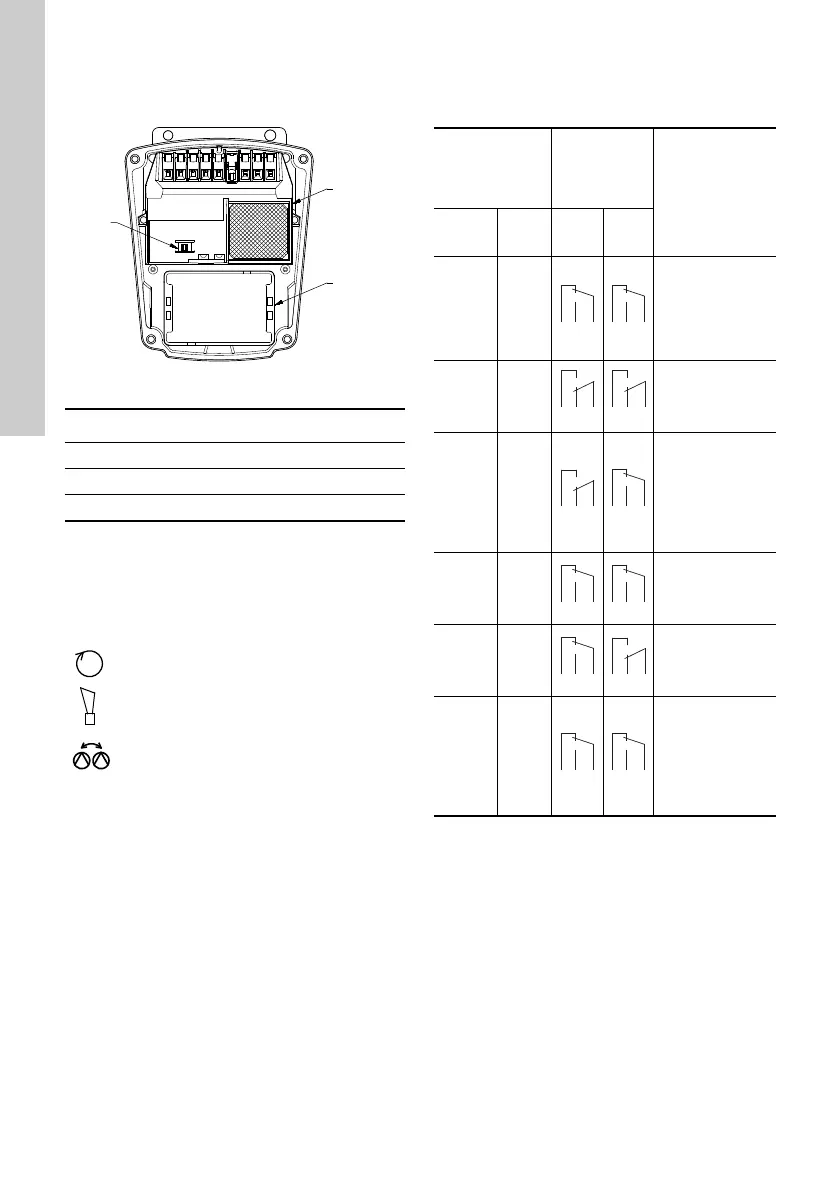

Fig. 2 Terminal box with relay module
The relay module has a signal output for the
connection of a transmitter for external operating or
fault indication or for the control of the alternating
operation of pump 1 and 2.
By means of a selector switch the signal output can
be set to activation during:
All pumps with relay module incorporate a green and
a red indicator light. The function of the two indicator
lights and the signal output is shown in the following
table.
Three operating modes are available:
• Alternating operation (factory setting).
The pumps operate alternately as duty and
standby pump.
• Standby operation. One pump operates
constantly as duty pump and the other constantly
as standby pump.
• Single-pump operation. The pumps operate
independently of each other.
Note: If the pumps are to run simultaneously,
they must be set to the same speed.
Otherwise the non-return flap will close off the
pump running at the lowest speed.
TM02 6328 0203
Pos. Description
1 Switch for signal output
2 Relay module
3 Speed switch
Operation: The output is activated when
the pump is operating.
Fault: The output is activated in case of
fault.
Alternating operation: Use this setting
when the pumps are to operate alternately
as duty and standby pump.
Indicator lights
Signal
output
activated
during Description
Green Red
Oper-
ation
Fault
Off Off
The pump has
been stopped.
The power
supply has been
switched off or
phase missing.
On Off
The pump is
operating.
On On
Three-phase
pumps only:
The pump is
operating, but
the direction of
rotation is
wrong.
Off On
The pump has
been cut out by
the thermal
overload switch.
Flashes Off
The pump has
been stopped by
an external on/
off switch.
Flashes On
The pump is or
has been cut out
by the thermal
overload switch,
and the external
on/off switch is
switched off.
12 3
12 3
