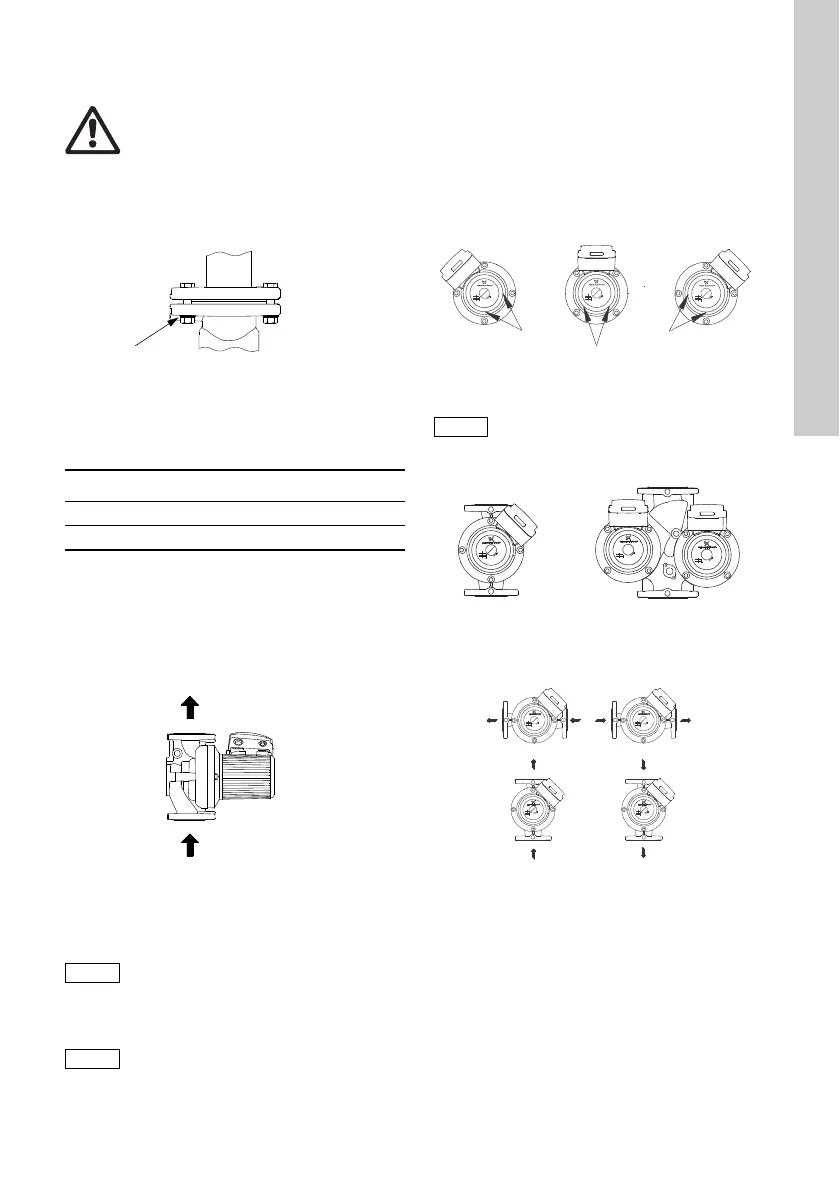

5. Installation
When installing pumps, types UPS(D) 32-xx, 40-xx,
50-xx and 65-xx, with oval bolt holes in the pump
flange, washers must be used as shown in fig. 3.
Fig. 3 Position of washers for oval bolt holes
5.1 Tightening torque for bolt threads
We recommend these tightening torques for screws
used in flanged connections:
The pump must be installed with the motor shaft in
horizontal position. See fig. 4.
5.2 Flange forces and moments
For maximum permissible forces and moments from
the pipe connections acting on the pump flanges,
see fig. 21, page 331.
Fig. 4 Horizontal motor shaft
Arrows on the pump housing indicate the liquid flow
direction through the pump.
The automatic air vent is not supplied with the pump.
5.3 Terminal box positions
At the bottom close to the pump housing, the stator
housing has two drain holes (5 x 10 mm) to allow
condensed water to escape. The drain holes must
point downwards. See the arrows in fig. 5.
The air vent holes in the stator housing must not be
considered as drain holes.
Possible terminal box positions for single-head
pumps are shown in fig. 5. The positions apply to
mounting in both vertical and horizontal pipes.
Fig. 5 Terminal box positions, single-head
pumps.
For standard terminal box positions, see fig. 6.
Fig. 6 Standard positions
Possible flow directions for single-head pumps,
see fig. 7.
Fig. 7 Flow directions, single-head pumps.
Warning
The pump must be positioned so that
persons cannot accidentally come into
contact with the hot surfaces of the
pump.
TM01 0683 1997
Screw dimension Torque
M12 27 Nm
M16 66 Nm
TM02 1404 1101
Twin-head pumps mounted in
horizontal pipes must be fitted with
an automatic air vent in the upper part
of the pump housing. See fig. 8.
The technical data in section 10. must
be observed.
TM05 1965 4111
The terminal box must only be turned
to the positions in fig. 5.
TM02 1400 2701TM04 5891 4409
